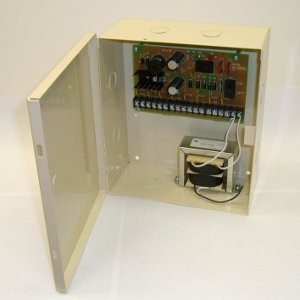

12V 10A 9CH 120W ptc fuse cctv power supply cctv camera switch power supply

12V 10A 9CH 120W ptc fuse cctv power supply cctv camera switch power supply

  • 12V 10A 9CH 120W ptc fuse cctv power supply cctv camera switch power supply
12V 10A 9CH 120W ptc fuse cctv power supply cctv camera switch power supply
Product Details:
Place of Origin: China
Brand Name: HIC
Certification: ISO
Output Power: 101 - 200W
Output Type: Single
Input Voltage: 100~240
Output Voltage: 12v /24v
Output Frequency: 50~60HZ
Output Current: 5a
Material: Plastic / Metal
Delivery Method: EMS/DHL/UPS/TNT/FEDEX
MTBF: More than 100,000hours
Payment Method: L/C/T/T ,Western Union /MoneyGram
Color: Block / White
DC Tip: Oval tip
AC Type: US/UK/AU/EU/CH etc.
Model Label: Customize
Certificate: CCC,FCC,ROHS,UL,GS
Efficiency: More than 88%
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: According to customer’s requirment
Delivery Time: 7-15days
Payment Terms: L/C T/T,Paypal
Supply Ability: 500,000 Piece/Pieces per Month and more
Contact Now
Detailed Product Description
High Light:

Switch Power Supply

,

Switching Power Supply


1:Product name :cctv camera switch power supply
2:Input :100v ~260v
3:Output : 120w~360w
4:Material :Metal

12V 10A 9CH 120W ptc fuse cctv power supply cctv camera switch power supply

Feature:

1. Power ON/OFF switch; Spare fuses included
2. Stable performance, high efficiency

3.AC power LED indicator
4. Unit maintains camera synchronization
5. Easy installation saves time and eliminates costly labor

Input/Output Specifications

Input Voltage

AC90-240V,50/60Hz

Total Output Power

120W

Output Voltage

12VDC

Output Current

10 A (1120mA/output,9 channels for 9 sets security cameras)

Fuse Type

Glass fuse

Fuse Rate

0.5Amps/250VAC

Protection

General Protection

each output has individual fuse and LED indicator, when problem occurs, only affect the individual output, other outputs still working;

Circuit Short Protection

when short condition occurs, individual fuse will open the circuit, when condition removed, replacing another new fuse will back to close;

High Voltage Protection

when high voltage occurs, the surge protection will be hit through to protect the connected device;

Over Current Protection

when over current occurs, the power supply will automatically switch to self-protection status, when condition removed, then switch back to normal.

Load Regulation

±5%

General Specifications

Operating Temperature

0°C~40°C

Storage Temperature

-20°C~+85°C

Operating Relative Humidity

5%~95%RH

Dimension/Weight

235*205*50mm/1.6kg

Application

1.Digital and electronic products
2.LED, CCTV supervisory system
3.CCTV monitoring camera
