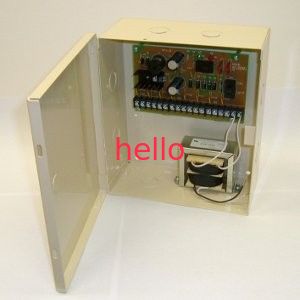

Switch Power Supply

Feature:

1. Power ON/OFF switch; Spare fuses included
2. Stable performance, high efficiency

3.AC power LED indicator
4. Unit maintains camera synchronization
5. Easy installation saves time and eliminates costly labor

Input/Output Specifications

Input Voltage

AC90-240V,50/60Hz

Total Output Power

120W

Output Voltage

12VDC

Output Current

10 A (1120mA/output,9 channels for 9 sets security cameras)

Fuse Type

Glass fuse

Fuse Rate

0.5Amps/250VAC

Protection

General Protection

each output has individual fuse and LED indicator, when problem occurs, only affect the individual output, other outputs still working;

Circuit Short Protection

when short condition occurs, individual fuse will open the circuit, when condition removed, replacing another new fuse will back to close;

High Voltage Protection

when high voltage occurs, the surge protection will be hit through to protect the connected device;

Over Current Protection

when over current occurs, the power supply will automatically switch to self-protection status, when condition removed, then switch back to normal.

Load Regulation

±5%

General Specifications

Operating Temperature

0°C~40°C

Storage Temperature

-20°C~+85°C

Operating Relative Humidity

5%~95%RH

Dimension/Weight

235*205*50mm/1.6kg

Application

1.Digital and electronic products
2.LED, CCTV supervisory system
3.CCTV monitoring camera
