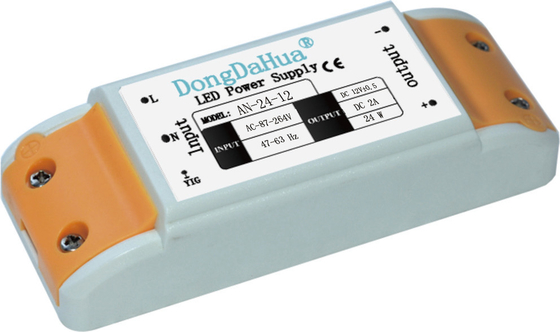

high efficiency Shenzhen manufactory LED strip DC12V/24V CE RoHS plastic power supply

high efficiency Shenzhen manufactory LED strip DC12V/24V CE RoHS plastic power supply

  • high efficiency Shenzhen manufactory LED strip DC12V/24V CE RoHS plastic power supply
high efficiency Shenzhen manufactory LED strip DC12V/24V CE RoHS plastic power supply
Product Details:
Place of Origin: Shenzhen China
Brand Name: DongDaHua
Certification: CE & ROSH
Model Number: AN-24-12
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: Negotiated
Packaging Details: white box/color box;exporting carton, or can be based on your requests
Delivery Time: 7 days on average
Payment Terms: T/T & L/C
Supply Ability: 3000 Pieces/Day
Contact Now
Detailed Product Description
PCB: Glass Fiber Board IC: New Material
Short Circuit Protection: YES Overload Protection: YES
Cooling: Natural Without Fan MOQ: Negotiable
OEM: Available
High Light:

LED Strip Lighting

,

Waterproof LED Strip Lights



Plastic Constant Voltage Led Power Supply Dc 24v / 12v 2A Power Supply Long Life Span



Quick detail:



1. CE ROHS certificated

2. 24W LED power supply

3. DC voltage: 12v

4. Output current: 2A

5. Size: 115*45*28mm(L*W*H)

6. Packing: 0.09kg/PCS;108PCS/11.7kg





Description:



1. Greater than 105% of capacity

2. International broad voltage AC input

3. High efficiency, long life span, and high reliability

4. Protection: short-circuit, overload, overheat

5. Load adjustment: taken under 0~100% of rated load.



Specification:



Product No. AN-24-5 AN-24-12 AN-24-24 AN-24-48
Output DC voltage 5V 12V 24V 48V
Capacity of current 4A 2A 1A 0.5A
Range of current 0-4A 0-2A 0-1A 0-0.5A
Power 20W 24W 24W 24W
Noise max. 2 120mVp-p 150mVp-p 240mVp-p 250mVp-p
Voltage adjustment - - - -
Voltage accuracy 3 ±2% ±1% ±1% ±1%
Linear Adjustment 4 - - - -
Load adjustment 5 ±1.5% ±0.5% ±0.5% ±0.5%
Start and rise time 1000ms,30ms/230VAC
Hold time (Typ) 50ms/230VAC
Input Voltage range AC 87-264V
Frequency range 47-63HZ
Efficiency (Typ) 75% 80% 82% 82%
AC current (Typ) 0.36A/90V 0.15A/220V
Surge current (Typ) cold start:65A/230VAC
Current leak <2mA/240VAC
Protection Overload Greater than 105% of capacity
Protection mode: hiccup, automatic restoration after abnormity removed
Overvoltage

Overheat

Environment Working temp. -20~+60℃(see tenuation curve)
Working humidity 20~90% RH,without condense
Storage temp & hmdty -40~+80℃
Temp. coefficient ±0.03%/℃ (0~50℃)
Vibration proof 10~500Hz, 5G 10min / cycle,X,Y,Z axes 60 min each
Safety reg. & EMC Safety regulation GB195110.1-2004/IEC61347-1:2003 CE(EMC+LVD)
Voltage proof I/P-O/P:1.5KVAC
insulation resistance I/P-O/P:100M Ohms/500VDC/25℃/70% RH
EMC irradiation EN 55015:2006;EN61000-3-2:1995+A2:2005
EMC disturbance proof EN 61000-3-2:2006;
  Dimensions 115*45*28mm(L*W*H)
Packing 0.09kg/PCS;180PCS/16.22kg



Competitive Advantage:



1. Using low voltage (12DC), reliable performance

2. Output low ripple and noise

3. Super bright top LED

4. Two year warranty

5. Average working no trouble >50, 000 hours
