| Place of Origin: | China |
| Brand Name: | HIC |
| Certification: | ISO |

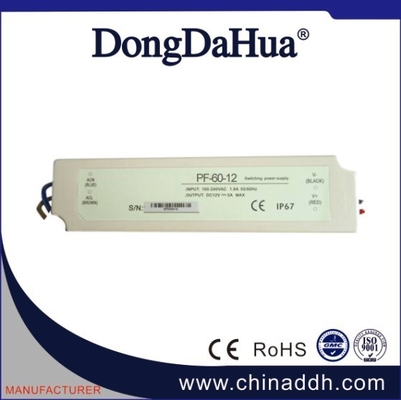

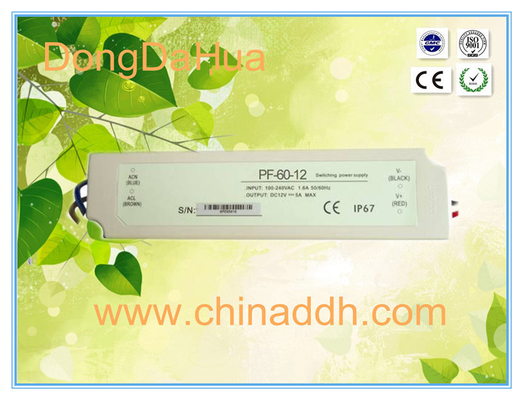

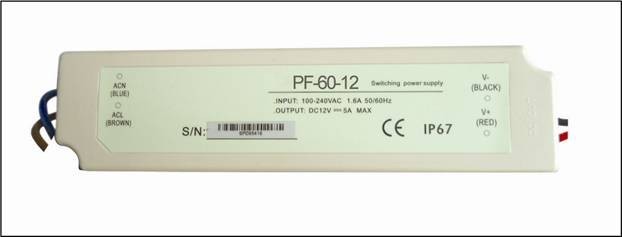

| Model Number: | PF-60-12 |
| Product Name: | Constant Voltage LED Driver |
|---|---|
| DC output power: | 60W |
| DC output voltage: | 12V 24V |
| Input voltage range: | 110-240V AC |
| Waterproof grade: | IP67 |
| Input frequency range: | 47Hz~63Hz |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | According to customer’s requirment |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C T/T,Paypal |
| High Light: | Ac to dc led driver,led light driver |
||
|---|---|---|---|

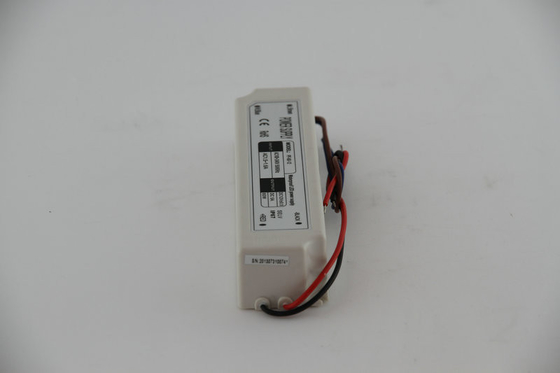

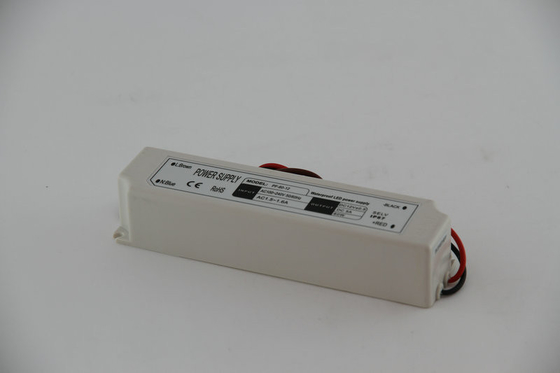

Overload Protection 60W Constant Voltage LED Driver IP67 High Reliability
Features:
* constant voltage design
* Universal AC input/Full range
* Withstand 300VAC surge input for 5 seconds
* Epoxy encapsulated with IP67 level
* Protections:Short circuit/Overload/Over voltage
* Cooling by free air convection
* Small and compact size
* Fully isolated plastic case
* Suitable for LED lighting and moving sign applications
* 100% full load burn-in test
* Low cost,high reliability
* 2 years warranty
LED lighting 60 Watt Constant Voltage LED Driver IP67 24V DC , High Reliability
Application:
It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.
Descriptions:
|
Parameter |
Model: PF-60 |
|
|
DC output voltage |
12V±5% |
24V±5% |
|
Rated output current |
5A |
2.5A |
|
Output current range |
0-5A |
0-2.5A |
|
Ripple and Noise |
120mVp-p |
|
|
DC output power |
60W |
60W |
|
Efficiency |
85% |
85% |
|
Input voltage range |
110-240V AC |
|
|
Short-circuit protection |
Damage free short-circuit protection 3 times or more with automatic restoration |
|
|
Overload protection |
105-150% hiccup with automatic restoration |
|
|
Temp.coefficient |
±0.03%℃ ( 0-40℃ ) |
|
|
Voltage tolerance |
Input-output range: 1.5KvAC |
|
|
Working environmental temp. |
-10℃~+40℃ |
|
|
Waterproof grade |
IP67 |
|
|
Input frequency range |
47Hz~63Hz |
|
|
Storage temperature |
-20℃~+85℃ |
|
|
Dimension |
160*41*32 mm |
|
|
weight |
0.38 kg |
|
