| Place of Origin: | China |
| Brand Name: | DongDaHua |
| Certification: | CE,RoHS |
| Model Number: | PF-36-12 |
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | / |
| Packaging Details: | as for your requirement |
| Delivery Time: | as per your order quantity |
| Payment Terms: | TT,paypal |
| Supply Ability: | 4000pcs/Day |
| High Light: | 12 volt led driver,constant voltage led drivers |
||
|---|---|---|---|

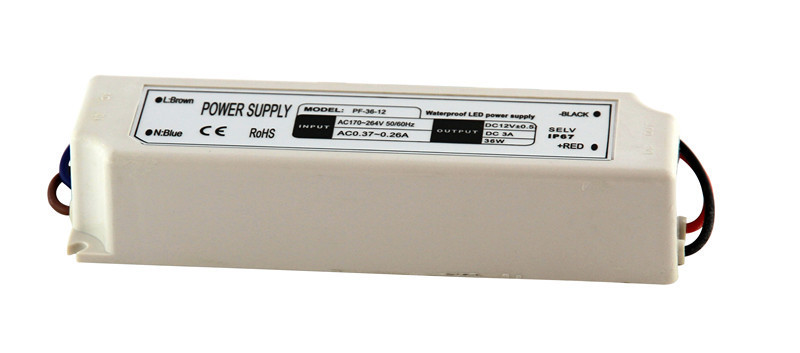

Single Output LCD Display Constant Voltage LED Driver 36W With Automatic Restoration
Quick detail:
Power: 20W
Input: AC170-264V
Output: DC 12V
Size: 139*30*20(mm)
Certificate: CE&ROHS
Warranty: 2 years
Description:
1. Protections :Short circuit/Overload/Over temperature
2. Cooling by free air convection
3. IP67 design for indoor or outdoor installations
4. 100% full load burn-in test
5. Suitable for LED lighting
6. Products through CE& ROHS certification
7. Two years warranty
Single Output LCD Display Constant Voltage LED Driver 36W 3A For Moving Sign
Descriptions:
|
Parameter |
Model: PF-36 |
|
|
DC output voltage |
12V±5% |
24V±5% |
|
Rated output current |
3A |
1.5A |
|
Output current range |
0-3A |
0-1.5A |
|
Ripple and Noise |
120mVp-p |
|
|
DC output power |
36W |
36W |
|
Efficiency |
85% |
85% |
|
Input voltage range |
110-240V AC |
|
|
Short-circuit protection |
Damage free short-circuit protection 3 times or more with automatic restoration |
|
|
Overload protection |
105-150% hiccup with automatic restoration |
|
|
Temp.coefficient |
±0.03%℃ ( 0-40℃ ) |
|
|
Voltage tolerance |
Input-output range: 1.5KvAC |
|
|
Working environmental temp. |
-10℃~+40℃ |
|
|
Waterproof grade |
IP67 |
|
|
Input frequency range |
47Hz~63Hz |
|
|
Storage temperature |
-20℃~+85℃ |
|
|
Dimension |
151*42*30mm |
|
|
weight |
0.28 kg |
|
Application:
It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.
