| Place of Origin: | China |
| Brand Name: | DongDaHua |
| Certification: | CE,RoHS |
| Model Number: | PF-100-12 |
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | / |
| Packaging Details: | as for your requirement |
| Delivery Time: | as per your order quantity |
| Payment Terms: | TT,paypal |
| Supply Ability: | 4000pcs/Day |
| Product Name: | Constant Voltage LED Driver | DC Output Power: | 100W |
|---|---|---|---|
| DC Output Voltage: | 12V 24V | Input Voltage Range: | 110-240V AC |
| Waterproof Grade: | IP67 | Input Frequency Range: | 47Hz~63Hz |
| High Light: | 12 volt led driver,waterproof led driver |
||

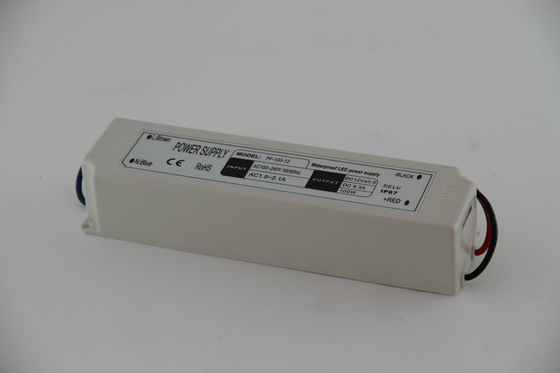

100W 24V Constant Voltage LED Driver Efficiency Overload Protections
Quick detail:
Power: 100W
Input: AC110-264V
Output: DC 12V 24V
Size: 190*52*38
Certificate: CE&ROHS
Warranty: 2 years
Description:
1. Protections :Short circuit/Overload/Over temperature
2. Cooling by free air convection
3. IP67 design for indoor or outdoor installations
4. 100% full load burn-in test
5. Suitable for LED lighting
6. Products through CE& ROHS certification
7. Two years warranty
Descriptions:
|
Parameter |
Model:PF-100-12 |
|
|
DC output voltage |
12V±5% |
24V±5% |
|
Rated output current |
8.3A |
4.15A |
|
Output current range |
0-8.3A |
0-4.15A |
|
Ripple and noise |
120mVp-p |
|
|
DC output power |
100W |
100W |
|
Efficiency |
85% |
85% |
|
Input voltage range |
110-240V AC |
|
|
Short-circuit protection |
Damage free short-circuit protection 3 times or more with automatic restoration |
|
|
Overload protection |
105-150% hiccup with automatic restoration |
|
|
Temp.coefficient |
±0.03%℃ ( 0-40℃ ) |
|
|
Voltage tolerance |
Input- output range: 1.5KvAC |
|
|
Working environmental temp. |
-10℃~+40℃ |
|
|
Waterproof grade |
IP67 |
|
|
Input frequency range |
47Hz~63Hz |
|
|
Storage temperature |
-20℃~+85℃ |
|
|
Dimension |
100*52*38 mm |
|
|
weight |
0.58 kg |
|
Features:
1. constant voltage design
2. Universal AC input/Full range
3. Withstand 300VAC surge input for 5 seconds
4. Epoxy encapsulated with IP67 level
5. Protections:Short circuit/Overload/Over voltage
6. Cooling by free air convection
7. Small and compact size
8. Fully isolated plastic case
9. Suitable for LED lighting and moving sign applications
10.100% full load burn-in test
11. Low cost,high reliability
12. 2 years warranty

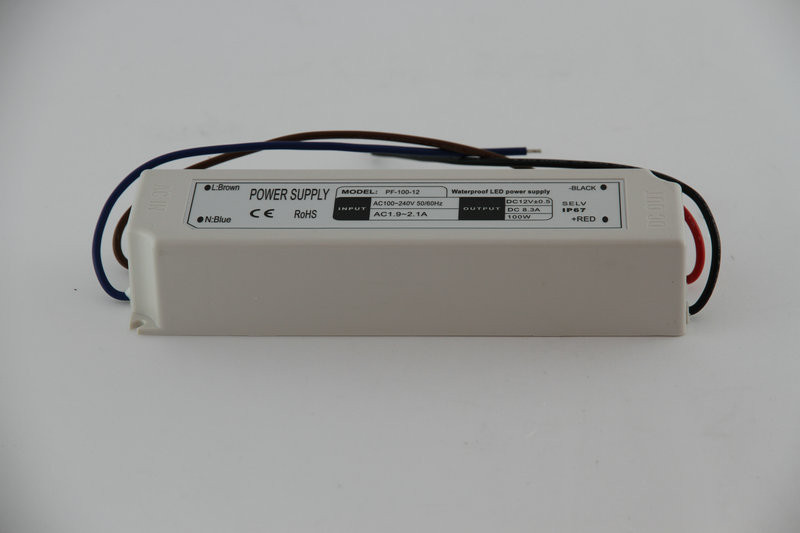

100W 50Hz Constant Voltage 12 Volt LED Driver Efficiency With Overload Protection
Application:
It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.
