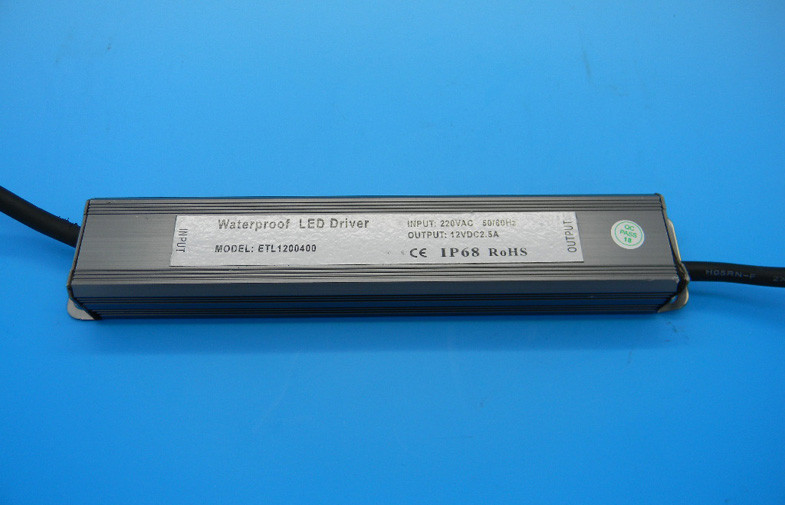

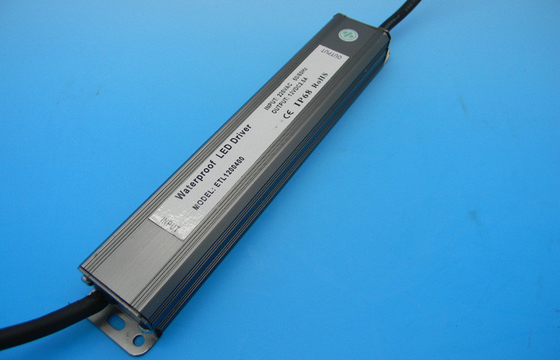

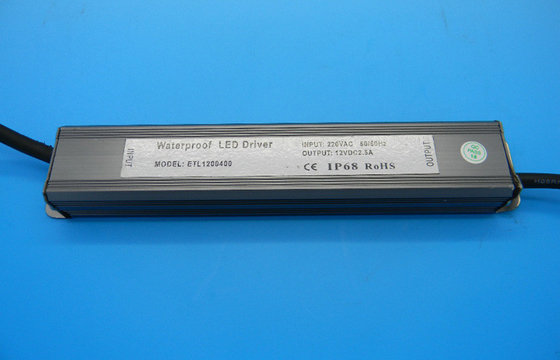

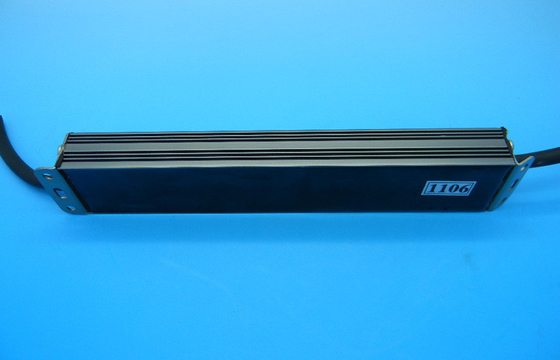

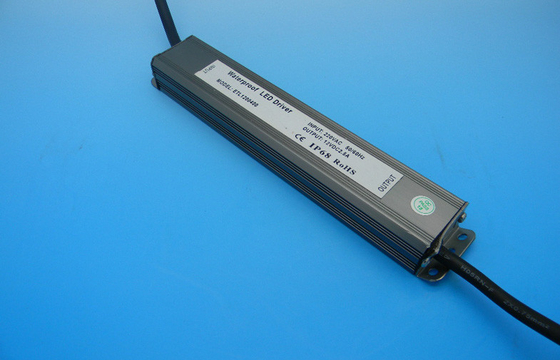

30W Constant Voltage LED Waterproof Driver FCC Part 15B IP68 With CE RoHS

30W Constant Voltage LED Waterproof Driver FCC Part 15B IP68 With CE RoHS

    • 30W Constant Voltage LED Waterproof Driver FCC Part 15B IP68 With CE RoHS
    • 30W Constant Voltage LED Waterproof Driver FCC Part 15B IP68 With CE RoHS
    • 30W Constant Voltage LED Waterproof Driver FCC Part 15B IP68 With CE RoHS
    • 30W Constant Voltage LED Waterproof Driver FCC Part 15B IP68 With CE RoHS
  • 30W Constant Voltage LED Waterproof Driver FCC Part 15B IP68 With CE RoHS

    Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: RAYTOP
    Certification: CE, RoHS, FCC
    Model Number: ETF1200250

    Payment & Shipping Terms:

    Minimum Order Quantity: 1K
    Price: Negotiable
    Packaging Details: White box/Master Carton
    Delivery Time: 15-20 work days.
    Payment Terms: T/T, L/C
    Supply Ability: 200,000 Pcs monthly.
    Contact Now
    Detailed Product Description
    Name: 30W12V LED Waterproof Driver Approval: CE|RoHS|FCC|UL|EMC
    EMI Standards: FCC Part 15B|PFC Feature: High Efficency|Constant Voltage
    Material:: Aluminum + Silica Gel Output: DC12V
    Output Power: 30W Product Name: LED Waterproof Driver
    Protection: Short Circuit|Over Voltage|Over Current Feature 1: Waterproof Led Driver
    Feature 2: Transformer Power Supply High Light:

    constant current led driver

    ,

    Waterproof LED Power Supply

    Transformator power supply 30W12V LED Waterproof Driver FCC Part 15B IP68 With CE RoHS





    Quick Detail:



    LED Waterproof driver, constant voltage 12V 30W,IP67





    Specs:



    Input: AC100-240V, 1.2A max.

    Frequency: 47/63Hz

    Output: DC12V, 2.5A

    Water Resistance: IP68

    Cable: 12m

    Current:2.5a





    Features:



    -2 years warranty

    -High efficiency

    -EMC standards PFC>0.95

    -Full range 100~250VAC

    -Protections: SCP, OPP, OVP, OTP, LDP

    -IP68 design for indoor and outdoor application

    -100% burn-in tests, at full load

    -Rated output can be customized





    Approval: CE, RoHS, FCC

    Warranty: 2 years





    Description:



    IP68 Waterproof LED driver for indoor and out door using, aluminum cased.





    Note:



    1) Please calculate the output power correctly, and do not make it work under over load circumstance,  avoid to touch the case when using.

    2) Avoid output short circuit, if no output, please repeat using it after 1 minute shut off.

    3) Please make sure correct wire connecting before using the power supply.





    Applications:



    1) LED accessories for Waterproof led flexible ribbon, led rigid bar, led strip lights etc.

    2) This safety driver is good used with electronic equipment, IT equipment, small home appliance





    Specifications:



    Input

    Rated Input Voltage

    AC100~240V

    Input Voltage Range

    AC 90~264V

    Rated Frequency

    50/60 Hz

    Input Frequency Range

    47~63 Hz

    Power Factor

    >0.95

    Input AC Current

    300mA

    Inrush Current

    Cold start 20A at100Vac, 60A at 240Vac.

    Output

    Rated Output Voltage

    DC12V±5%

    Rated Output Current

    2.5A

    Rated Power

    30W

    Ripple and Noise

    200mV p-p

    Turn-on

    50ms @ full load(typical)

    Hold-up

    20ms @ full load(typical)

    Over Voltage Protection

    Yes, 105%--150%

    Over Current Protection

    Yes, 130%-150%

    Short Circuit Protection

    Hiccup type, automatically recover after short circuit remove.

    Reliability

    Hi-pot

    3750Vac

    Leakage Current

    5mA/240VAC



    Withstanding Voltage

    I/P-O/P,I/P-FG: 3.75KVAC,O/P-FG:1.75KVAC,1 min

    Insulation Resistance

    Input and output internal: Input and enclosure, Output and enclosure:500VDC/100MΩ 25°C/70% RH

    EMI Standards

    FCC Part 15B Class B

    RoHS Compliant

    Yes

    MTBF

    50,000 hours

    Burn-in

    40+/-5 ℃, full load, 4 hours

    Environmental

    Operating Temperature

    -10~60℃

    Operating Humidity

    10~90%

    Storage Temperature

    -20~85℃

    Storage Humidity

    0~95%

    Safety Approvals

    CE, RoHS,FCC

    Warranty

    2 Years





    Competitive Advantage:



    -Open private model w/o extra cost for you;

    -0.3% free backup of order quantity;

    -Direct factory price without middle man;

    -High performance-to-price ratio;

    -Perfect after-sale service.

    -
