Name: Kompak Sensor gerak DC ukuran 5.8GHz dengan konstan saat ini memimpin Driver
Brand: Shenzhen Power Adapter Co.,Ltd.
SKU: MC011D8
Availability: InStock

Rumah Produk Konstan saat ini LED Power Supply

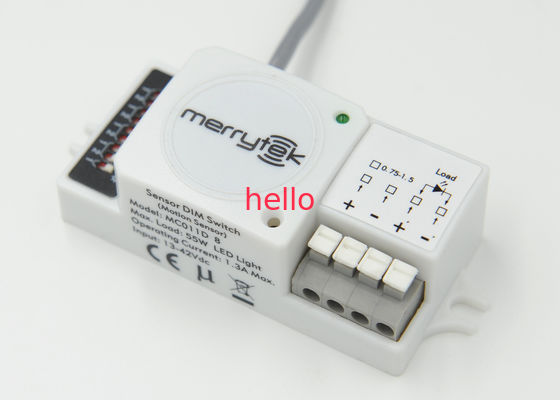

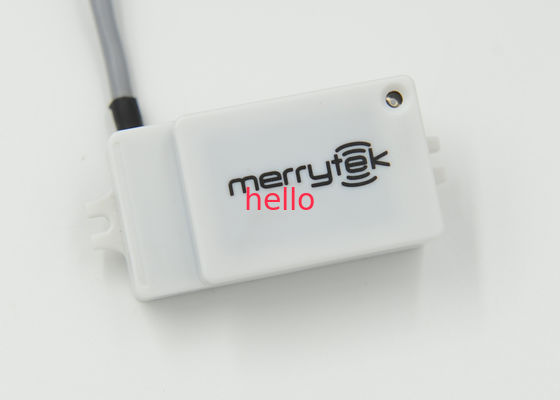

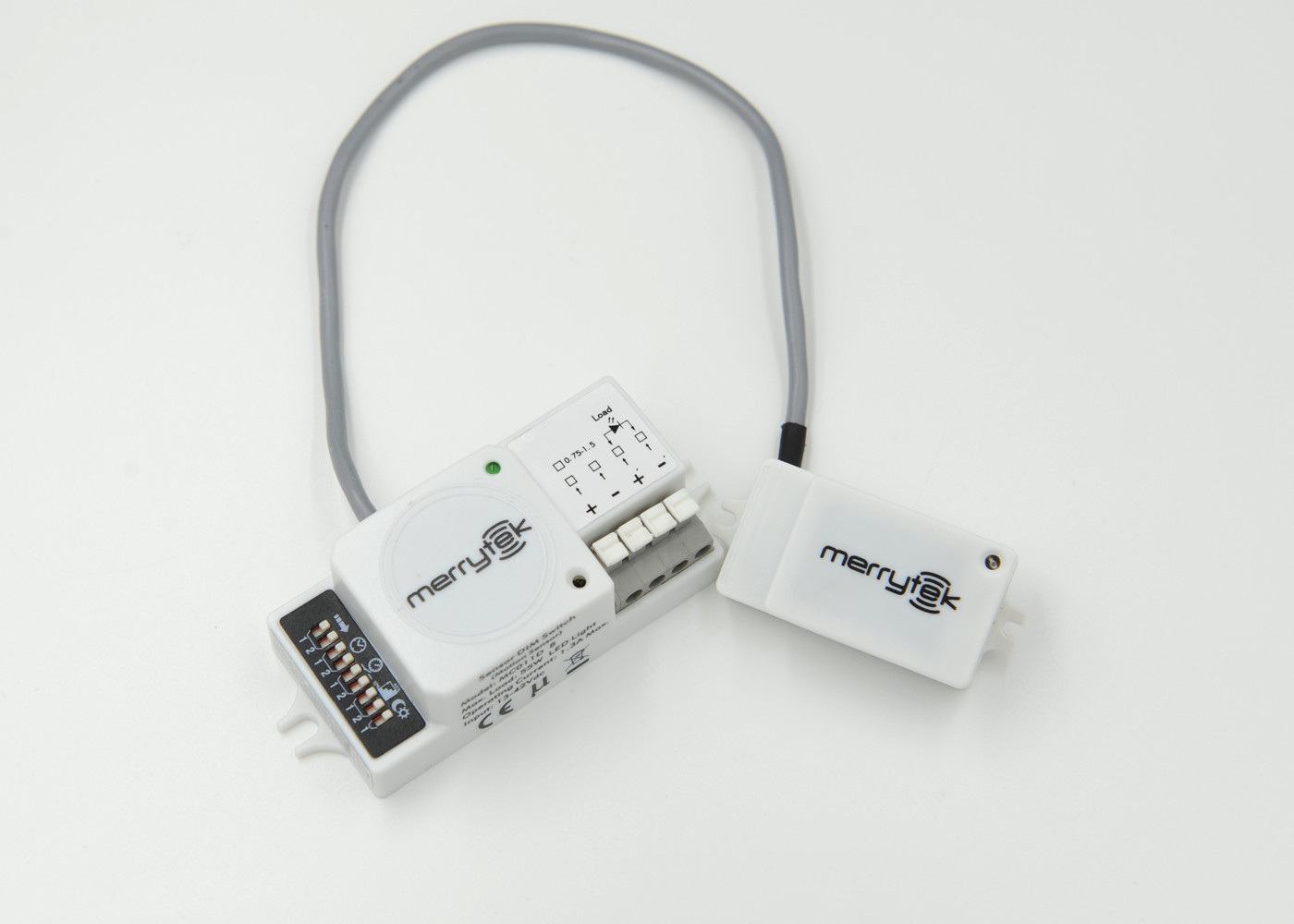

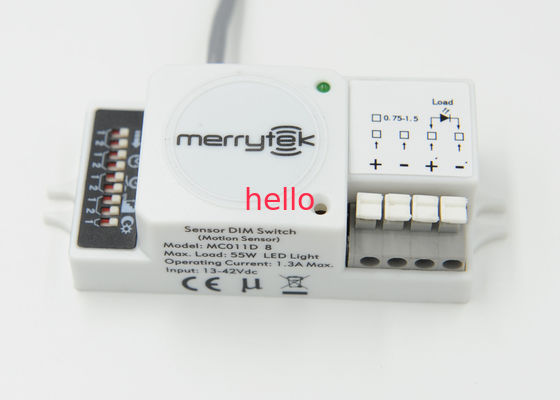

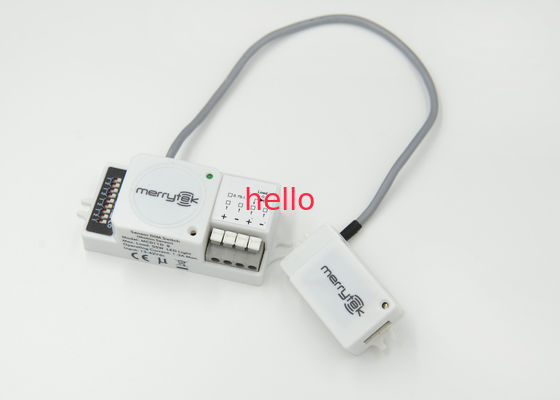

Kompak Sensor gerak DC ukuran 5.8GHz dengan konstan saat ini memimpin Driver

Detail produk:

Place of Origin:	China
Nama merek:	Merrytek
Sertifikasi:	CE , R&TTE
Model Number:	MC011D8

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	100pcs
Harga:	negotiable
Packaging Details:	Packed in bubble bags firstly, and then reinforced with carton or outer packing
Delivery Time:	1, Sample and small order: Within 5 working days 2, Bulk order: within 3-4 weeks
Payment Terms:	T/T, Western Union
Supply Ability:	20,000pcs per Month

Kontak

Detil Deskripsi produk

Product Name:	Microwave motion sensor	Rated load:	Max.50WLED light
Operating Voltage:	13 - 42vdc	Detection:	Max(D×H):16m×6m
HF system:	5.8GHz ±75MHz, ISM wave band	Size (L×W×H):	82x36.5x 25.5 mm(power supply part) 53x26.1x16mm(sensor part)
Approval:	CE & R&TTE	Operation temperature:	-20℃~50℃
Function:	ON-OFF 2 step dimming	IP Rating:	IP20
Menyoroti:	frekuensi tinggi sensor

Peredupan fungsi 5.8GHz DC sensor gerak operasi Microwave MC011D8, CE & R & TTE

Deskripsi

DC operasi desain
Peredupan fungsi bekerja dengan sederhana konstan sopir dipimpin saat ini
Tahan zona deteksi waktu dan sensor siang hari dapat diatur oleh saklar DIP
desain dilepas antara sensor dan power supply bagian
Peralihan otomatis berdasarkan gerakan dan tingkat cahaya ambient.
4-pole press-in terminal (L, N, N, L '), mudah perakitan.
ukuran kompak, cocok untuk memperbaiki dalam sebagian besar tokoh-tokoh.
daerah deteksi lebar, jangkauan hingga 16m dengan diameter.
sensor memberikan solusi peredupan sederhana dan hemat biaya. Dengan tegangan DC operasi dari driver LED, tidak ada perlu tenaga ekstra dari baris. Tanpa DALI atau 1-10V dimmable LED penyelam, mereka cocok untuk driver LED yang paling umum dan mencapai 2-langkah peredupan fungsi. Sangat cocok untuk harga tokoh-tokoh sensitif.

On-off fungsi

2- Langkah peredupan fungsi

spesifikasi:

operasi tegangan	13 - 42Vdc
beban dinilai	cahaya Max.50WLED
saat operasi	1.3A max
sistem HF	5.8GHz ± 75MHz, gelombang ISM Band
Konsumsi daya	≤0.5W (standby), <1W (operasi)
daya transmisi	<0.5mW
zona deteksi Max. (D x H)	16m x 6m
Deteksi gerakan	0,5 ~ 3m / s
deteksi sudut	150 ° (instalasi dinding) 360 ° (instalasi langit-langit)
Peringkat IP	IP20
Suhu operasi	-20 ℃ ~ 50 ℃
terus waktu	0s / 5 menit / 30 menit / Disable
sensitivitas deteksi	25% / 50% / 75% / 100%
tingkat peredupan	10% / 20% / 30% / 40%
Stand-by periode	10s / 90s / 3 menit / 10 menit
modus peredupan	peredupan bertahap
Daylight Sensor	30lux / Nonaktifkan
Seumur hidup	50000 jam
Jaminan	5 tahun

Aplikasi:

Tangga, Koridor, Balcony, Pathway, dll
