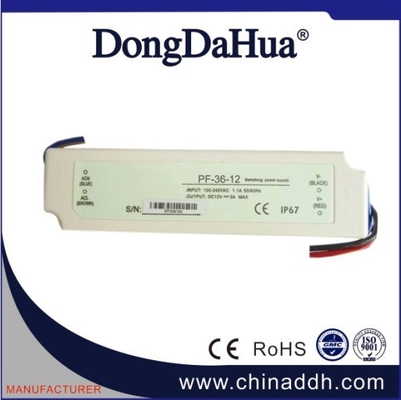

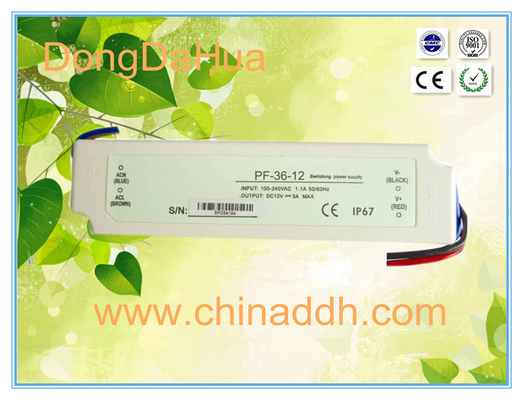

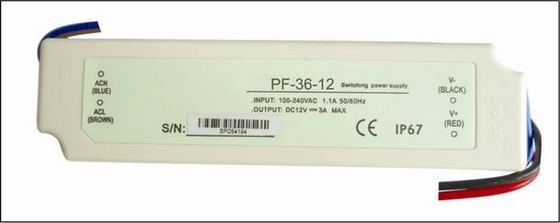

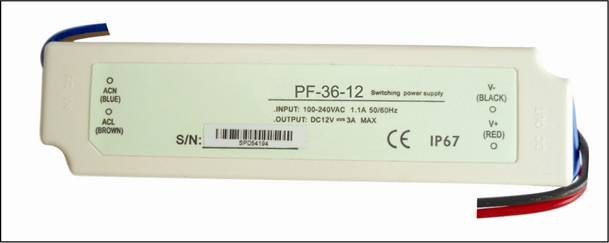

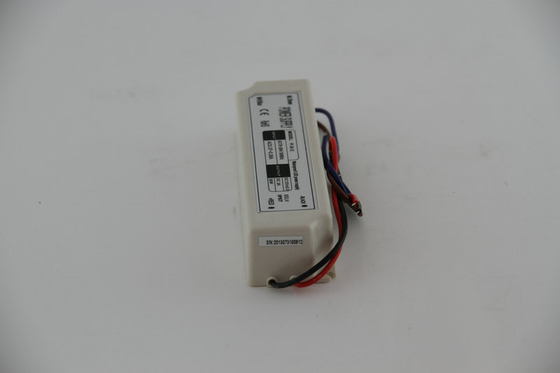

300 VAC 3A 36W Constant Voltage Waterproof LED Driver Full Range For CCTV Camera

300 VAC 3A 36W Constant Voltage Waterproof LED Driver Full Range For CCTV Camera

  • 300 VAC 3A 36W Constant Voltage Waterproof LED Driver Full Range For CCTV Camera
  • 300 VAC 3A 36W Constant Voltage Waterproof LED Driver Full Range For CCTV Camera
  • 300 VAC 3A 36W Constant Voltage Waterproof LED Driver Full Range For CCTV Camera
  • 300 VAC 3A 36W Constant Voltage Waterproof LED Driver Full Range For CCTV Camera
  • 300 VAC 3A 36W Constant Voltage Waterproof LED Driver Full Range For CCTV Camera
300 VAC 3A 36W Constant Voltage Waterproof LED Driver Full Range For CCTV Camera
Product Details:
Place of Origin: China
Brand Name: HIC
Certification: ISO
Model Number: PF-36-12
Product Name: Constant Voltage LED Driver
DC output power: 36W
DC output voltage: 12V 24V
Waterproof grade: IP67
Input voltage range: 110-240V AC
Input frequency range: 47Hz~63Hz
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: According to customer’s requirment
Delivery Time: 7-15days
Payment Terms: L/C T/T,Paypal
Contact Now
Detailed Product Description
High Light:

Ac to dc led driver

,

24v dc led driver

Withstand 300VAC Constant Voltage LED Driver 36W 3A For Moving Sign





Features:



* constant voltage design
* Universal AC input/Full range
* Withstand 300VAC surge input for 5 seconds
* Epoxy encapsulated with IP67 level
* Protections:Short circuit/Overload/Over voltage
* Cooling by free air convection
* Small and compact size
* Fully isolated plastic case
* Suitable for LED lighting and moving sign applications
* 100% full load burn-in test
* Low cost,high reliability
* 2 years warranty



300 VAC 3A 36W Constant Voltage Waterproof LED Driver Full Range For CCTV Camera



Descriptions:



Parameter

Model: PF-36

DC output voltage

12V±5%

24V±5%

Rated output current

3A

1.5A

Output current range

0-3A

0-1.5A

Ripple and Noise

120mVp-p



DC output power

36W

36W

Efficiency

85%

85%

Input voltage range

110-240V AC

Short-circuit protection

Damage free short-circuit protection 3 times or more with automatic restoration

Overload protection

105-150% hiccup with automatic restoration

Temp.coefficient

±0.03%℃ ( 0-40℃ )

Voltage tolerance

Input-output range: 1.5KvAC

Working environmental temp.

-10℃~+40℃

Waterproof grade

IP67

Input frequency range

47Hz~63Hz

Storage temperature

-20℃~+85℃

Dimension

151*42*30mm

weight

0.28 kg





Application:

It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.
