| Place of Origin: | China |
| Brand Name: | HIC |
| Certification: | ISO |
| Model Number: | KSOP025 |
| Output Type: | AC |
|---|---|
| Usage: | Switching |
| Port: | Hong Kong Shenzhen |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | According to customer’s requirment |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C T/T,Paypal |
| High Light: | universal ac power adapters,universal power ac adapter |
||
|---|---|---|---|

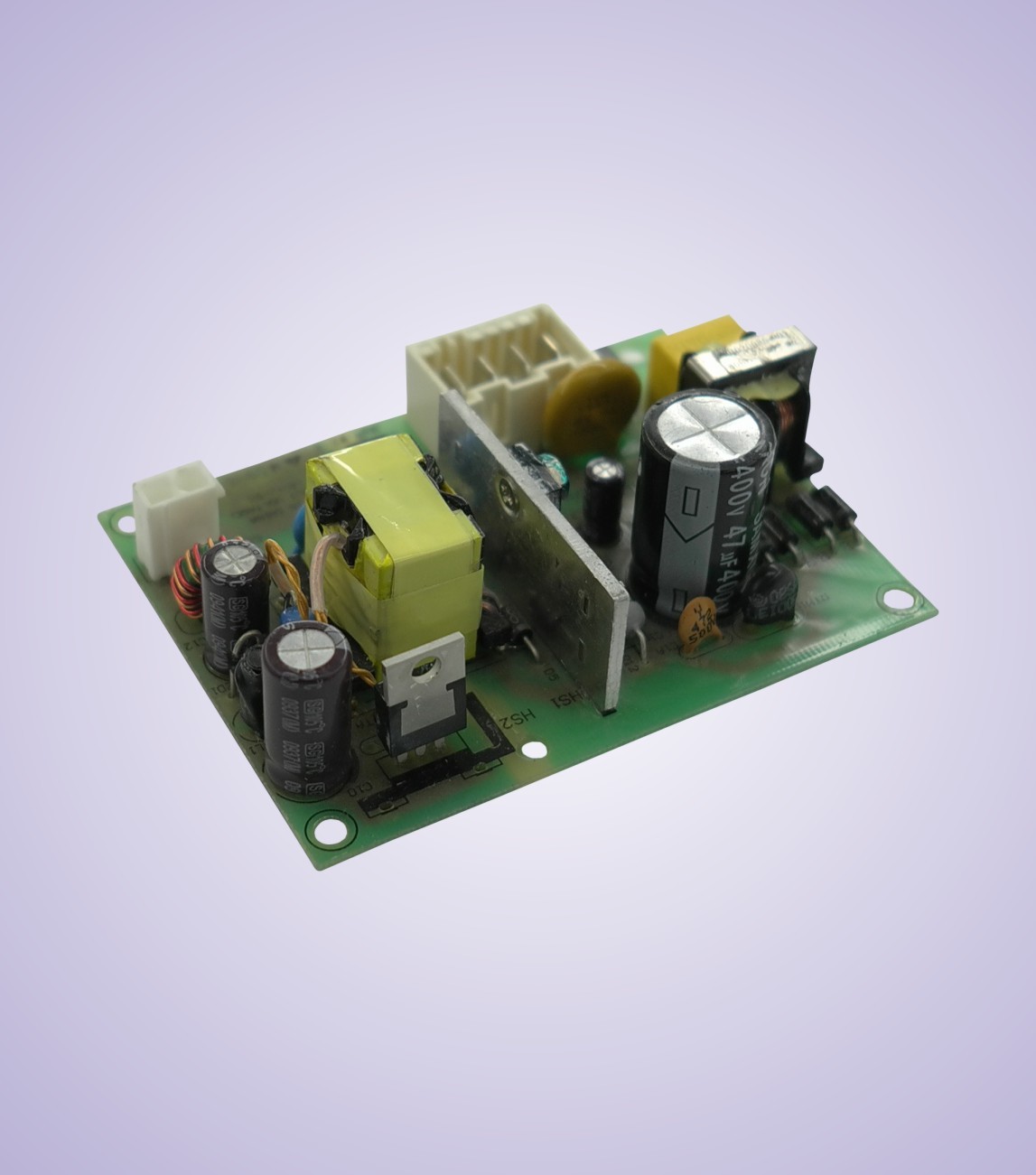

25W Open Frame Power Supplies
Key features of KSOP0251400180
●Light, extra slim, sleek, compact design
●Green power, full complies with CEC level V MEPS V EUP2011
●High power density
●Extra safe design, have got their respective safety approvals
●ompleted protect function
Key Applications of KSOP0251400180
It’s suit for an extremely wide range of applications including:
●Set-top-box
●ADSL
●Hard disk drive
●Audio & Video product
●Household applianec
●Washing machine
●Input Voltage : 100 to 120 VAC
●Frequency : 47-50/60-63hz
●Input current : 0.8A(Max) 120 /240VAC
●Inrush current : 50AMax.120VAC at max. Load
●Leakage current: 0.25 mA Max
●Over voltage protection
●Over current protection
at 110-200% of lo and Auto-recovery
●Electronic short circuit protection
●Operatingtemperature 0~75℃Free convection
●Operating humidity 10-80% RH Non Condensing
●Sea level Non-operating temperature -20~80℃
●Information technology equipment
●UL1310
●UL1310 SAFETY
●Radiation Test&Conduction Test: EN 55022/FCC Part 15
●Harmonic Test : EN 61000-3-2
●Flicker Test : EN 61000-3-3
●ESD Test: EN 61000-4-2
●RS Test: EN 61000-4-3
●EFT Test: EN 61000-4-4
●Surge Test: EN 61000-4-5
●CS Test: EN 61000-4-6
●DIP Test: EN 61000-4-11
Dimension L*W*H(mm): 89*67*28
