| Place of Origin: | China |
| Brand Name: | HIC |
| Certification: | ISO |
| Model Number: | KS042 |
| Output Type: | AC |
|---|---|
| Usage: | Switching |
| Port: | Hong Kong Shenzhen |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | According to customer’s requirment |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C T/T,Paypal |
| High Light: | universal power adapter,universal power ac adapter |
||
|---|---|---|---|

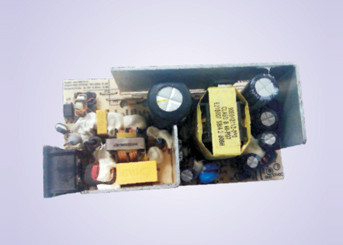

42W Open Frame Power Supplies
Key Features of KSO42-2
●En60950 ITE Safety Approvals
●Ambient Temp Range(0℃ to 60 )
●E.Cap life more than 6 years
●EMI level B Production connect GND
●Output:12V/3.15A, 4.6V/0.8A
●Reliability level of 44K hours MTBF @ 60℃
Key Applications of KSO42-2
It's suit for an extremely wide range of
applications, including:
●General I.T.E Use
●Set-top-box
●ADSL
●Hard disk drive
●Audio & Video product
●Household appliance
●Washing machine
●Input Voltage: 180 to 264 VAC
●Frequency : 47-50/60-63hz
●Input Current : 1.0A (Max)
●Inrush Current : 45A Max 230VAC at max Load
●Leakage Current:0.25mA Max
●Over voltage protection
●Over current protection
at 110-200% of lo and Auto-recovery
●Over temperature protection
●Electronic short circuit protection
●Operatingtemperature 0~40℃ Free convection
●Operating humidity 10-90% RH Non Condensing
●Sea level Non-operating temperature -20~80℃
●Information technology equipment
●IEC/EN 60950-1, BS EN 60950-1:2006
●Applied with customer’s products
●Radiation Test&Conduction Test: EN 55022/FCC Part 15
●E S D Test:EN 61000-4-2
●R S Test:EN 61000-4-3
●E F T Test:EN 61000-4-4
●S u r g e Test:EN 61000-4-5
●C S Test:EN 61000-4-6
●D I P Test:EN 61000-4-11
|
Dimension L*W*H (mm) : 110x58x38mm
|
