| Place of Origin: | China |
| Brand Name: | HIC |
| Certification: | ISO |
| Model Number: | KSOP030 |
| Output Type: | AC |
|---|---|
| Usage: | Switching |
| Port: | Hong Kong Shenzhen |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | According to customer’s requirment |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C T/T,Paypal |
| High Light: | universal power adapter,universal power ac adapter |
||
|---|---|---|---|

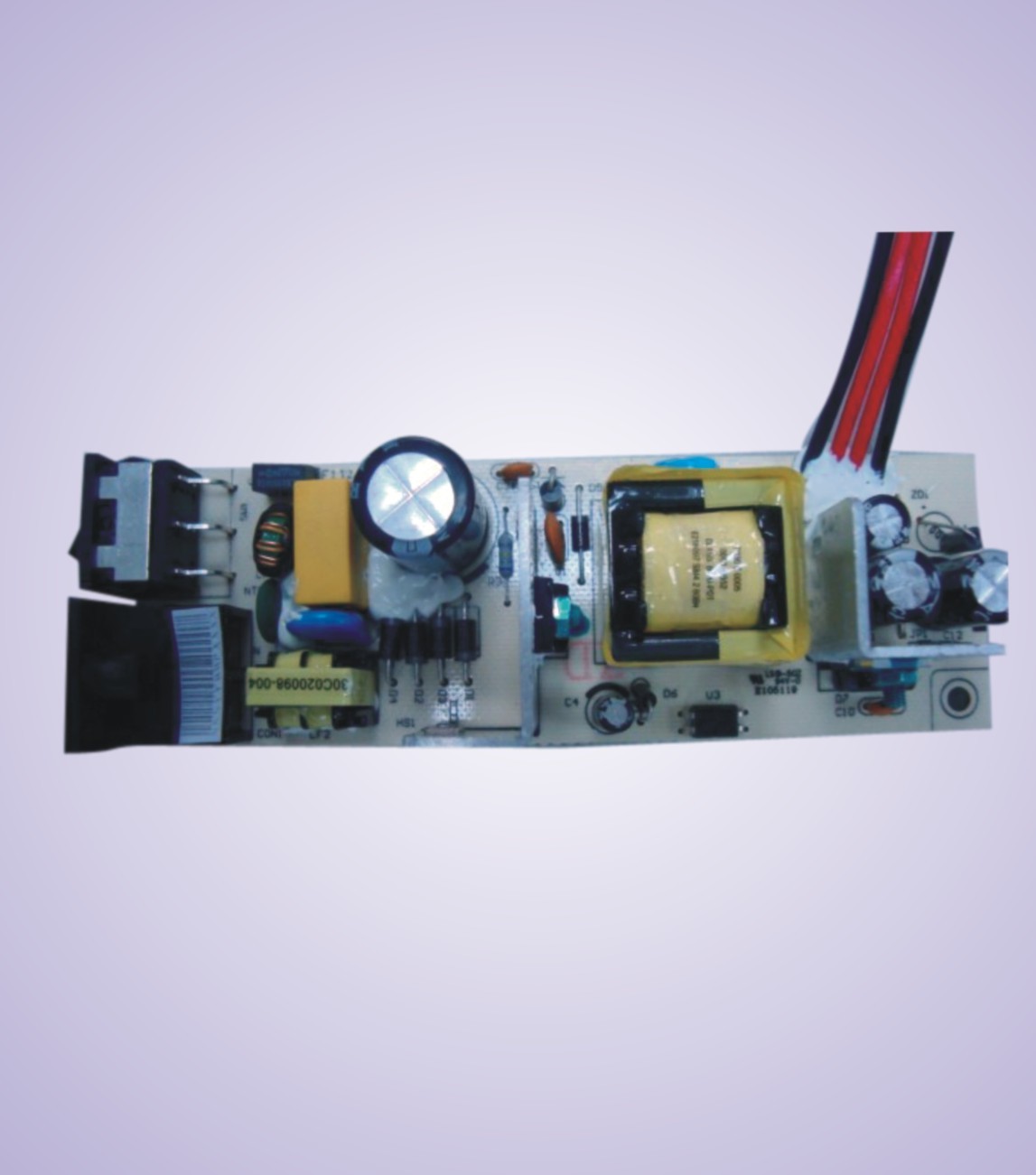

Key features of KSOP0301200250
●Light, extra slim, sleek, compact design
●Green power, full complies with CEC level V MEPS V EUP2011
●High power density
●Extra safe design, have got their respective safety approvals
Key Applications of KSOP0301200250
It’s suit for an extremely wide range of applications including:
●Set-top-box
●ADSL
●Hard disk drive
●Audio & Video product
●Household applianec
●Washing machine
●Input Voltage: 90 to 264 VAC
●Frequency : 47-50/60-63hz
●Input current: 0.6A (Max) 120 /240VAC
●Inrush current : 60AMax. 240VAC
●Leakage current :0.25 mA Max
●Over voltage protection
●Over current protection
at 110-200% of lo and Auto-recovery
●Short circuit protection auto-recovery
●Peak load 3Aof rated input
●Ripple&noise:150mV (20MHZ bandwidth)
●Operatingtemperature 0~75℃Free convection
●Operating humidity 10-80% RH Non Condensing
●Sea level Non-operating temperature -20~80℃
●No load power less than 0.3W
●EN60065
●Applied with customer’s products
●Radiation Test&Conduction Test: EN 55022/FCC Part 15
●ESD Test:EN 61000-4-2
●RS Test:EN 61000-4-3
●EFT Test:EN 61000-4-4
●Surge Test:EN 61000-4-5
●CS Test:EN 61000-4-6
●DIP Test:EN 61000-4-11
Dimension L*W*H(mm): 135*44*27
