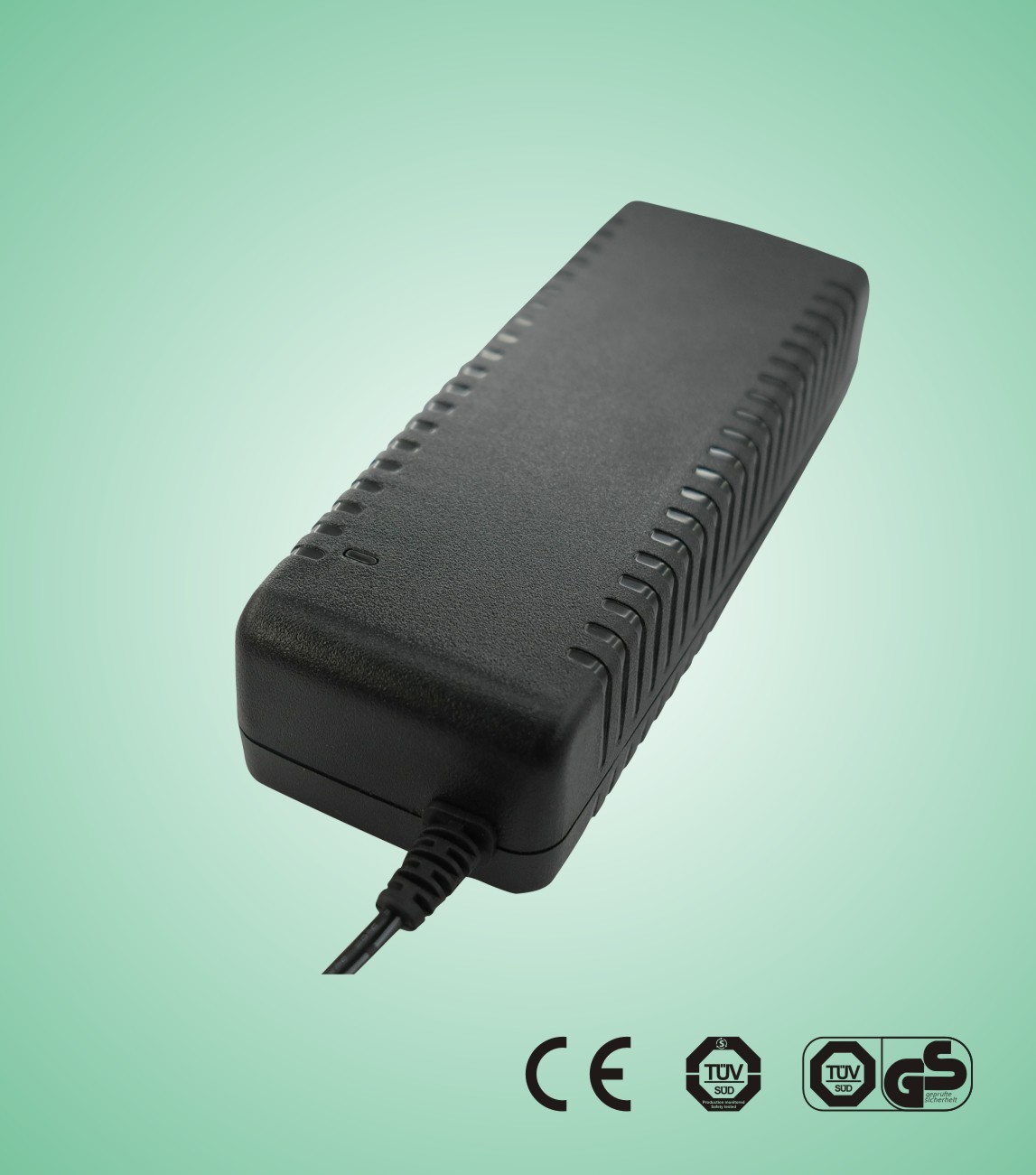

100W Desttop Switching Adapter Power

100W Desttop Switching Adapter Power

  • 100W Desttop Switching Adapter Power
  • 100W Desttop Switching Adapter Power
100W Desttop Switching Adapter Power
Product Details:
Place of Origin: China
Brand Name: HIC
Certification: ISO
Model Number: KSAM2400200T1M2
Output Type: DC
Usage: Laptop
Connection: Desktop
FOB: Shenzhen HK
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: According to customer’s requirment
Delivery Time: 7-15days
Payment Terms: L/C T/T,Paypal
Contact Now
Detailed Product Description
High Light:

Computer Switching Power Supply

,

Switch Power Supply

Key features of KSAM2400200T1M2

●Light, extra slim, sleek, compact design

●High power density

●Extra safe design, have got their respective safety approvals

●Completed protect function



Key Applications of KSAM2400200T1M2

It’s suitable for an extremely wide range of applications, including:

●Printer

●Set-top-box

●ADSL

●Hard disk drive

●Audio & Video product

●Household appliance

Input

●Input Voltage:   90 to 264 VAC

●Frequency :       47-50/60-63hz

●Input   current : 1.2A(Max)

●Inrush current : 100AMax 20VAC at max Load

                               100AMax 40VAC at max Load

●Leakage current :0.25 mA Max

Output

●Over voltage protection

●Over current protection

  at 300% of lo and auto-recovery

●Over temperature protection

●Electronic short circuit protection

●Average efficiency 80% Measured at 25℃

●Operating temperature 0~40 ℃Free convection

●Operating humidity 10-90% RH Non Condensing

●Sea level Non-operating temperature -20~80℃

Safety standards

●Information technology equipment

●IEC/EN 60950-1

Certificates and approvals

●CB, CE, TUV, GS

EMI Emission

●Radiation Test&Conduction Test:EN 55022/FCC Part 15

●Harmonic Test : EN 61000-3-2

●Flicker       Test : EN 61000-3-3

EMS immunity

●ESD   Test:EN 61000-4-2

●RS     Test:EN 61000-4-3

●EFT    Test:EN 61000-4-4

●Surge Test:EN 61000-4-5

●CS      Test:EN 61000-4-6

●DIP     Test:EN 61000-4-11

Mechanical SPEC

Dimension L*W*H (mm) : 141*60*35.9

Product tables for 100W
