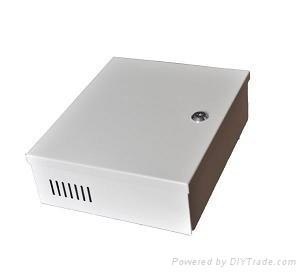

DC12V 4A 6CH 6CH metal shell cctv camera power supply Distribution Box

Brand: WINWELL

Dimensions:185*160*50mm

Model: WW-T48U12-6L

Weight:0.83Kg

Configuration:CCTV central power supply

Approve:CE approval

SPECIFICATIONS:

Input Voltage:

AC110-240V/47-63HZ

APPLICATION:

Output Voltage:

12Vdc

Digital and electronic products

Total Output Current:

4A (650mA/output,4channels)

LED, CCTV supervisory system

Total Output Power:

Over Current Protection:

36W

4.5A±5%

CCTV monitoring camera

Fuse Type:

Glass Fuse

FEATURE:

Cooling:

Natural cooling

12V 4A 6 channels CCTV power supply

Ripple& Noises:

<;;150mV

Power ON/OFF switch; Spare fuses included

Efficiency:

82% Min.

Stable performance, high efficiency

MTBF:

>50000H

Unit maintains camera synchronization

Operating Temperature

Storage Temperature:

-25°C~ +60°C,20% ~ 90%RH

-40°C~ +70°C,10% ~ 95%RH

Easy installation saves time and eliminates costly labor

General Protection:

each output has individual fuse, when problem occurs,

only affect the individual output, other outputs still working;

Circuit Short Protection:

when short condition occurs, individual fuse will open the circuit,

when condition removed, replacing another new fuse will back to close;

High Voltage Protection:

when high voltage occurs, the surge protection will be hit through to protect the connected device;

Over Current Protection:

when over current occurs, the power supply will automatically switch to self-protection status, when condition removed, then switch back to normal
