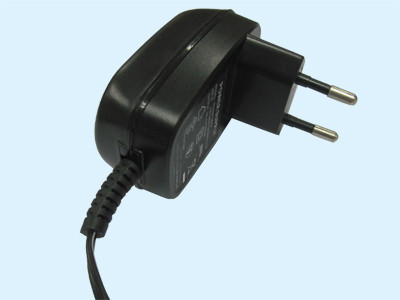

5VDC 600mA Wall Mount Power Adapter For Network Peripheral Products
Feature:
. Universal AC Input
. Class II power
. No load consumption < 0.3W
. Meet Energy Star Level V ( Erp )
. Protection: Overload , Short Circuit , Over Voltage
. Certificates : UL CB CE FCC C-TICK
. Warranty : 2 years
Description :
5V600mA Wall Mount Power Adapter For Network Peripheral Products
|
Electronics Specification : |
|
|
Input Voltage Range: |
90~264Vac |
|
AC current: |
0.3A |
|
Frequency: |
50/60Hz |
|
Inrush Current: |
30A/230Vac |
|
Leakage Current: |
0.25mA/240Vac |
|
Output Voltage: |
5.0Vdc |
| Output Voltage Range : |
4.75 ~ 5.25 Vdc |
| Output Current : |
600mA |
| Efficiency : |
> 78% |
|
Ripple and Noise : |
< 50mVp-p |
|
Line regulation: |
±1% |
|
Load regulation: |
±5% |
|
Efficiency: |
Meet energy star level V |
|
Over current protection: |
Hiccup mode, Auto recovery |
|
Over voltage protection: |
Power shutdown, Auto recover |
|
Environment : |
|
|
Working Temp.: |
0~40℃ |
|
Working Humidity: |
20%~90% RH non-condensing |
|
Storage Temp. & Humidity: |
-20℃~85℃, 10%~95% RH |
|
Reliability : |
|
|
Hi-Pot Testing Voltage : |
I/P to O/P : 3.0 (60Sec.) KVac |
|
Safety Standard : |
EN60950 |
|
EMI Standard : |
EN55022B |
|
Safety Approval : |
|
|
Certificate |
UL , CB , CE , FCC , C-TICK |
|
Mechanical Characteristics : |
|
|
Size: |
65 mm * 40mm * 28mm (L*W*H) |
|
AC connector |
EU plug |
|
DC Cable: |
1.8M |
|
DC connector: |
5.5*2.1*12mm, other type connector avaible |
Applications :
widely used in household appliances, IT digital products, medical equipments, communication equipments, instrumentations, bank data equipment, computer peripheral products, security monitoring system, industrial and light field equipment and other products.
