| Place of Origin: | China |
| Brand Name: | HIC |
| Certification: | ISO |
| Model Number: | P240W1500A |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | According to customer’s requirment |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C T/T,Paypal |
| High Light: | cell phone power adapter,portable power adapter |
||
|---|---|---|---|

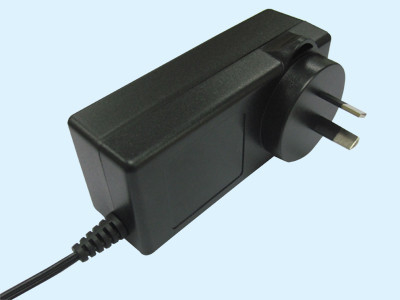

Wall Mount Power Adapter 24V 1.5A 36 Watt Plug In Adaptors SAA Plug
Feature:
. Input Voltage : 90 ~ 264 Vac
. SAA AC Plug
. Class II Power ( Without Earth Pin)
. No load consumption < 0.3W
. Protections: Overload, Short Circuit
. Approved by UL / CE / CB / C-TICK
. 2 Year Warranty
Description:
|
Electronics Specification : |
|
|
Input Voltage Range : |
90~264Vac |
|
AC current : |
0.7A |
|
Frequency : |
50/60Hz |
|
Inrush Current : |
30A/230Vac |
|
Leakage Current : |
0.25mA/240Vac |
|
Output Voltage : |
24.0 V |
|
Ouput Voltage Range : |
22.8V - 25.8V |
| Output Current : |
1.5A ( Max . ) |
|
Line regulation : |
±1% |
|
Load regulation : |
±5% |
|
Efficiency : |
Meet energy star level V |
|
Over current protection : |
Hiccup mode, Auto recovery |
|
Over voltage protection : |
Power shutdown, Auto recover |
|
Environment |
|
|
Working Temp. : |
0~40℃ |
|
Working Humidity : |
20%~90% RH non-condensing |
|
Storage Temp. & Humidity : |
-20℃~85℃, 10%~95% RH |
|
Reliability |
|
|
Hi-Pot Testing Voltage : |
I/P to O/P : 3.0 (60Sec.) KVac |
|
Safety Standard : |
EN60950 |
|
EMI Standard : |
EN55022B |
|
Safety Approval |
|
|
Certificate : |
UL, CE, FCC, C-TICK,CB |
|
Mechanical Characteristics |
|
|
Size : |
105mm*45mm*27.8mm (L*W*H) |
|
AC connector : |
US /EU plug |
|
DC Cable : |
1.8M |
|
DC connector : |
5.5*2.1*12mm, other type connector avaible |
Extension Output Data
|
Model No. |
Voltage |
Current range |
Ripple & Noise |
Eff. |
|
P050W5000A |
5.0V |
0~5.0A |
50mV |
>72% |
|
P075W4000A |
7.5V |
0~4.0A |
75mV |
>72% |
|
P090W4000A |
9.0V |
0~4.0A |
90mV |
>72% |
|
P120W3000A |
12.0V |
0~3.0A |
120mV |
>75% |
|
P150W2400A |
15.0V |
0~2.4A |
150mV |
>75% |
|
P180W2000A |
18.0V |
0~2.0A |
180mV |
>80% |
|
P220W1600A |
22.0V |
0~1.60A |
220mV |
>80% |
|
P240W1500A |
24.0V |
0~1.50A |
240mV |
>80% |
|
P320W1125A |
32.0V |
0~1.125A |
320mV |
>80% |
|
P360W1000A |
36.0V |
0~1.00A |
360mV |
>80% |
Certificate:
Applications:
widely used in household appliances, IT digital products, medical equipments, communication equipments, instrumentations, bank data equipment, computer peripheral products, security monitoring system, industrial and light field equipment and other products.
