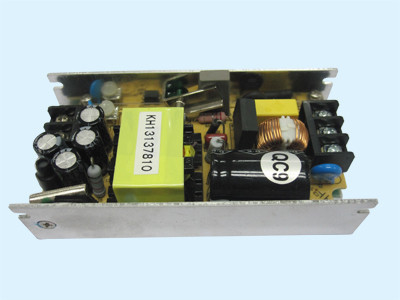

Name: 120W Open frame power supply 24VDC , Universal AC Input 50Hz / 60Hz
Brand: Shenzhen Power Adapter Co.,Ltd.
SKU: P120P5000
Availability: InStock

Home Products Open Frame Power Supplies

120W Open frame power supply 24VDC , Universal AC Input 50Hz / 60Hz

Product Details:

Place of Origin:	China
Brand Name:	HIC
Certification:	ISO
Model Number:	P120P5000

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	According to customer’s requirment
Delivery Time:	7-15days
Payment Terms:	L/C T/T,Paypal

Contact Now

Detailed Product Description

Highlight:	universal power adapter

120W Open frame power supply 24VDC , Universal AC Input 50Hz / 60Hz

Feature:

. Universal AC Input
. " U " Type
. Protections: Overload, Short Circuit
. Low Cost, High Reliability
. 2 Years Warranty

Description:
120W 24V Open frame power supply U Type power supply

Electronics Specification :
Input Voltage Range:	90~264Vac
AC current:	2.5A at 115Vac , 1.2A at 230Vac
Frequency:	50 / 60Hz
Inrush Current:	30A / 230Vac
Leakage Current:	<0.5mA / 240Vac
Output Voltage :	24.0Vdc
Output Voltage Range :	22.80 Vdc ~ 25.20 Vdc
Output Current :	5.0A
Output Power :	120W ( Max. )
Line regulation:	±1%
Load regulation:	±5%
Efficiency:	Meet energy star level V(CEC)
Over current protection:	Hiccup mode, Auto recovery
Over voltage protection:	Power shutdown, Auto recover
Environment :
Working Temp.:	0~40℃
Working Humidity:	20%~90% RH non-condensing
Storage Temp. & Humidity:	-20℃~85℃, 10%~95% RH
Reliability :
Hi-Pot Testing Voltage :	I/P to O/P : 3.0 (60Sec.) KVac
Safety Standard :	EN60950
EMI Standard :	EN55022B
Safety Approval :
Certificate	CE , REACH , ROHS
Mechanical Characteristics :
PCB Size:	150mm * 80mm * 35mm ( L * W * H )
AC connector	VH-2,Pin=3.96mm
DC connector:	WH-4,Pin=2.54mm

Applications:

widely used in household appliances, IT digital products, medical equipments, communication equipments, instrumentations, bank data equipment, computer peripheral products, security monitoring system, industrial and light field equipment and other products.
