| Place of Origin: | China |
| Brand Name: | HIC |
| Certification: | ISO |
| Model Number: | P570P8800 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | According to customer’s requirment |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C T/T,Paypal |
| High Light: | universal ac power adapters,universal power ac adapter |
||
|---|---|---|---|

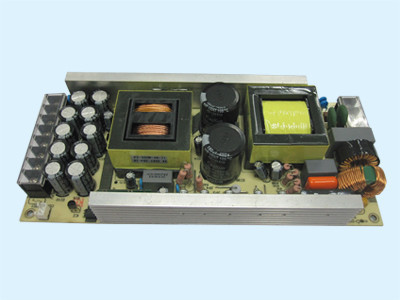

Open Frame AC-DC Power Supply For Medical Equipments , 570mV 500W 57V High Efficiency
Feature:
. Universal AC Input / Full Input
. Power Factor Built in , PF > 0.93
. Protections: Overload, Short Circuit
. High Reliability , Compesitive Cost
. Warranty : 2 Years
. Used On Security Equipment , Lighting Etc.
Description:
500W 57V Open Frame Power Supply With PFC High Reliability
|
Electronics Specification : |
|
|
Input Voltage Range: |
90~264Vac |
|
AC current: |
3.0A |
| PF : |
> 0.93 |
|
Frequency: |
50 / 60Hz |
|
Inrush Current: |
30A / 230Vac |
|
Leakage Current: |
<0.25mA / 240Vac |
|
Output Voltage : |
57.0 Vdc |
| Voltage Tolerance : |
±5% |
| Output Current : |
8.80A |
|
Output Power : |
501.6W ( Max. ) |
|
Line regulation: |
±1% |
|
Load regulation: |
±5% |
|
Efficiency: |
Meet energy star level V(CEC) |
|
Over current protection: |
Hiccup mode, Auto recovery |
|
Over voltage protection: |
Power shutdown, Auto recover |
|
Environment : |
|
|
Working Temp.: |
0~40℃ |
|
Working Humidity: |
20%~90% RH non-condensing |
|
Storage Temp. & Humidity: |
-20℃~85℃, 10%~95% RH |
|
Reliability : |
|
|
Hi-Pot Testing Voltage : |
I/P to O/P : 3.0 (60Sec.) KVac |
|
Safety Standard : |
EN60950 |
|
EMI Standard : |
EN55022B |
|
Safety Approval : |
|
|
Certificate |
CE , REACH , ROHS |
|
Mechanical Characteristics : |
|
|
PCB Size: |
215mm * 95mm * 40mm ( L * W * H ) |
|
AC connector |
VH-2,Pin=3.96mm |
|
DC connector: |
WH-4,Pin=3.96mm |
Extension Output Data
|
Model No. |
Voltage |
Current range |
Ripple & Noise |
Eff. |
|
P120P30000 |
12.0V |
0.1~30.0A |
120mV |
>85% |
|
P150P30000 |
15.0V |
0.1~30.0A |
150mV |
>85% |
|
P190P26000 |
19.0V |
0.1~26.0A |
190mV |
>85% |
|
P200P25000 |
20.0V |
0.1~25.0A |
200mV |
>85% |
|
P240P20000 |
24.0V |
0.1~20.0A |
240mV |
>85% |
|
P320P15000 |
32.0V |
0.1~15.0A |
320mV |
>85% |
|
P360P13800 |
36.0V |
0.1~13.8A |
360mV |
>85% |
|
P480P10000 |
48.0V |
0.1~10.0A |
480mV |
>85% |
|
P570P08800 |
57.0V |
0.1~8.8A |
570mV |
>85% |
Applications:
widely used in household appliances, IT digital products, medical equipments, communication equipments, instrumentations, bank data equipment, computer peripheral products, security monitoring system, industrial and light field equipment and other products.
