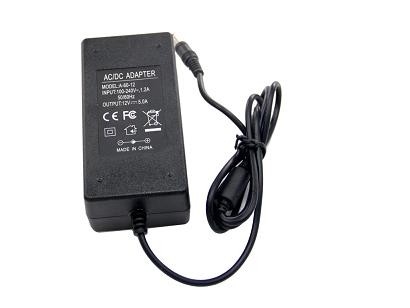

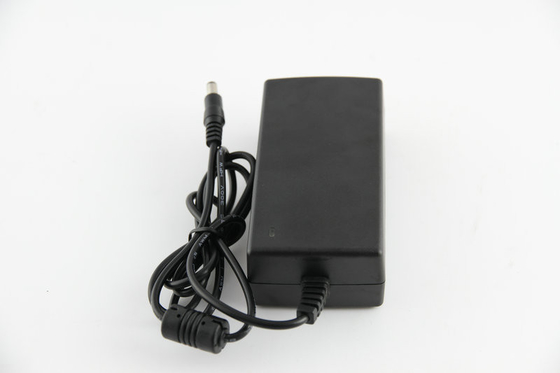

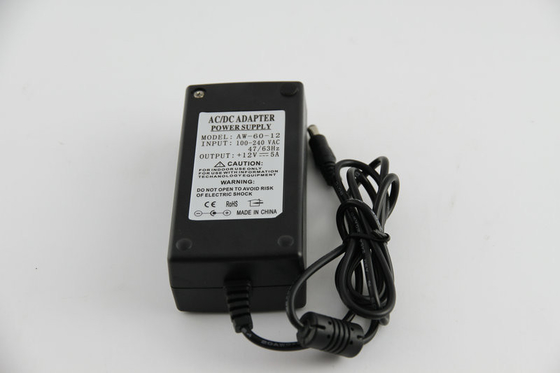

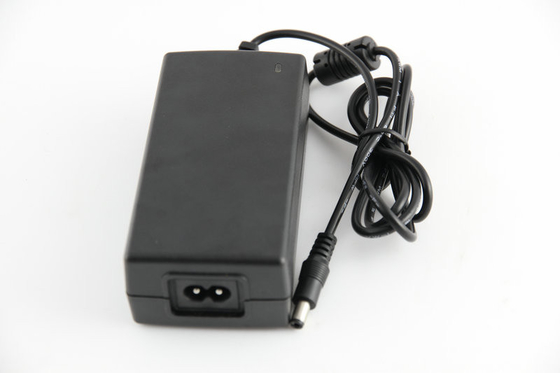

Portable Regulated Voltage AC DC Power Adapter 60W AC 110V - 220V , 12 Volt Power Adapter

Portable Regulated Voltage AC DC Power Adapter 60W AC 110V - 220V , 12 Volt Power Adapter

  • Portable Regulated Voltage AC DC Power Adapter 60W AC 110V - 220V , 12 Volt Power Adapter
  • Portable Regulated Voltage AC DC Power Adapter 60W AC 110V - 220V , 12 Volt Power Adapter
  • Portable Regulated Voltage AC DC Power Adapter 60W AC 110V - 220V , 12 Volt Power Adapter
  • Portable Regulated Voltage AC DC Power Adapter 60W AC 110V - 220V , 12 Volt Power Adapter
Portable Regulated Voltage AC DC Power Adapter 60W AC 110V - 220V , 12 Volt Power Adapter
Product Details:
Place of Origin: Shenzhen China
Brand Name: DongDaHua
Certification: CE & ROSH
Model Number: A-60-12
Payment & Shipping Terms:
Packaging Details: As for your requirement
Delivery Time: As per your order quantity
Payment Terms: T/T & L/C
Supply Ability: 8000 Pieces/Day
Contact Now
Detailed Product Description
Product Name: AC DC Power Adapter Input Voltage: AC110V---220V
Input Frequency: 47-63Hz Power: 60W
Safety Standards: GB4943, UL60950-1, EN60950-1 Certification: CE & ROSH
High Light:

International Power Adapter

,

AC To DC Power Adapters

Overload Protection Stable Switching AC DC Power Adapters 60W 12VDC 5A IP54 1500VAC / 1min




Specifications:


Product Electric Parameters

Input specification

Input voltage

AC110V---220V

Input frequency

47-63Hz

Input surge

20A@120VAC  40A@230VAC

Output specification

Output voltage can be adjusted

±10%

Start-up time

≦1S(input230V Io=100%)

keep time

≧20mS (input230V, Io=100%)

Voltage regulation

(Full load) ≦0.5%

Protection function

Overload protection

105% - 150% rated power,  automatic recovery

Over-voltage protection

105% - 150% of the rated voltage

Insulation intensity

Input---output

1500VAC/1min

Input---ground

1500VAC/1min

Input---ground

500VAC/1min

Safety standards

According with GB4943,  UL60950-1, EN60950-1 standards.

E M C standards

According with GB9254,  EN55022 class A EN61347-2-13:2008 standards

Environmental

working temperature

- 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost)

Storage temperature

- 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost)

height above sea level

≦2000M

Structure

Size (mm)

120(L)*55(W)*35(H)

Cooling method

Cooling method

Natural cooling air convection

Weight

0.29KG/PCS





Portable Regulated Voltage AC DC Power Adapter 60W AC 110V - 220V , 12 Volt Power Adapter




Competitive Advantage:

1.built-in EMI filter
2.100% load test
3.Full range of input voltage
4.output voltage accurate and stable
5.Output over-voltage,  over-current and short-circuit protection
6.Output low ripple and noise
7.Two year warranty
8.Average working  no trouble >50, 000 hours





Application:


It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.
