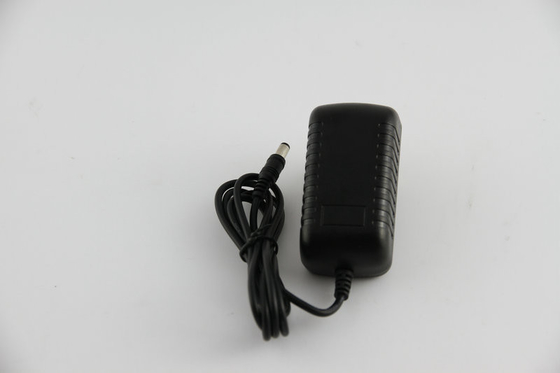

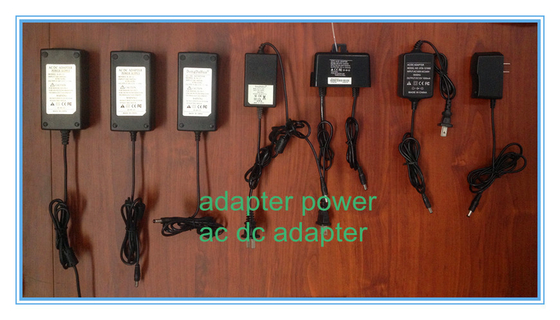

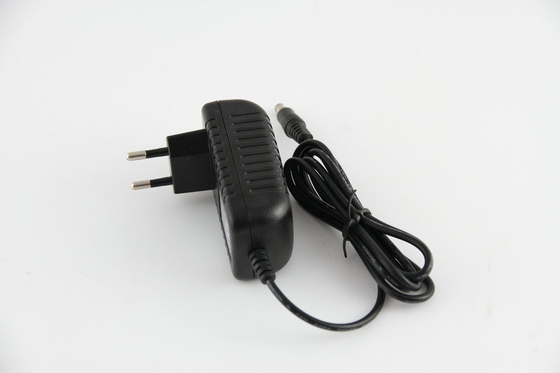

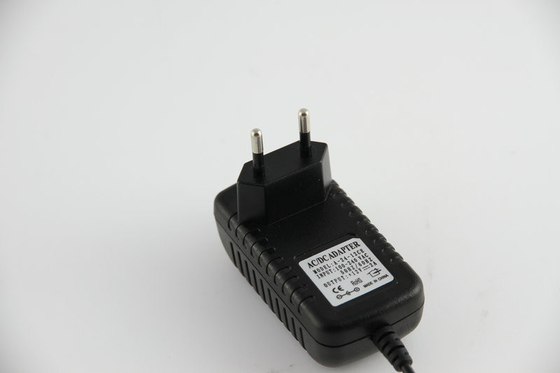

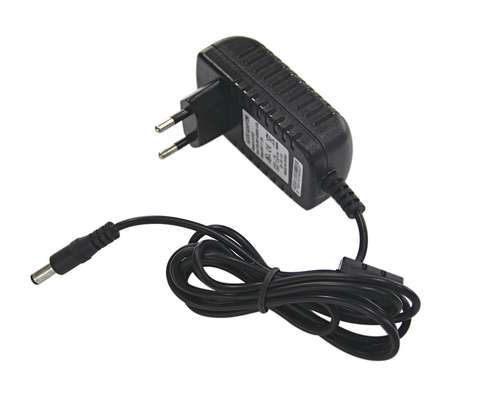

Name: 24 Watt Full Range 220 AC To DC Power Adapters 12V DC For LCD display , AC DC Adapter
Brand: Shenzhen Power Adapter Co.,Ltd.
SKU: A-24-12CE
Availability: InStock

Home Products Universal DC Power Adapter

24 Watt Full Range 220 AC To DC Power Adapters 12V DC For LCD display , AC DC Adapter

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	DongDaHua
Certification:	CE & ROSH
Model Number:	A-24-12CE

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	As for your requirement
Delivery Time:	As per your order quantity
Payment Terms:	T/T & L/C
Supply Ability:	8000 Pieces/Day

Contact Now

Detailed Product Description

Product Name:	AC DC Power Adapter	Input Frequency:	50-60Hz
Power:	24W	Input Voltage:	AC110V---220V
Safety Standards:	GB4943, EN60950-1	Output Voltage:	12V DC
Highlight:	International Power Adapter

24W 12V 2A 50Hz IP54 Over-current Protection Switching AC DC Adapters EN61347-2-13

Application:

It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.

24 Watt Full Range 220 AC To DC Power Adapters 12V DC For LCD display , AC DC Adapter

Competitive Advantage:

1.built-in EMI filter

2.100% load test

3.Full range of input voltage

4.output voltage accurate and stable

5.Output over-voltage, over-current and short-circuit protection

6.Output low ripple and noise

7.Two year warranty

8.Average working no trouble ＞50, 000 hours

Specifications:

Product Electric Parameters
Input specification	Input voltage	AC110V---220V
	Input frequency	50-60Hz
	Input surge	20A@120VAC 40A@230VAC
Output specification	Output voltage can be adjusted	±10%
	Start-up time	≦1S(input230V Io=100%)
	keep time	≧20mS (input230V, Io=100%)
	Voltage regulation	(Full load) ≦0.5%
Protection function	Overload protection	105% - 150% rated power, automatic recovery
Protection function	Over-voltage protection	105% - 150% of the rated voltage
Insulation intensity	Input---output	1500VAC/1min
	Input---ground	1500VAC/1min
	Input---ground	500VAC/1min
Safety standards	According with GB4943, EN60950-1 standards.
E M C standards	According with EN55022 class A EN61347-2-13:2008 standards
Environmental	working temperature	- 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost)
	Storage temperature	- 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost)
	height above sea level	≦2000M
Structure	Size (mm)	85(L)43(W)30(H)
Cooling method	Cooling method	Natural cooling air convection
Weight	0.145KG/PCS
