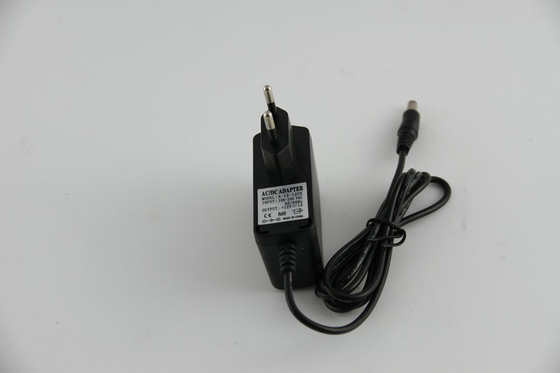

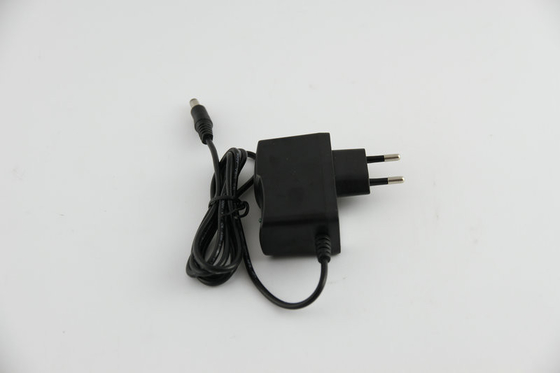

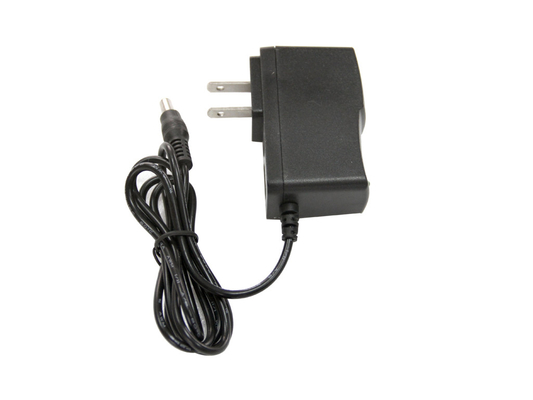

Energy Saving 12 W AC DC Power Adapters 240V AC , Universal Switching Power Adapter

Energy Saving 12 W AC DC Power Adapters 240V AC , Universal Switching Power Adapter

  • Energy Saving 12 W AC DC Power Adapters 240V AC , Universal Switching Power Adapter
  • Energy Saving 12 W AC DC Power Adapters 240V AC , Universal Switching Power Adapter
  • Energy Saving 12 W AC DC Power Adapters 240V AC , Universal Switching Power Adapter
Energy Saving 12 W AC DC Power Adapters 240V AC , Universal Switching Power Adapter
Product Details:
Place of Origin: Shenzhen China
Brand Name: DongDaHua
Certification: CE & ROSH
Model Number: A-12-12CE
Payment & Shipping Terms:
Packaging Details: As for your requirement
Delivery Time: As per your order quantity
Payment Terms: T/T & L/C
Supply Ability: 8000 Pieces/Day
Contact Now
Detailed Product Description
Product Name: AC DC Power Adapter Safety Standards: GB4943, EN60950-1
Input Voltage: AC110V---240V Input Frequency: 50-60Hz
Output Voltage: 12V DC Certification: CE & ROSH
High Light:

AC To DC Power Adapters

,

12v DC Power Adapter

Short-circuit Protection Switching AC DC Power Adapters 12W 12VDC 1A 60Hz IP54 EN60950-1





Competitive Advantage:



1.built-in EMI filter

2.100% load test

3.Full range of input voltage

4.output voltage accurate and stable

5.Output over-voltage,  over-current and short-circuit protection

6.Output low ripple and noise

7.Two year warranty

8.Average working  no trouble >50, 000 hours



Energy Saving 12 W AC DC Power Adapters 240V AC , Universal switching power adapter



Application:


It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.





Specifications:



Product Electric Parameters

Input specification

Input voltage

AC110V---240V

Input frequency

50-60Hz

Input surge

20A@120VAC  40A@230VAC

Output specification

Output voltage can be adjusted

±10%

Start-up time

≦1S(input230V Io=100%)

keep time

≧20mS (input230V, Io=100%)

Voltage regulation

(Full load) ≦0.5%

Protection function

Overload protection

105% - 150% rated power,  automatic recovery

Over-voltage protection

105% - 150% of the rated voltage

Insulation intensity

Input---output

1500VAC/1min

Input---ground

1500VAC/1min

Input---ground

500VAC/1min

Safety standards

According with GB4943,  , EN60950-1 standards.

E M C standards

According with EN55022 class A EN61347-2-13:2008 standards

Environmental

working temperature

- 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost)

Storage temperature

- 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost)

height above sea level

≦2000M

Structure

Size (mm)

75(L)*29(W)*46(H)

Cooling method

Cooling method

Natural cooling air convection

Weight

0.1KG/PCS
