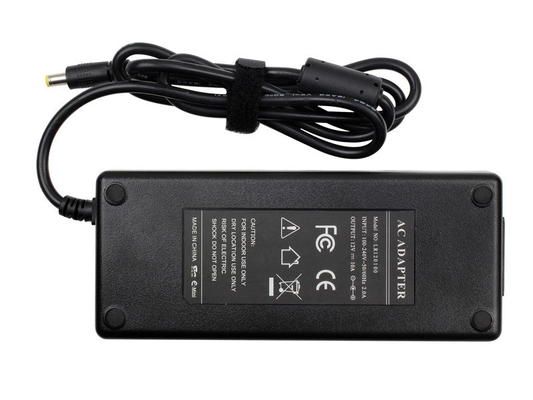

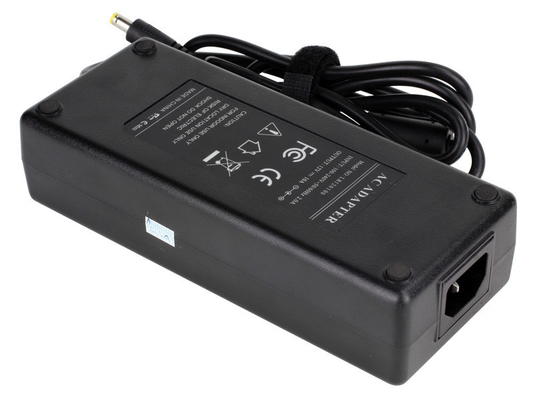

12v 10A Computer AC Adapter , Universal PC Power Adapter

12v 10A Computer AC Adapter , Universal PC Power Adapter

  • 12v 10A Computer AC Adapter , Universal PC Power Adapter
  • 12v 10A Computer AC Adapter , Universal PC Power Adapter
12v 10A Computer AC Adapter , Universal PC Power Adapter
Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: e.mini
Certification: CE/RoHS
Model Number: E-12V10A-LR120100
Payment & Shipping Terms:
Minimum Order Quantity: 20 Pieces
Packaging Details: Work Bin and Handle Box
Delivery Time: Within 2-7 working days after getting deposit
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 25000 Pieces per Month
Contact Now
Detailed Product Description
Efficiency: 75% Min, At 115/230Vac Input Voltage,1/4,1/2,3/4 And Full Load Calculation Average Efficiency Protection: Short Circuit Test,Over Current Protection,Over Voltage Protection
Input Voltage: Rated Voltage: 100~240Vac Variation Range: 90-264Vac Input Frequency: Rated Frequency: 50/60Hz Variation Frequency: 47-63Hz
Production Name: Computer AC Adapter
High Light:

computer ac adapters

,

computer power adapter



12v 10A Computer AC Adapter , Universal PC Power Adapter



Wholesale Cheapest 12v 10a Adaptor/Ac Power Adapter



Specification:



Model:

E-Mini Adapter(10A)-LR120100

Type:

ITX Power, DC-ITX Power Adapter, LCD, LED Display Adapter and Laptop Adapter

Parameter:

1,   Standard round mouth output interface: 2.5mm inner diameters, 5.5mm outer diameter; 12V output voltage, 120W output power
2, Input voltage: 90-260Vac
3, Features: overcurrent protection, overvoltage protection and overheat protection etc.
4, Weight: 0.52KG



12v 10A Computer AC Adapter , Universal PC Power Adapter 0



1 DESCRIPTION:



The purpose of the document is to specify the functional requirements of a 120W switching power supply.



2 INPUT CHARACTERISTICS:



2.1 Input Voltage:

Rated Voltage: 100~240Vac

Variation Range: 90-264Vac



2.2 Input Frequency:

Rated Frequency: 50/60Hz

Variation Frequency: 47-63Hz



2.3 Input Current:

2.0Amps max at any input voltage and rated, DC output rated load.



2.4 Inrush Current:

120 Amps Max Cold start at 240Vac input, with rated load and 25℃ ambient



2.5 Ac Leakage Current:

0.25mA Max.At240Vac input.





3 OUTPUT CHARACTERISTICS:



3.1 Power output



Voltage

Min. Load

Rated. Load

Standby power

Output power

12Vdc

0.01A

10A

1.0W Max

120W





3.2 Combined Load/Line Regulation



Voltage

Min. Load

Rated. Load

Line Regulation

Load Regulation

12Vdc

0.01A

10A

±1%

±5%





3.3Ripple and Noise:

   Under nominal voltage and nominal load the ripple and noise are as follows when measure with Max Band width of 20MHz and Parallel 47uF/0.1uF, crossed connected at testing point.

Voltage                Ripple and Noise (Max.)

+12Vdc                 120mV p-p



3.4 Turn on delay time:

3Second Max at 115Vac input and output Max load



3.5 Rise time:

40 mS Max at 115Vac input and output Max load



3.6 Hold up time:

5 mS Min at 115Vac input and output Max Load



3.7 Efficiency:

  75% Min, At 115/230Vac input voltage,1/4,1/2,3/4 and full load calculation average efficiency.





4 PROTECTION FUNCTION:



4.1 Short circuit test:

The power supply will be auto recovered when short circuit faults remove.



4.2 Over current Protection:

The power supply will be auto recovered when over current faults remove.



4.3 Over Voltage Protection:

The power supply will auto recovered when faults remove 120%~170%.





5 ENVIRONMENTAL REQUIREMET:



5.1Operating Temperature:

0℃ to 40℃, Full load, Normal operation



5.2 Storage Temperature:-20℃ to 80℃    With package



5.3 Relative Humidity:

5%(0℃)~90%(40℃)RH,72Hrs,Full load, Normal operating.



5.4 Vibration:

       Operating: IEC 721-3-3 3M3

        5~9Hz, A=1.5mm

9~200Hz, Acceleration 5m/S2



Transportation:

IEC 721-3-2 2M2

5-9Hz, A=3.5mm

9~200Hz, Acceleration=5m/S2

200~500Hz, Acceleration=15m/S2



Axes, 10 cycles per axis

No permanent damage may occur during testing.

       The SAMPLE has to restore to its original situation after power off/on.



5.5 Dropping Packed:

1M for wall mount type and 760mm for desktop type as above described.

The horizontal surface consists of hardwood at least 13mm thick, mounted on two layers of plywood each 19mm to 20mm thick, all supported on a concrete or equivalent non-resilient floor.





6 SAFETY REQUIREMENT:



6.1Safety: accord with

6.2 DIELECTRIC STRENGTH Hi-Pot:

 Primary to secondary: 1800Vac10mA/3S for type test.



6.3 Insulation resistance:

Primary to secondary: 10MΩ min at 500V DC.



6.4 EMI STANDARD

Meets the Limits of

<1>. Fcc part15 class B rules



<2>.EN55022 class B rules

<3>.GB9254-1998, GB17625.1-2003





7 MECHANICAL REQUIREMENT:



7.1 Enclosure:

The power supply size: L170 x W72 x H41.5mm;

7.2 input Connector:

IEC-320-C14

12v 10A Computer AC Adapter , Universal PC Power Adapter 1







8 CORD



12v 10A Computer AC Adapter , Universal PC Power Adapter 2



9 LABEL:



12v 10A Computer AC Adapter , Universal PC Power Adapter 3
