Name: Kutai GCU-10 Electronic Engine Governor Controller Generator Control Unit 9V to 36 V DC
Brand: Shenzhen Power Adapter Co.,Ltd.
SKU: GCU-10
Availability: InStock

Home Products Universal DC Power Adapter

Kutai GCU-10 Electronic Engine Governor Controller Generator Control Unit 9V to 36 V DC

Product Details:

Place of Origin:	China
Brand Name:	Kutai
Certification:	CE / Rohs
Model Number:	GCU-10

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	negotiation
Packaging Details:	Packaging with product box first, and then by Courier carton
Delivery Time:	Within 3 working day after receiving the payment.
Payment Terms:	L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability:	3000 pieces per Month

Contact Now

Detailed Product Description

DC Supply:	9V To 36V	Frequency:	50~60 Hz
Panel Installation Cut-Out:	66.0 X 66.0 ±0.5 Mm	Power Consumption:	Under 3 VA On Auto
Alternator Input Range:	Voltage 5~300 VDC	Engine Idle (Governor):	0~300 Sec.
Engine Pre-Heat:	2~30 Sec.	Operation Temperature:	-20~70 °C
Relative Humidity:	Maximum 90%
Highlight:	diesel generator parts

Kutai GCU-10 Electronic Engine Governor controller Generator control unit, DC Supply: Voltage 9 to 36 VDC

Features

Microprocessor Based Design
Universal LED Graphic Interface, Displays Generator Status and Failures
Modular Design, Quick Installation
Programmable Engine & Generator Controls Adapts Easily To Any Type Generator Set.
Waterproof Front Panel With UV Protection
Provide IDLE control For Elec. Governors
Five Adjustable Time Delay Potentiometers

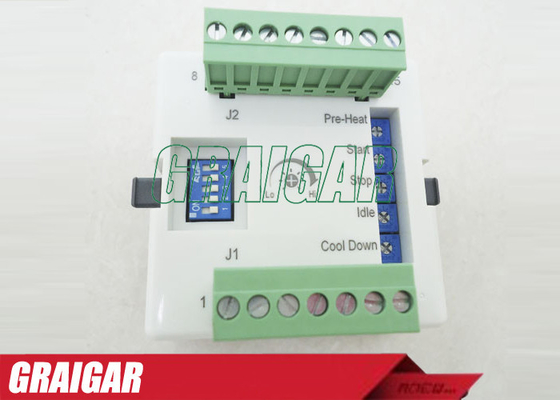

Five DIP Switches For Specification Setting

Specifications

DC Supply	Voltage 9 to 36 VDC
Alternator Input Range	Voltage 5~300 VDC Frequency 50~60 Hz
Fuel Solenoid Signal Output	5 Amp @ 12/24 VDC
Start Signal Output	5 Amp @ 12/24 VDC
Warm up Signal Output	5 Amp @ 12/24 VDC
Accessory " ON " Output	5 Amp @ 12/24 VDC
Idle Control Conductor Capacity	5 Amp @ 12/24 VDC
Power Consumption	Under 3 VA on Auto
Protection & Alarm Status Indicators	Start Failure High Water Temperature Low Oil Pressure Overspeed Underspeed Emergency Stop Extra Prog. Input Low Battery Voltage
Adjustable Timers	Engine Pre-Heat : 2~30 Sec. Starter Cranking Time : 1~15 Sec. Energize to STOP : 1~30 Sec. Engine Idle (Governor) : 0~300 Sec. Engine Cool-down : 0~300 Sec.
Environment	Operation Temperature : -20~70 °C Relative Humidity : Maximum 90%
Panel Installation Cut-Out	66.0 x 66.0 ±0.5 mm
Dimensions	72.0 (L) x 72.0 (W) x 50.0 (H) mm
Weight	166g ±2%

We supply Kutai Series Control Panel as the following:

Generator control units

AMF-10    GCU-20    DSP-10     DSP-30       DSP-52   ECU-02
ECU-04/ECU-05       GCU-10    GCU-100     GCU-2000
GCU-3000            RA-20

Generator controller accessories

AMF-10R ECU-11/ECU-22 ECU-40 GCU-11R
KCU-01/KCU-02/KCU-03
PTU-03 PS-01 TS-01
