VGA / HMDI / AV 12V DC 10.4 Inch Chassis Monitor With LED Backlight

VGA / HMDI / AV 12V DC 10.4 Inch Chassis Monitor With LED Backlight

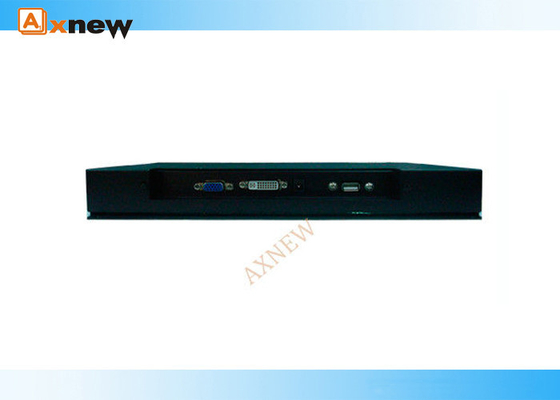

  • VGA / HMDI / AV 12V DC 10.4 Inch Chassis Monitor With LED Backlight

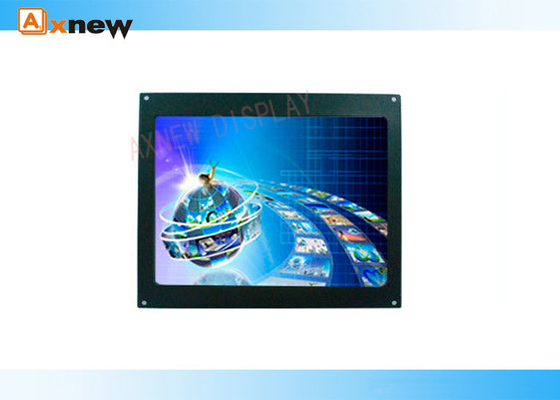

  • VGA / HMDI / AV 12V DC 10.4 Inch Chassis Monitor With LED Backlight

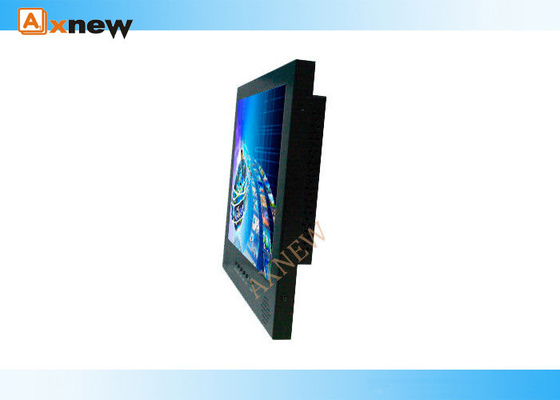

  • VGA / HMDI / AV 12V DC 10.4 Inch Chassis Monitor With LED Backlight
VGA / HMDI / AV 12V DC 10.4 Inch Chassis Monitor With LED Backlight
Product Details:
Place of Origin: China
Brand Name: AXNEW
Certification: CE/FCC/ROHS
Model Number: AXD-10OPN1IP-V1(VGA/HDMI/DVI)
Payment & Shipping Terms:
Minimum Order Quantity: 5 Pieces
Price: US$100~200/Unit
Packaging Details: 5 Pcs /Carton with firm foam
Delivery Time: 10-15 working days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 5000 pieces/month
Contact Now
Detailed Product Description
Screen Size: 10.4 Inch Pixel: 800x600
Contrast Ratio: 500:1 Brightness: 300cd/m^2
Input Signal: VGA/DVI Viewing Angle: 150(H)/120(V)
Monitor Type: Touch Screen
High Light:

HMDI lcd Monitor

,

industrial touch screen display



10.4 Inch Chassis Monitor  LCD Screens 4:3 VGA HMDI AV LED Backlight 12V DC





Quick Details:



Model:AXD-10OPIPN1-V2

Screen Size:10.4’’

Screen format: 4:3

Display Resolution(pixel):800x600

Contrast Ratio:500:1

Brightness:300cd/m^2

Storage temperature : -20℃~70℃

Input signal: VGA DVI

Power Input: AC100~240 V /DC 12V

Product status: In production



10.4  inch open frame monitor with VGA DVI input and LED backlight(  touch options)

used for Automatic equipments, Advertising , vending embedded system etc . Resistive Touch

optional for your needs.





Features and Advantages

1.New and A grade perfect panels with stable supply

2. industrial control board supports the displays working 24 hours

3. Professional and industrial hardware and parts to guarantee its working normally in rough environment

4.Open frame with front panel frame design on the surface, rugged mounted frame to protect the LCD screen

5. VGA DVI;HDMI interfaces ;USB touch interface options if needed

6. 10.4 inch open frame monitor for application control , advertising player ,campus and industrial terminals etc





Specifications datasheet





LCD monitor information



Model Number

AXD-10OPN1IP-V1( VGA;HDMI )

10.4’’ Open frame LCD Monitor

Type

10.4 “ TFT Active Matrix LCD with LED Backlight

Active Display Area(mm)

211.2 (H)x158.4(V)

Pixel Pitch(mm)

0.264(H)x0.264(V)

Resolution

800 x 600, up to 1024X768

Contrast Ratio

500:1 (typ.)

Display Color

16.2 M colors

Brightness

300(Typ)

Viewing Angles

150(H);120(V)

Response Time

8ms

Environmental Temperature



Operating Temperature

-10℃~60℃

Storage Temperature

-20℃~70℃

Signal Input



PC

RGB analog VGA; DVI-D;HDMI

RGB Frequency

H:31.5~38kHz, V:50~60Hz

Power Specification



Voltage Consumption

AC 100~240V,Universal,±10% ; AC/DC 12V4A

3.3W typical, normal operation

Touch Screen Optional

Resistive Touch; Capacitive Touch; SAW; Infrared Touch options

Dimensions

Holes fixings

rugged metal frame Vesa mounting 75x75

Mechanical dimensions

230.5 x 181.5x 29.9 (mm)

Drawings

Please contact us for details



Packaging & Delivery


Packing details

1x 10.4 inch Touch Screen Digital Signage ;

Packed in 5 pieces/carton with protection foam
Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter

Delivery terms

7- working days for stock products after receiving payments;  15 working days for order production
