| Place of Origin: | Guangdong China |
| Certification: | GS,CE,BEAB,C-TICK,UL1310,CCC |
| Model Number: | KSAP004 |
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | PE bag + White box |
| Delivery Time: | 20days |
| Payment Terms: | T/T |
| Supply Ability: | Shenzhen HongKong |
| High Light: | Universal Power Adapters,universal notebook power adapter |
||
|---|---|---|---|

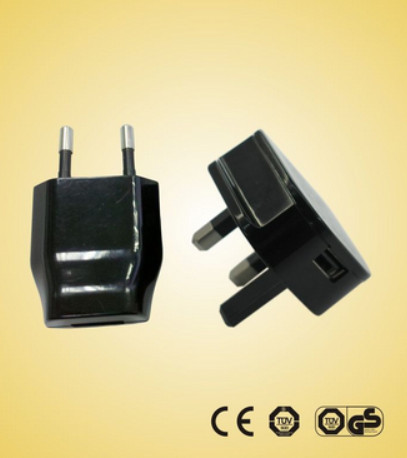

4W 100v / 120v / 240V 15A - 30A universal USB power adapter for mobile device
Key Features of KSAP004 series
●Light, extra slim, sleek, compact design
●Green power, full complies with CEC level V, MEPS V EUP2011
●High power density
●Extra safe design, have got their respective safety approvals
●Completed protect function
Key Applications of KSAP004 series
It’s suitable for an extremely wide range of applications, including:
●Mobile Devices(IPHONE, BLACK BERRY etc)
●MP3, MP4
●Set-top-box
●ADSL
●Audio & Video product
●Household appliance
●Charger
●Input Voltage : 90 to 264 VAC
●Frequency : 47-50/60-63hz
●Input current : 0.1A(Max) 100 /240VAC
●Inrush current : 15AMax. 120VAC at max. Load
30AMax.240VAC at max. Load
●Leakage current : 0.25 mA Max
●Over voltage protection
●Over current protection
at 110-180% of lo and Auto-recovery
●Electronic short circuit protection
●Operatingtemperature 0~40℃Free convection
●Operating humidity 10-90% RH Non Condensing
●Sea level Non-operating temperature -20~80℃
●Information technology equipment
●IEC/EN 60950-1
●CB , GS , CE , TUV
●Radiation Test&Conduction Test: EN 55022/FCC Part 15
●Harmonic Test:EN 61000-3-2
●Flicker Test:EN 61000-3-3
●ESD Test:EN 61000-4-2
●RS Test:EN 61000-4-3
●EFT Test:EN 61000-4-4
●Surge Test:EN 61000-4-5
●CS Test:EN 61000-4-6
●DIP Test:EN 61000-4-11
Dimension L*W*H (mm) : Net unit 49.9* 47.4 * 20.9 Dimension L*W*H (mm) : 38.7 *35.3* 21
