Home ProductsUniversal USB Power Adapter

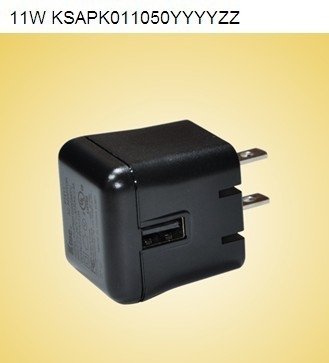

5V 1.2A Universal USB Power Adapter Charger for Household Appliance and Mobile Devices

5V 1.2A Universal USB Power Adapter Charger for Household Appliance and Mobile Devices

  • 5V 1.2A Universal USB Power Adapter Charger for Household Appliance and Mobile Devices
5V 1.2A Universal USB Power Adapter Charger for Household Appliance and Mobile Devices
Product Details:
Place of Origin: Guangdong,China
Certification: CB , GS , CE ,TUV, UL , CCC , FCC,PSE,C-TICK
Model Number: 11W KSAPK011050YYYYZZ
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiable
Packaging Details: As per customers' requirement
Delivery Time: 30 days
Payment Terms: T/T, Negotiable for OEM
Supply Ability: 1Million/Month
Contact Now
Detailed Product Description
High Light:

Power AC Adapter

,

universal notebook power adapter



5V 1.2A Universal USB Power Adapter Charger for Household Appliance and Mobile Devices

Quick Detail:

1. 11W KSAPK011050YYYYZZ

2. voltage from 4.75V to 5.25V

3. current from 0.01A to 2.1A

Input: •Input Voltage:   100 to 240 VAC
•Frequency :      47-50/60-63hz
•Input current :  0.5A (Max) 100 /240VAC
•Inrush current : 60A Max. at max. Load
•Leakage current :0.25 mA Max
Output: •Output voltage:5.0V,current: 10mA-2100mA
•Green power, full complies with CEC level V, MEPS V, EUP2
•With OVP protection
•With OCP protection at 110-200% of Io and auto- recovery
•Average efficiency 78% Measured at 25℃
•Operating temperature: 0~40℃ Free convection
•Operating humidity:10-90% RH Non Condensing
•Sea level Non-operating temperature: -20~ 80℃
Safety standards: •Information technology equipment
•IEC/EN 60950-1, UL 60950-1, CSA C22.2
•No. 60950-1-03,GB4943
Certificates and approvals: •CB , GS , CE ,TUV, UL , CCC , FCC,PSE,C-TICK
EMI Emission: •Radiation Test&Conduction Test:  EN 55022/FCC Part 15
•Harmonic Test : EN 61000-3-2
•Flicker  Test : EN 61000-3-3
EMS immunity: •ESD   Test:EN 61000-4-2
•RS    Test:EN 61000-4-3
•EFT   Test:EN 61000-4-4
•Surge Test:EN 61000-4-5
•CS    Test:EN 61000-4-6
•DIP   Test:EN 61000-4-11
Key Applications: Key Features of KSUFB series

•Green power, full complies with CEC level V, MEPS V EUP2011
•Extra safe design, have got their respective safety approvals
•Completed protect function

Key Applications of KSUFB series

It’s suitable for an extremely wide range of applications, including:
•Mobile Devices
•Excellent Flat Computer Charger with extra safe designn
•Set-top-box
•ADSL
•Audio & Video product
•Household appliance
•Charger
•Panel pad
Payment Details: •Payment Terms: T/T,negotiable for OEMs
Main Export Markets: • Eastern Europe
• North America
• Mid East/Africa
• Central/South America
• Asia
• Western Europe
• Australasia

5V 1.2A Universal USB Power Adapter Charger for Household Appliance and Mobile Devices 0

5V 1.2A Universal USB Power Adapter Charger for Household Appliance and Mobile Devices 1

5V 1.2A Universal USB Power Adapter Charger for Household Appliance and Mobile Devices 2
