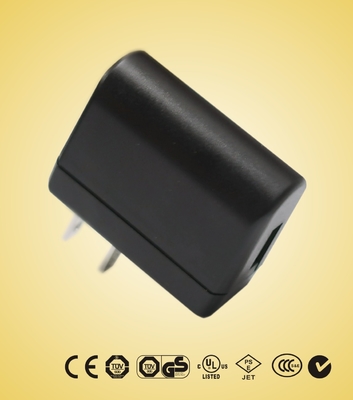

Name: Green Power Supply 3.5W 120v AC Universal USB Power Adapter For Set-top-box, ADSL, Charger
Brand: Shenzhen Power Adapter Co.,Ltd.
SKU: KSAS3R5
Availability: InStock

Home Products Universal USB Power Adapter

Green Power Supply 3.5W 120v AC Universal USB Power Adapter For Set-top-box, ADSL, Charger

Product Details:

Place of Origin:	Guangdong China
Certification:	US,UK,EU,AU
Model Number:	KSAS3R5

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Price:	negotiable
Packaging Details:	PE+ white box
Payment Terms:	T/T
Supply Ability:	1M/Month
FOB:	Shenzhen Hongkong

Contact Now

Detailed Product Description

Highlight:	Universal Power Adapters

Green Power Supply 3.5W 120v AC Universal USB Power Adapter For Set-top-box, ADSL, Charger

Key Features of KSAS3R5 series

●Green power, full complies with CEC level V, MEPS V EUP2011

●High power density

●Extra safe design, have got their respective safety approvals

●Completed protect function

Key Applications of KSAS3R5 series

It’s suitable for an extremely wide range of applications, including:

●Mobile Devices

●Set-top-box

●ADSL

●Audio & Video product

●Household appliance

●Charger

Input

●Input Voltage : 90 to 264 VAC

●Frequency : 47-50/60-63hz

●Input current : 0.15A(Max) 100 /240VAC

●Inrush current : 15AMax. 120VAC at max. Load

30AMax.240VAC at max. Load

●Leakage current : 0.25 mA Max

Output

●Over voltage protection

●Over current protection

at 110-200% of lo and Auto-recovery

●Electronic short circuit protection

●Operatingtemperature 0~40℃Free convection

●Operating humidity 10-90% RH Non Condensing

●Sea level Non-operating temperature -20~80℃

Safety standards

●Information technology equipment

●IEC/EN 60950-1, UL 60950-1, CSA C22.2

No. 60950-1-03, GB4943

Certificates and approvals

●CB , GS , CE , TUV, UL , CCC , FCC, PSE, C-TICK

EMI Emission

●Radiation Test&Conduction Test: EN 55022/FCC Part 15

●Harmonic Test : EN 61000-3-2

●Flicker Test : EN 61000-3-3

EMS immunity

●ESD Test:EN 61000-4-2

●RS Test:EN 61000-4-3

●EFT Test:EN 61000-4-4

●Surge Test:EN 61000-4-5

●CS Test:EN 61000-4-6

●DIP Test:EN 61000-4-11

Mechanical SPEC

Dimension L*W*H (mm) : 54.0 * 24* 40.5

Green Power Supply 3.5W 120v AC Universal USB Power Adapter For Set-top-box, ADSL, Charger 0

Product tables for 3.5W

Green Power Supply 3.5W 120v AC Universal USB Power Adapter For Set-top-box, ADSL, Charger 1

Packing & shipping

Green Power Supply 3.5W 120v AC Universal USB Power Adapter For Set-top-box, ADSL, Charger 2

Down Load

Click Down
