Name: AC100-240V Universal USB Power Adapter 5V 1000mA CCC Plug , High Efficency
Brand: Shenzhen Power Adapter Co.,Ltd.
SKU: ETU050100-3
Availability: InStock

Home Products Universal USB Power Adapter

AC100-240V Universal USB Power Adapter 5V 1000mA CCC Plug , High Efficency

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	RAYTOP
Certification:	CE, RoHS, FCC
Model Number:	ETU050100-3

Payment & Shipping Terms:

Minimum Order Quantity:	1000 Pieces
Price:	Negotiable
Packaging Details:	PE Bag/ Color Box/White Box, Master Carton
Delivery Time:	15-20 work days.
Payment Terms:	T/T, L/C
Supply Ability:	500,000 Pcs

Contact Now

Detailed Product Description

Application:	IPhone 4g/4s, IPhone 5g/5s	Approval:	CE, RoHS, FCC, UL
EMI Standards:	FCC Part 15B	Feature:	High Efficency
Input:	AC100-240V	Operating Temperature:	0~40℃
Plug:	US, SAA, CCC	Product Name:	USB Power Adapter
Protection:	SCP, OVP, OCP
Highlight:	portable universal usb charger

AC100-240V Universal USB Power Adapter 5V 1000mA CCC Plug , High Efficency

Quick Detail:

-Input Voltage: AC100-240V, 50/60Hz;

-Output Voltage& Current : USB 5V, 1.0A;

-Efficiency: ≥85%;

-Operating temperature: 0 ~ 40°C;

-Storage temperature: - 20°C to 70°C;

-Protection: SCP/OVP/OCP;

-Cable and different connectors configuration for choice.

-UL/CUL certified.

-2 Year Warranty.

Description:

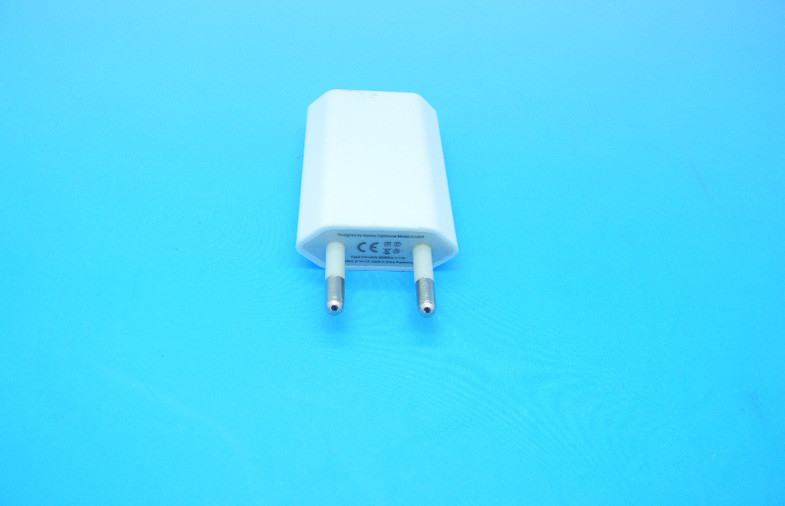

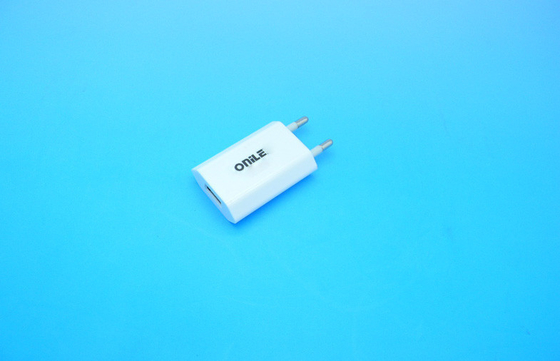

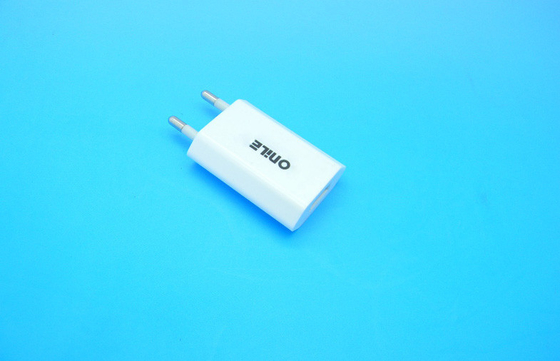

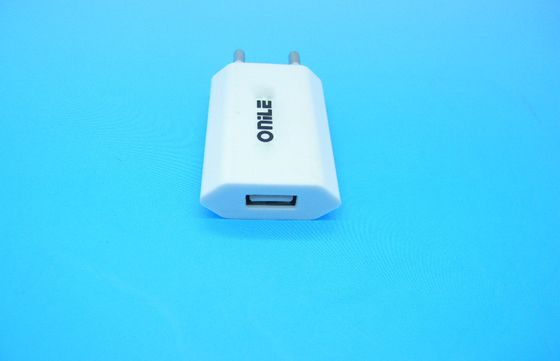

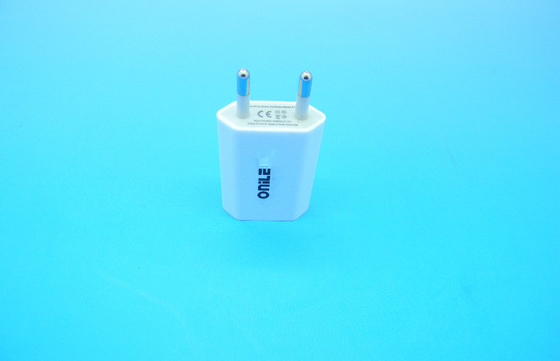

USB power adapter, 5V, 1.0A, mini size, special usage for Apple mobile phone.

Applications:

Compatible with Apple mobile phone, iPhone, iPod, MP3, MP4 PDA etc.

Specifications:

Input	Rated Input Voltage	AC100~240V
	Input Voltage Range	AC 90~264V
	Rated Frequency	50/60 Hz
	Input Frequency Range	47~63 Hz
	Input AC Current	100mA
	Inrush Current	30A
Output	Rated Output Voltage	DC5V
	Output Voltage	DC5V+/-0.5V
	Rated Output Current	1.0A
	Rated Power	Max.5W
	Ripple and Noise	150mV p-p
	Standby Power Consumption	0.3W
	Turn-on	5s
	Hold-up	20s
	Over Voltage Protection	Yes
	Over Current Protection	Yes
	Short Circuit Protection	Yes, automatically recover after short circuit removed.
Reliability	Hi-pot	3750Vac
	Insulation Resistance	Input to output at 500Vdc
	Leakage Current	5mA
	EMI Standards	FCC Part 15B Class B
	RoHS Compliant	Yes
	MTBF	50,000 hours
	Burn-in	40+/-5 ℃, full load, 12 hours
	Drop Test	6 direction, each one time from height 1.0M
Environmental	Operating Temperature	0~40℃
	Operating Humidity	10~80%
	Storage Temperature	-20~65℃
	Storage Humidity	0~90%
Safety Approvals	CE, RoHS, FCC, UL, SAA
Warranty	2 Years
