UK / US 90W Universal Laptop Power Adapter Automatic 5V 2.1A USB With LED

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	RAYTOP
Certification:	CE, RoHS, FCC
Model Number:	ETL1600400C

Payment & Shipping Terms:

Minimum Order Quantity:	2K
Price:	Negotiable
Packaging Details:	Gift box or blister,20 pcs per carton, customer package available.
Delivery Time:	20-25 work days.
Payment Terms:	T/T, L/C
Supply Ability:	30000 Pcs monthly.

Contact Now

Detailed Product Description

AC Cable:	1.2M	Application:	Delta, HP, IBM, Gateway, Liteon
Approval:	CE, RoHS, FCC, SAA, UL	DC Cable:	1.2M
EMI Standards:	FCC Part 15B	Function:	Automatic
Input:	AC100-240V	Output Power:	90W
Plug:	EU, US, SAA, CCC, UK	Product Name:	Universal Laptop Power Adapter
Protection:	Short Circuit, Over Voltage, Over Current	Operating Temperature:	0~40℃
High Light:	universal notebook power adapter , universal laptop power supply

UK / US 90W Universal Laptop Power Adapter Automatic 5V 2.1A USB With LED

Quick Detail:

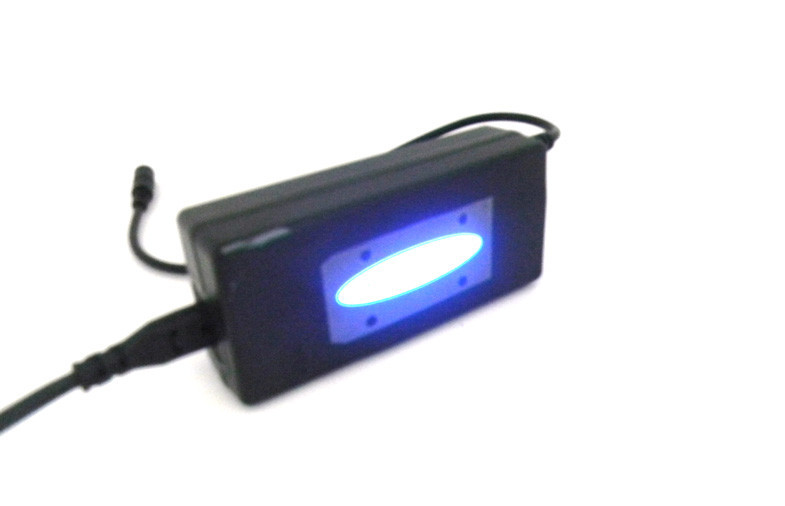

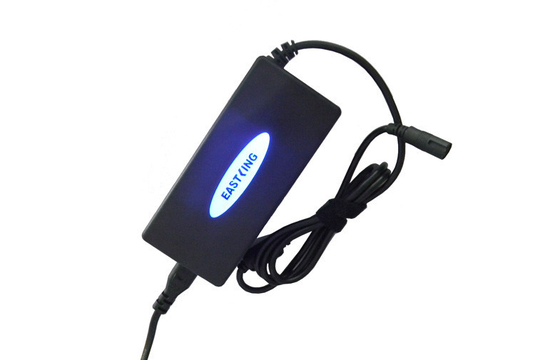

Universal laptop adapter 90W, automatic voltage DC 15-20V, with 1x USB port, 5V, 2.1A. The adapter has unique design come with LED luminous epoxy on the top cover. Customer logo will be added in the center of the LED ring to promote the brand image.

Specs:

Input: AC100-240V, 1.8A max.

Output: DC15/16/18/18.5/19/20V

Power Cord:

AC Cable: 2x0.75mm2, length: 1.2M

DC Cable: 18AWG, Copper, length: 1.2M

AC Plug: EU, UK, US, SAA, CCC

Features:

- Worldwide input voltage 100~240Vac;

- High efficiency, up to 88%;

- Exclusive model, attractive appearance.

- Protection: Short circuit protection, over voltage protection, over current protection.

- 10 different output connectors for top brands laptops.

- MTBF: 50,000 hours.

Approval: CE, RoHS, FCC

Warranty: 2 years

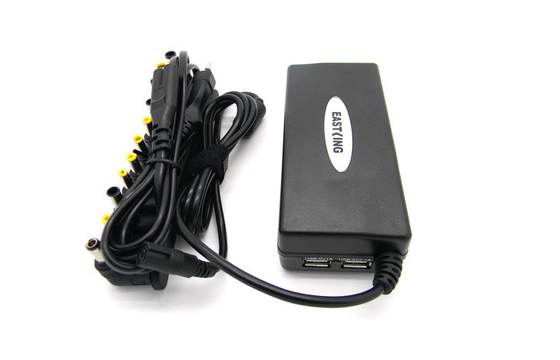

Contents: 1Adapter + 1AC Cable+1DC Cable +10 Connectors

Description:

This is an universal laptop AC Adapter come with unique design and 10 exchangeable and automatic tips, have great compatibility with most top brand notebooks, such as Acer, Asus, Toshiba, Sony, Delta, HP/Compaq, Lenovo, IBM,Gateway, Liteon etc. This adapter have automatic output voltage 15/16/18/18.5/19/20. Also it has compact design and high efficiency, very easy to carry and can charge your laptops quickly on going.

Note: please select correct output voltage before connecting the adapter with your laptops.

Applications:

External power supply, used to charge most top brand laptops/notebooks, such as Acer, Asus, Toshiba, Sony, Delta, HP/Compaq, Lenovo, IBM,Gateway, Liteon etc. It can also charge personal devices simultaneously like smart phones, tablet, iPhone 4g/4s, iPhone 5g/5s, iPad, iPod and so on when using your laptops.

Specifications:

Input	Rated Input Voltage	AC100~240V
	Input Voltage Range	AC 90~264V
	Rated Frequency	50/60 Hz
	Input Frequency Range	47~63 Hz
	Input AC Current	1.8A
	Inrush Current	30A
Output	Rated Output Voltage	DC 15~20V
	Output Voltage	DC15/16/18/18.5/19/20V
	Rated Output Current	4.5A
	USB Output	5V 1.0A + 5V 2.1A
	Rated Power	90W
	Ripple and Noise	120mV p-p
	Standby Power Consumption	0.5W
	Turn-on	5s
	Hold-up	20s
	Over Voltage Protection	Yes
	Over Current Protection	Yes
	Short Circuit Protection	Yes, automatically recover after short circuit removed.
Reliability	Hi-pot	3000Vac
	Insulation Resistance	Input to output at 500Vdc
	Leakage Current	5mA
	EMI Standards	FCC Part 15B Class B
	RoHS Compliant	Yes
	MTBF	50,000 hours
	Burn-in	40+/-5 ℃, full load, 4 hours
	Drop Test	6 direction, each one time from height 1.0M
Environmental	Operating Temperature	0~40℃
	Operating Humidity	10~80%
	Storage Temperature	-20~65℃
	Storage Humidity	0~90%
Safety Approvals	CE, RoHS, FCC, UL, SAA
Warranty	2 Years
