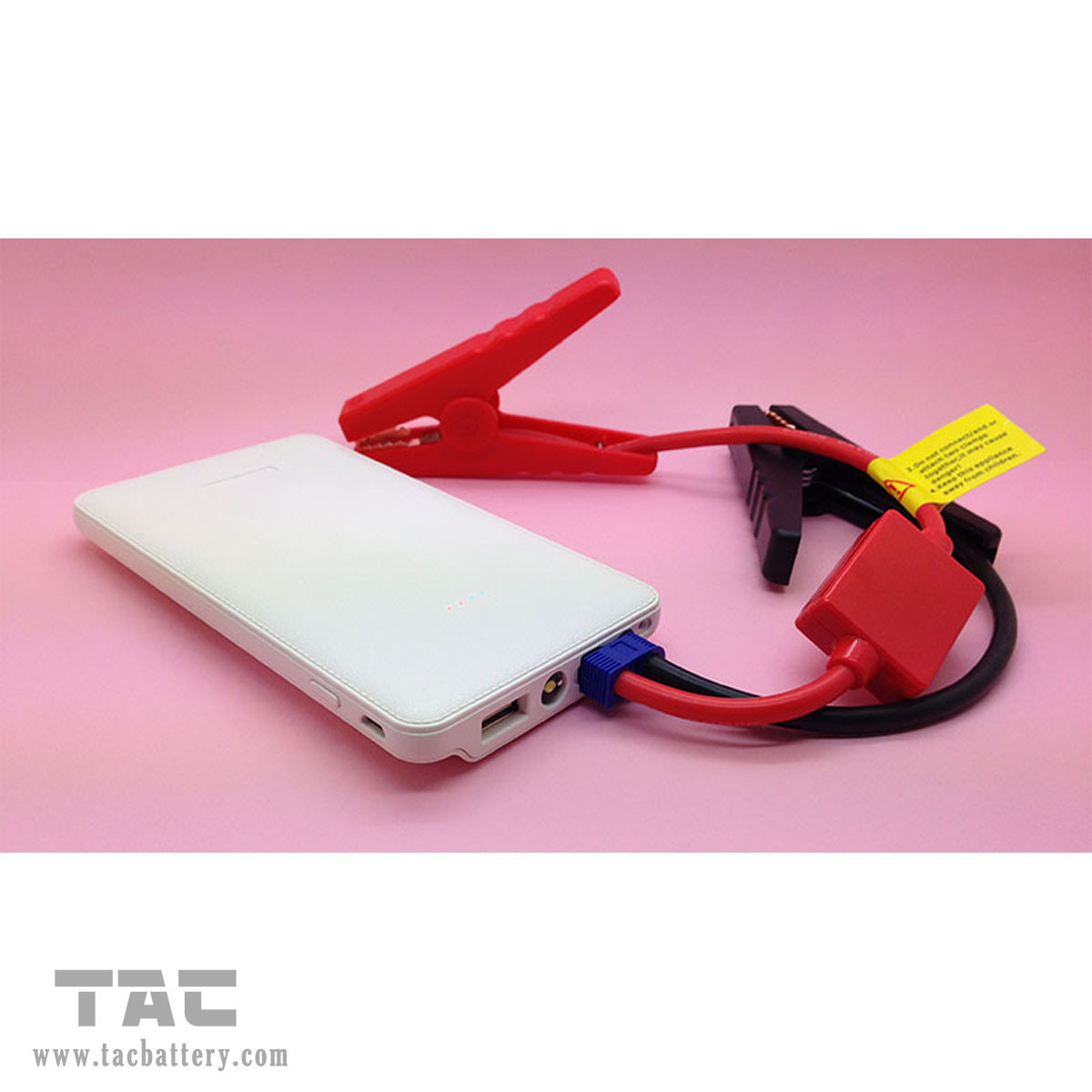

Ultra Thin USB Portable Truck Jump Starter Power Bank 5400mAH 5V

Ultra Thin USB Portable Truck Jump Starter Power Bank 5400mAH 5V

  • Ultra Thin USB Portable Truck Jump Starter Power Bank 5400mAH 5V
  • Ultra Thin USB Portable Truck Jump Starter Power Bank 5400mAH 5V
  • Ultra Thin USB Portable Truck Jump Starter Power Bank 5400mAH 5V
  • Ultra Thin USB Portable Truck Jump Starter Power Bank 5400mAH 5V
Ultra Thin USB Portable Truck Jump Starter Power Bank 5400mAH 5V
Product Details:
Place of Origin: China
Brand Name: TAC
Certification: CE, FC,RoHS
Model Number: EC0007
Payment & Shipping Terms:
Minimum Order Quantity: 100set
Price: Negotiable
Packaging Details: Color box for each set, 20sets/CTN
Delivery Time: Samples 1-3days; Quantity Order 7-15days
Payment Terms: TT, Paypal, LC etc.
Supply Ability: 100,000set/Day
Contact Now
Detailed Product Description
High Light:

pocket power jump start

,

automobile jump starter

Ultra Thin USB Portable Truck Jump Starter Power Bank 5400mAH 5V





Price: Negotiable

Payment Terms: TT, Paypal, LC etc.

Supply Ability: 100,000set/Day







Quick Detail:







Place of Origin:

China

Brand Name:

TAC

Model Number:

EC0007

Dimension:

140*80*15mm

Weight:

300g

Capacity:

5400mAH

Input:

5V/ 1A





Socket Type:

USB

Car Output

12V/160A

Star Current

63A

Peak Current

160A

Output1:

5V /1A;









Material:

ABS+PC

Warranty:

One Year

Life span:

3-5years

Features:

1. 4 LED display capacity

2. Certification: CE, FC,RoHS

3.MOQ: 100set

4.Conventional in cold winter or when car battery used out

5.Small size, portable for carry.

6.Multi-function LED light: torch/SOS/strobe





Packaging & Delivery:





Packaging Detail:

Color box for each set, 20sets/CTN

Delivery Detail:

Samples 1-3days;  Quantity Order 7-15days



















Specifications:







Products

Ultra-Thin Multi-function Jump Starter Power Bank Motor Accessories



Model NO

EC0007

Capacity

5400mAH

Input

5V 1A

Output

12V/160A

Battery type

Polymer Lithium Ion for High Power Type

Dimension

140*80*15mm

Charge Time

3 Hours

Working temperature

-20-60°C

Weight

300g

Lifespan

About 3-5 years

Warranty

One Year









Ultra-Thin Jump StarterOperation Guidance



Indicator Lights



Press the switch button to check the capacity of Jump Starter.

Indicator Light

1 Flashing

1 solid

2 solid

3 solid

4 solid

Battery Capacity

0%

25%

50%

75%

100%

When charging, indicator lights will flash one by one. The number of solid indicator lights indicates

the battery capacity of Jump Starter. Full indicator lights are solid when charging is puase or complete.







Ultra-Thin Jump StarterLayout:







Ultra Thin USB Portable Truck Jump Starter Power Bank 5400mAH 5V 0







Ultra-Thin Jump Starter Accessories:







Ultra Thin USB Portable Truck Jump Starter Power Bank 5400mAH 5V 1









How to Charging for Jump Starter Itself:





1.  Plug the home adapter into the universal socket.

2.  Connect 12V 1A input port of Jump Starter to the other end of home adapter.

3.  Or

4.  Plug the car adapter into the socket of cigarette lighter.

5.  Connect 12V 1A input port of Jump Starter to the other end of car adapter

Ultra Thin USB Portable Truck Jump Starter Power Bank 5400mAH 5V 2



How to Use the Mini Jump Starter for car:





1.  Make sure that the number of indicator light is not less than 3.

2.  Connect the red battery clamp of jumper cable to vehicle’s positive (+) battery terminal and connect the black battery clamp of jumper cable to the vehicle’s negative (-) battery terminal.

3.  Plug the cord of jumper cable into the jump start socket.

4.  Start the vehicle

5.  When the vehicle starts, remove jumper cable from Jump Starter and disconnect red and black

clamps to the vehicle battery terminal within 30 seconds.

6.  Leave the vehicle’s engine running.

Ultra Thin USB Portable Truck Jump Starter Power Bank 5400mAH 5V 3

How to Charging mobile phones or tablets:





1.   Plug the switch cable B to USB 5V 2A output port

2.  Select appropriate connector for your mobile phone or tablet and connect it the switch cable

B and your mobile phone or tablet.

3.   Press the switch button to charge.

Ultra Thin USB Portable Truck Jump Starter Power Bank 5400mAH 5V 4



LED Illumination:





Press the switch button 3 seconds to start the LED illumination and then 4 modes of LED light appear

in sequence ( normal, strobe, SOS, off) if you press lightly.





Features:





• High-capacity lithium ion battery provides longer life and more charge cycles

• Once full charged, the jump starter can start the car more than 20 times.

• LED indicator shows charging and battery status

• Protection board inside, with the function like over charge, over discharge, over-current,  overload, under-voltage and short-circuit  etc.

• Outdoor lighting & flash signal

• Fast charge, the charge time is about 4-5hours.

• Small size & light weight

• Broad application for all USB devices, including smart phones, mp3 players, tablets and digital products.

• 12 months warranty

• Supply OEM & ODM and custom service







Advantages:





• Inside Li-polymer battery which is environment and much safer and more stable, and UL listed.

• Each jump starter with Anti-explosion test, anti-reverse protection, short-circuit protection, overload protection, over-temperature protection.

• Excellent production line for high quality products and punctual delivery time.

• We are 100% responsible for our products,we consider Customer first,quality first and Reputation first.







Contents:





(1)  Jump Starter

(2)  Jump Starter cable with clamps

(3)  Car Charger

(4)  Home Charger







Option Contents:





(1)  Switch cable for mobile phone

(2)  Switch cable for laptop

(3)  Owner’s manual

(4)  Air Pump

(5)  Tool box

(6)  Color Box





Q&A:





1.  What is the car jump starter?




Car jump starter is used to charge your car battery and start the engine. Also, this is multi function,

except starting your vehicle, also apply to use to most of the digital products, such as mobile phones, laptops, cameras, etc.


2.  How to turn off the product?




The product will turn off automatically after 10 seconds when no loading is detected or the charge

has completed.




3.  How long does full charge of the jump starter?




It takes 4 to 5 hours to full charge car jump starter with 12V/1A charger.


4.  How many times can this appliance on full charge start the vehicle?
Each jump starter with different capacity, approximately 20 to 40 times.


5.  How long will the power of the battery remains?
3-6 months, however, we suggest you charge it every 3 months. And the LED illumination is another

extra function used commonly, long press the switch button to start the  flashlight, 3 modes for

options: hard light; frequent flash; SOS. The mode will be changed after one more press.


6.  What is about the warranty?
Warranty is 12 months.
