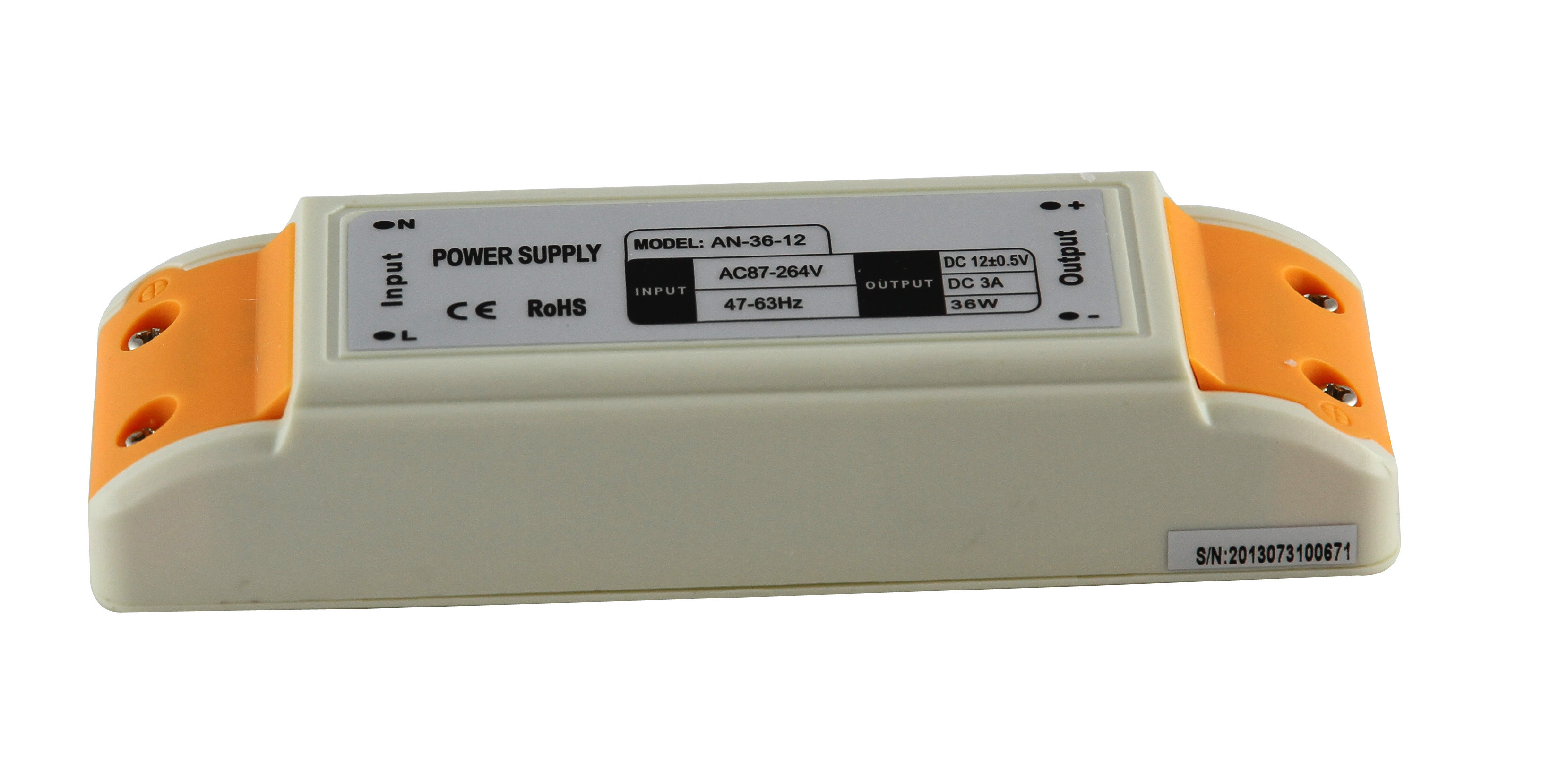

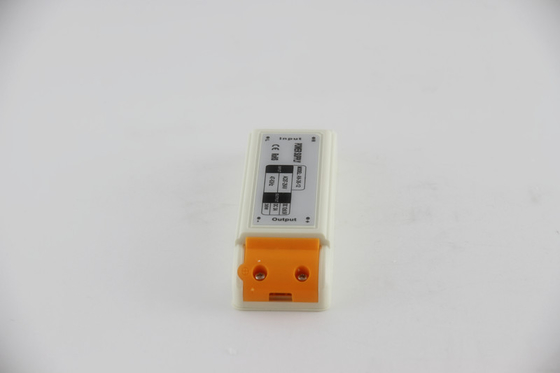

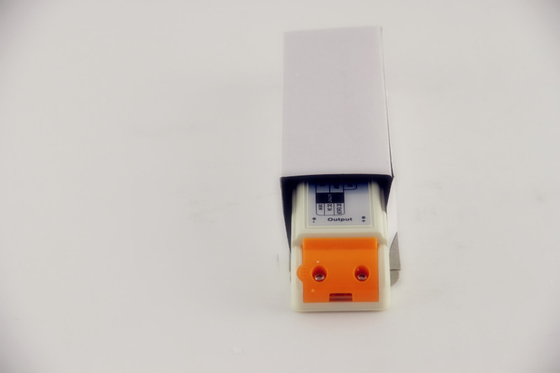

stable PCB 2 years warranty CE RoHS DC12V 3A 36W LED power supply



Stable Pcb Low Power Constant Voltage Led Power Supply / 12 Vdc Power Supply 36w





Quick detail:



1. CE ROHS certificated

2. 36W 12V LED Driver

3. DC voltage: 12v

4. Output current: 3A

5. Size: 200*110*50mm(L*W*H)

6. Packing: 0.11kg/PCS;130PCS/15.32kg







Description:



1. International broad voltage AC input

2. Protection: short-circuit, overload, overheat

3. 100% full-load aged

4. High efficiency, long life span, and high reliability

5. Load adjustment: taken under 0~100% of rated load.

6. 20～90% RH,without condense



Product Electric Parameters:



Product No.		AN-36-5	AN-36-12	AN-36-24	AN-36-48
Output	DC voltage	5V	12V	24V	48V
	Capacity of current	5A	3A	1.5A	0.75A
	Range of current	0-5A	0-3A	0-1.5A	0-0.75A
	Power	36W	36W	36W	36W
	Noise max. 2	120mVp-p	150mVp-p	240mVp-p	250mVp-p
	Voltage adjustment	-	-	-	-
	Voltage accuracy 3	±2%	±1%	±1%	±1%
	Linear Adjustment 4	-	-	-	-
	Load adjustment 5	±1.5%	±0.5%	±0.5%	±0.5%
	Start and rise time	1000ms,30ms/230VAC
	Hold time (Typ)	50ms/230VAC
Input	Voltage range	AC 87-264V
	Frequency range	47-63HZ
	Efficiency (Typ)	75%	80%	82%	82%
	AC current (Typ)	0.83A/90V 0.34A/220V
	Surge current (Typ)	cold start:65A/230VAC
	Current leak	<2mA/240VAC
Protection	Overload	Greater than 105% of capacity
		Protection mode: hiccup, automatic restoration after abnormity removed
	Overvoltage
	Overheat
Environment	Working temp.	-20～+60℃(see tenuation curve)
	Working humidity	20～90% RH,without condense
	Storage temp & hmdty	-40～+80℃
	Temp. coefficient	±0.03%/℃ (0～50℃)
	Vibration proof	10～500Hz, 5G 10min / cycle,X,Y,Z axes 60 min each
Safety reg. & EMC	Safety regulation	GB195110.1-2004/IEC61347-1:2003 CE(EMC+LVD)
	Voltage proof	I/P-O/P:1.5KVAC
	insulation resistance	I/P-O/P:100M Ohms/500VDC/25℃/70% RH
	EMC irradiation	EN 55015:2006;EN61000-3-2:1995+A2:2005
	EMC disturbance proof	EN 61000-3-2:2006;
	Dimensions	200*110*50mm(L*W*H)
	Packing	0.11kg/PCS;130PCS/15.32kg





Competitive Advantage:



1. Using low voltage (12 DC), reliable performance

2. Output low ripple and noise

3. Super bright top LED

4. Two year warranty

5. Average working no trouble ＞50, 000 hours
