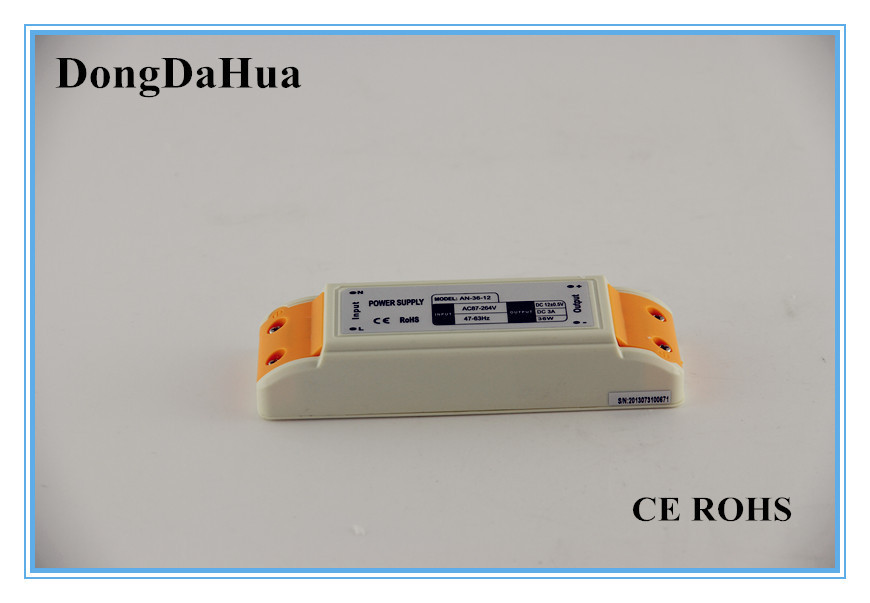

LED driver manufacture constant voltage style plastic shell in China

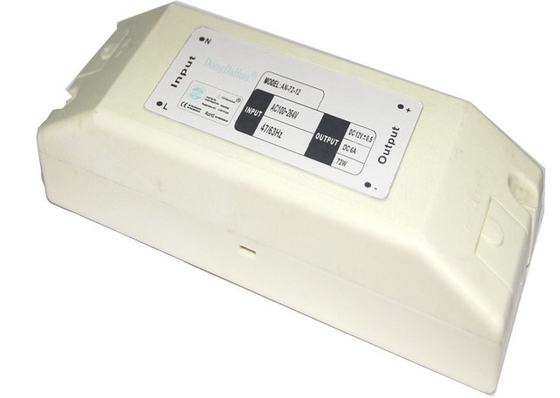

Engery Saving 12v 6a Constant Voltage Led Power Supply / 72w Led Driver



Quick detail:

1. 72W LED driver

2. Greater than 105% of capacity

3. DC voltage: 12v

4. Output current: 6A

5. Size: 192*65*38mm (L*W*H)

6. Packing: 50PCS/CARTON





Description:

1. 100% full-load aged

2. International broad voltage AC input

3. Protection: short-circuit, overload, overheat

4. High efficiency, long life span, and high reliability

5. Load adjustment: taken under 0~100% of rated load.

6. Protection mode: hiccup, automatic restoration after abnormity removed



Specification:



Product No.		AN-72-12
Output	DC voltage	12V
	Capacity of current	6.0A
	Range of current	0-6.0A
	Power	72W
	Noise max. 2	150mVp-p
	Voltage adjustment	11.4-12.6V
	Voltage accuracy 3	±10%
	Linear Adjustment 4	±1.0%
	Load adjustment 5	±5%
	Start and rise time	1000ms,30ms/230VAC 2000ms,30ms/176VAC
	Hold time (Typ)	50ms/230VAC 10ms/176AC
Input	Voltage range	176-264VAC/220-370VDC
	Frequency range	47-63HZ
	Efficiency (Typ)	84%
	AC current (Typ)	0.8A/90V 0.33A/220V
	Surge current (Typ)	Cold start:65A/230VAC
	Current leak	<2mA/240VAC
Protection	Overload	Greater than 105% of capacity
		Protection mode: hiccup, automatic restoration after abnormity removed
	Overvoltage
	Overheat
Environment	Working temp.	-20～+60℃
	Working humidity	20～90% RH,without condense
	Storage temp & hmdty	-40～+80℃
	Temp. coefficient	±0.03%/℃ (0～50℃)
	Vibration proof	10～500Hz, 5G 10min / cycle,X,Y,Z axes 60 min each
Safety reg. & EMC	Safety regulation	GB19510.1-2004/IEC61347-1:2003 CE(EMC+LVD)
	Voltage proof	I/P-O:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	insulation resistance	I/P-O/P, I/P-FG,O/P-FG:100M Ohms/500VDC/25℃/70% RH
	EMC irradiation	EN 55015:2006;EN61000-3-2:1995+A2:2005
	EMC disturbance proof	EN 61000-3-2:2006;
	SIZE	192*65*38mm (L*W*H)
	PACKING	50PCS/CARTON



Competitive Advantage:

1. Two year warranty

2. Output low ripple and noise

3. Super bright top LED

4. Using low voltage (12 DC), reliable performance

5. Average working no trouble ＞50, 000 hours
