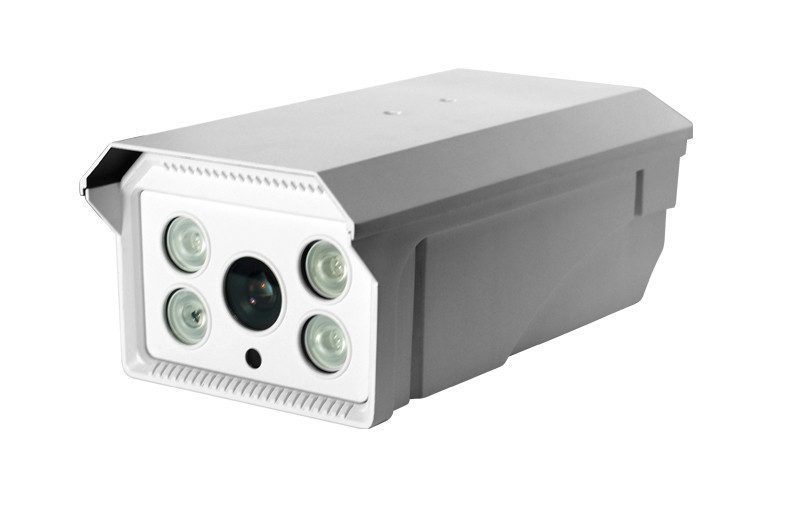

H.264 CCTV Camera Outdoor / Indoor 120m Night Vision Support IPhone / IPad

H.264 CCTV Camera Outdoor / Indoor 120m Night Vision Support IPhone / IPad

  • H.264 CCTV Camera Outdoor / Indoor 120m Night Vision Support  IPhone / IPad
H.264 CCTV Camera Outdoor / Indoor 120m Night Vision Support  IPhone / IPad
Product Details:
Place of Origin: China
Brand Name: F.R
Certification: CE FCC ROHS
Model Number: FR-3504R-E
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: depends on quantity
Packaging Details: Neutral Package
Contact Now
Detailed Product Description
High Light:

wifi cctv camera

,

outdoor cctv camera



H.264 CCTV Camera Outdoor / Indoor 120m Night Vision Support  IPhone / IPad





Features:



1. IR Distance 120m

2. 4pcs IR LED

3. Dual streams from H.264 and MJPEG

4. Up to 22 fps at 1280*720

5. Day and Night function (with IR-CUT)

6. Motion detection & Private zone

7. DC 12V / PoE optional

8. Supports iPhone, iPad, Android

9. ONVIF





Specifications:



Parameter

Low illumination 1.0Mega Module

Camera

Image sensor

1/3” 1.0Mega HD progressive scanning CMOS

Picture Elements

1280(H)*720(V)

Minimum illumination

Color mode 0.1LUX(F1.2)

B/W mode 0.01LUX(F1.2)

Dynamic range

83.5dB

AGC

Auto/ manual

IR LED Quantity

2pcs LED

Max IR Distance

50m

Lens

Megapixel

Yes

Focal Length

4/6/8mm for optional

Day/Night

Yes, with IR-CUT

Lens Type

Motorized Varifocal lens

Lens mount

C/CS, M12,Φ19

Image format

1/3”

Operation

Focus

Auto focus



Zoom

4x optical zoom



Iris

DC drive

Operation

Video compression

H.264 High profile/ M-JPEG

Maximum resolution

H.264  Main stream(1280*720)

Optional resolution

1280*960  1280*720

720*576  720*480  CIF

Image maximum frame rate

30fps@1280*720

Output code rate

Variable bit rate: 128K—6M

Private zone

4 private zones

Motion detection

4 motion detection zones

Audio

Optional

SD card record

Optional

Local record

Optional

Alarm

Optional

Network Remote upgrade

Support

Password protection

Support

Network

Interface

One 10M/100M Self-adaption Ethernet Port, RJ-45

Protocol

TCP/IP, HTTP, ICMP, UDP, SMTP, RTP, RTSP, SNMP, ARP,DDNS,DNS,PPPOE,P2P,802.1X,SCTP,NTP

General

Power supply

12V DC, PoE optional 802.3af level 2

Power

24W

Working temperature

-30 ℃-60℃

Working humidity

0~90%RH (Non-condensing)
