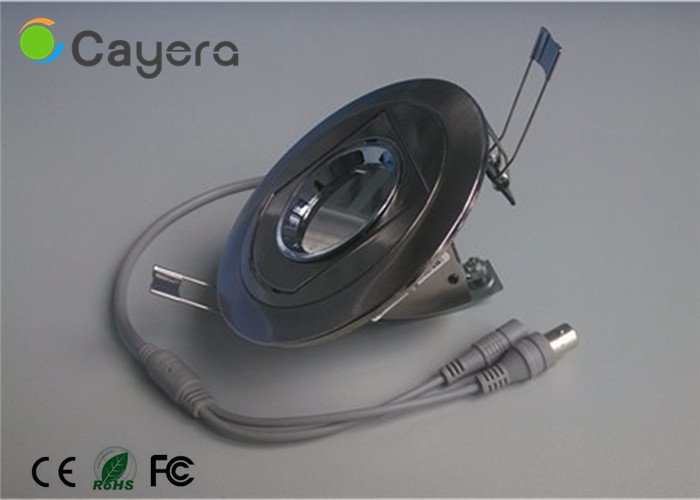

Water-proof High Definition CCTV Camera IR Support Iphone , Android

Water-proof High Definition CCTV Camera IR Support Iphone , Android

  • Water-proof High Definition CCTV Camera IR Support Iphone , Android
Water-proof High Definition CCTV Camera IR Support Iphone , Android
Product Details:
Place of Origin: Shenzhen, China
Brand Name: Cayera
Certification: CE, FCC
Model Number: AHD-AP513
Payment & Shipping Terms:
Minimum Order Quantity: 200
Packaging Details: 655mm*435mm*450mm;45pcs /carton
Delivery Time: 1-4 weeks after get the full payment
Payment Terms: T/T 100% before shipment
Supply Ability: 50000 pcs/per year
Contact Now
Detailed Product Description
IR Cut Filter: Support Pixel: 1.3 MP
Effective Distance: 30m Mobile Monitor: IPhone, Symbian, Android
S/N Ratio: More Than 69dB (AGC Off) TV System: PAL/NTSC
Lens: 3.6/4/6/8mm
High Light:

cctv surveillance cameras

,

hd analog cctv camera

Water-proof High Definition CCTV Camera IR Support Iphone , Android





Application

            AHD Camera Using the latest development of 1/3 inch mega pixel progressive scan CMOS, with enhanced color filters and unique concentrator technology, under a variety of conditions even light environment,

can also provide surprising megapixels high-definition, bright image.



widely used in the following situations :

  1. Shopping center: Crowded places, to guarantee the citizens personal and property safety
  2. The airport: Enhance the safety of the passengers at home and abroad, to prevent criminals, reduce potential hidden
  3. The school:Prevent criminals illegally, to guarantee the normal order in school
  4. Family: Ensure safety of old person, child
  5. Factory: Guarantee personal safety at the same time, the safety in production, improve the company's production efficiency
  6.  bank: Prevent criminals illegally, to guarantee the normal order in school



Features:

  1. 30M wired IR camera,
  2. Power Supply DC12V±10%
  3. P2P penetrate automatic forwarding
  4. Support back light compensation function, apply to monitor in the back lightning environment
  5. High S/N, image clean and good
  6. Support digital wide dynamic range function
  7. Build in Motion Detection, support alarm linkage
  8. Provide free Client Program, support mobile monitoring(iPhone, Android, etc) and network browsers
  9. Support automatic electronic shutter function, adapt to different monitoring environment
  10. Allow remote viewing video and record from any internet



SPECIFICATIONS

Product Type

AHD Camera

Image Sensor

1/3" 1.3MegapixelCMOS( NVP2431+IMX238)

Effective Pixels

1280(H)×960(V)

Horizontal Resolution

1280H(130W)

Video Frame Rate

PAL: 25fps/960P  NTSC: 30fps/960P

Electronic Shutter

1/50(1/60)-1/100,000sec

Minimum Illumination

0.01Lux (0Lux IR on)

Synchronization

Internal

TV System

PAL/NTSC

S/N Ratio

  More than 69dB (AGC Off)

Video Output

1-channel BNC HDAHD high definition video output

AWB

AUTO

BLC

AUTO

Day/Night

Auto(ICR) / Color / B/W

Noise Reduction

2D/3D

IR Length

30m

Lens

3.6/4/6/8mm

Power Supply

DC12V±10%

Working Environment

 -10°C~+60°C, Less than 90% RH

Transmission Distance

Over 500m via 75-3 coaxial cable
