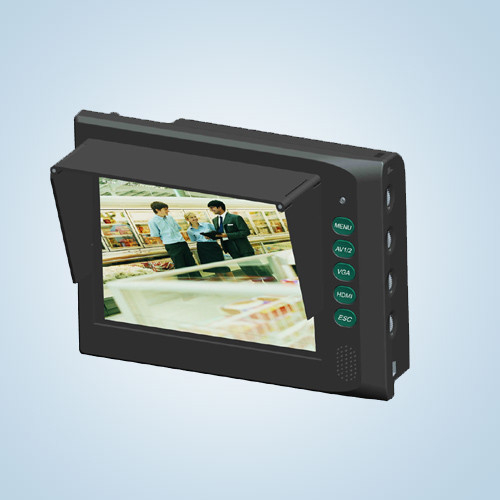

Lightweight CCTV Camera Tester HD SDI CCTV Tester for On Site Camera

Lightweight CCTV Camera Tester HD SDI CCTV Tester for On Site Camera

  • Lightweight CCTV Camera Tester HD SDI CCTV Tester for On Site Camera
  • Lightweight CCTV Camera Tester HD SDI CCTV Tester for On Site Camera
  • Lightweight CCTV Camera Tester HD SDI CCTV Tester for On Site Camera
Lightweight CCTV Camera Tester HD SDI CCTV Tester for On Site Camera
Product Details:
Place of Origin: China
Brand Name: Tyalux
Certification: CE/ROHS/FCC
Model Number: TYL-SD560TM
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: negotiation
Packaging Details: carton box
Delivery Time: 7 working days after received your payment
Payment Terms: T/T or L/C western Union
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Product Name: Cctv Tester Application: Camera Testing
Size Of Panel: 5.6inch Resolution: 640(H)*480(V)mm(4:3)
Brightness: 300cd/m2 Power Supply: AC Input:100~240V /1.5A,50/60Hz
High Light:

cctv tester monitor

,

ip cctv tester



HD SDI CCTV Tester with 5.6 inch screen





Specifications:



Product Name

5.6" HD Test Monitor

Product Model

TYL-SD560TM

LCD panel

LCD display

Color 5.6" LCD (LED backlight)

Screen size(Viewable size)

5.6"  (112.896(H) 84.672mm(V))

Resolutions

640(H)*480(V)mm(4:3)

Brightness

300cd/m2

Contrast ratio

500:1 Typ

Response time Tr/Tf

15/20ms

Dot pitch

0.0588(H)*0.1764(V)mm

Viewing angle L/R

70°/70°

Viewing angle Up/Down

50°/70°

Display mode

HDMI,VGA ,Video1,Video2,Testpattern,

OSD menu

Video

Language, Contrast, Brightness, Color

Signal
connector

Input/

1xHDMI input

1xHD-SDI input

1xVGA input (15pins female)

Input/

1xBNC Inputs (1.0Vp-p75);

1xAudio Input (BNC/RCA Jack)

Output

1xBNC Outputs (2.0Vp-p 75);

Audio speaker

1W(Max.)

Environment
considerations

Operating condition

 Temperature:0C~40C

Storage Condition

Temperature:-20C~60C

Power Input

AC Input:100~240V/1.5A,50/60Hz

Power consumption

14W

Power Supply

AC Input:100~240V/1.5A,50/60Hz

Stands/bracket supported

1/4"standard screw mount on bottom

Rechargeable battery

2500mAh

Safety

FCC,CE(EMC/LVD),CCC

Material

Front Panel

Plastic

Rear Cover

Plastic





Description:



  • Resolution 640x480pixels
  • Lightweight & compact size
  • NTSC/PAL auto recognition
  • 1 BNC ,1HDMI,1 HD-SDI ,1VGA input and 1 audio input
  • Test pattern generator and DC12V Power out
  • Multi-language support OSD
  • Carrying strap and travel case(Optional)
  • Rechargeable battery and AC adaptor
  • Anti-scratch & anti-reflectiveness visor
  • Last memory for settings when powered off
  • Provided with tempered glass against damage to screen
  • Power saving while no signal input
  • For CCTV installation, on-site demonstration and testing



Applications:



CCTV system installation and maintenance

Dome camera and All in one camera testing

The CCTV transmitting channel testing
