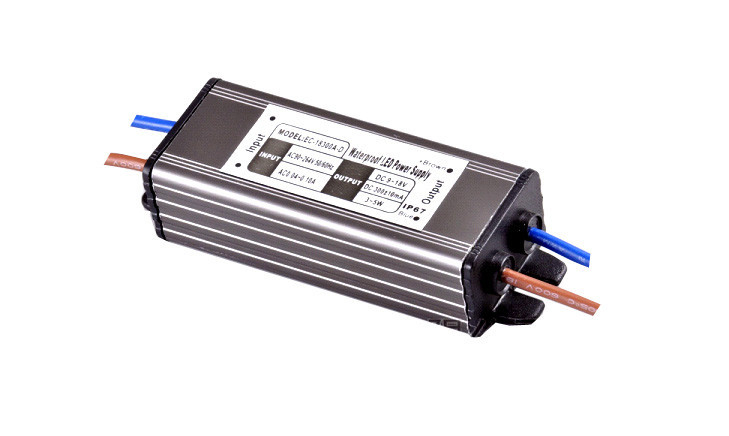

Name: 300mA 3W - 5W IP68 Constant Current LED Power Supply Waterproof
Brand: Shenzhen Power Adapter Co.,Ltd.
SKU: HF-21
Availability: InStock

Home Products Constant Current LED Power Supply

300mA 3W - 5W IP68 Constant Current LED Power Supply Waterproof

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	DongDaHua
Certification:	CE & ROSH
Model Number:	HF-21

Payment & Shipping Terms:

Packaging Details:	As for your requirement
Delivery Time:	As per your order quantity
Payment Terms:	T/T & L/C
Supply Ability:	3000 Pieces/Day

Contact Now

Detailed Product Description

Highlight:	Constant Current LED Driver

300mA 3W - 5W IP68 Constant Current LED Power Supply Waterproof

Quick detail:

Power : 3-5W

Input: AC90-264V

Output: 320mA 2~12V

Size: 72*30*21(mm)

Certificate: CE&ROHS

Warranty: 2 years

Description:

1. Protections :Short circuit/Overload/Over temperature

2. Cooling by free air convection

3. IP67 design for indoor or outdoor installations

4. 100% full load burn-in test

5. Suitable for LED lighting

6. Products through CE& ROHS certification

7. Two years warranty

Specifications:

Product Electric Parameters
Output	DC Voltage	9-18V
	Rated Current	300mA
	Rated Power	5W
	Rippple&Noise(MAX)	100mV
	Voltage Tolerance	±10mA
	Setup, Rise Time	1000mS,3mS230VAC 1000mS115VAC(full loaded)
	Hold Up Time(Typ.)	80ms/220VAC
Input	VoltageRange	90-264VAC
	FrequencyRange	47-63HZ
	Power Factor(Typ)	PF>0.5/220VAC
	Efficiency(Typ)	75%
	Ac Current(Typ)	﹤2mA230VAC
	Tnrush Current(Typ)	Cold-start current 230V 20A
Protection	Short Circuit	Protection type :recovers automatically after condition is removed
	Overload	Overload protection@145~160%above peak rating
	Over Temperature	Protection typer:shut down o/p voltage.re-power on to recover
Environment	Working Temp	-30~ +60°C(Refer to output load derating curve)
	Working Humidity	20~90%RHno-condensing(Waterproof)
	Storage Temp Humidity	-40~+80°C, 10~90%RH
Safety&EMC	Sefety Standards	CE Mark(LVD), IP67
	Withstand Voltage	I/P-O/P:1.5KVAC IP-GND:1.5KVAC
	EMC Test Standrads	EN 55015:2006;EN 61547:1955+A1:2000;EN 61000-3-2:2006 ;EN61000-3-2:1995+A2:2005 EN61347-1:2008;EN 61347-2-13:2006
NOTE	1. All parameters NOT specially mentioned are measured at 220VAC input , rated load and 25°C of ambient temperature.
	2. Ripple&noise are measured at 20HZ of bandwidth by using a12’’ twisted pair-wire terminated with a 0.1 uf&10uf parallel capacitor.
	3. Tolerance:includes set up tolerance, line regulation and load regulation.
Others	Dimension	835025(mm)(LWH)
	Carton Quantity	50PCS/Carton
	Carton Size	340240190
	Weight	0.34kg/pcs

Application:

It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.

Competitive Advantage:

1. Protections : Short circuit / Overload / Over temperature

2. Cooling by free air convection

3. IP67 design for indoor or outdoor installations

4. 100% full load burn-in test

5. Suitable for LED lighting

6. Products through CE & ROHS certification

7. Two years warranty

300mA 3W - 5W IP68 Constant Current LED Power Supply Waterproof 0
