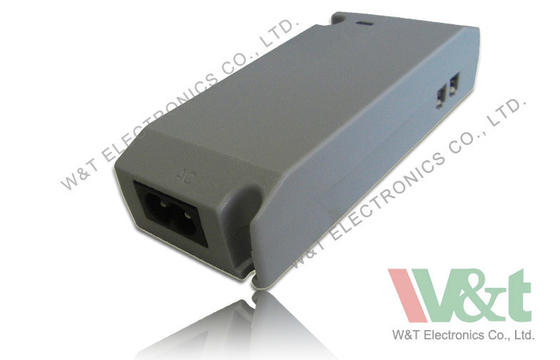

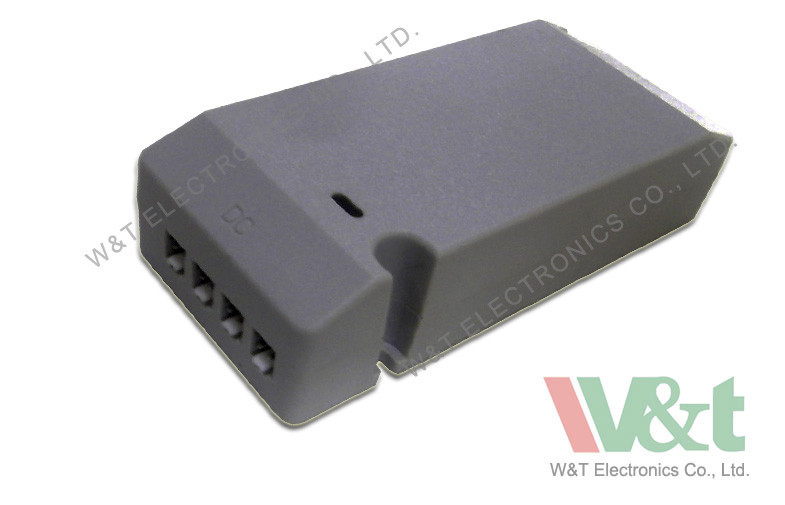

Constant Current LED Power Supply / LED Driver 6W 3V - 12V With Plastic Enclosure

Product Details:

Place of Origin:	China
Brand Name:	W&T
Certification:	CE FCC
Model Number:	W&T-LED06W-A

Contact Now

Detailed Product Description

High Light:

led 12v dc power supply

switching mode power supply

Constant Current LED Power Supply / LED Driver 6W 3V - 12V With Plastic Enclosure

6W LED Power supply,Desktop for Character Lighting,3-12V Output,CC Mode,RoHS Directive-comp

Quick Detail:

6W 3V-12V LED power supply series, LED Driver, desk top type. 100-240VAC input,Constant Current (indoor) LED Power Supply , Plastic enclosure, Efficiency level V

Competitive Advantage:

High efficiency power, High Reliability (Ultra low no-load /standby power consumption)

Ultrasonic Lamination

Natural Cooling

Meets "ENERGY STAR" program requirement

Over voltage protection

Over load & short circuit protection

100% full load burn-in test

Energy Efficiency:Efficiency level V

Application:

It’s suitable for an extremely wide range of applications, including:

Suitable for LED lighting and moving sign applications
CC mode for LED driver
Suitable for wall / furniture, indoor Use.
LED tube, LED Stage lamp , LED spotlight, LED street lamp
LED lighting lamp and advertisement lamp
Equipment LED and daily LED products
LED street lamp and industry LED lighting products
Furniture LED products

Data sheet Spec:

INPUT	Voltage	90-264VAC universal full range
	Frequency	47-63Hz
	Current	＜0.5A@100V AC input, full load condition
	Inrush Current	＜40A@115V , ＜60A@230V AC input.Cold start at 25℃ ambient
	Leakage Current	＜0.5A@ 264V AC input
OUTPUT	PART NO.	W&T-LED06W-XX
	Voltage	DC 3V ~ 24V
	Max Load	0-1500MA
	Output Tolerance	±5%
	Ripple Noise(MAX)	100mV
	Efficiency(MIN)	≥75%
	Output MAX	0-6W
PROTECTION	Over Voltage	over 120%～150 max
	Over Voltage	Shutdown and latch off, recover after re-start up
	Over Load & Short Circuit	When power supply over 105%～150 max load or short circuit acted,powr supply will be shutdown and recover automatically after the fault is removed
	Over Temperature	Over 95℃,the power supply will shutdown.
ENIRONMENT	Temperature	Operating:-20～70℃;De-rating:45～70℃:2.5%/℃;Storage:-40～+85℃
ENIRONMENT	Humidity	Operating: 20%～90% RH(non condensing);Storage:10%～95% RH(non condensing)
SAFETY	Withstand voltage	I/P-O/P:3KVAC,I/P-PE:1.5KVAC,O/P-PE:0.5KVAC,1 minute
	Isolation resistance	I/P-O/P,I/P-FG,O/P-FG>100MΩ/500VDC at 25℃/70% RH
	Safety standard	UL 60950-1 2nd,CSA C22.2 No.60950-1-07 2nd,TU EN 60950-1:2006, UL1310 Class 2. IEC 60950-1:25005,standard,EN61347-1,EN61347-2,EN61347-13
EMC	EMI	EN 55022 CLASS B,FCC CFR 47 PART 15 CLASS B,CNS 13438 CLASS B
	EMI	Compliance to EN61000-3-2 CLASS D,EN61000-3-3
	EMS	EN55024:EN61000-4-2,3,4,5,6,8,11
OTHERS	Cooling	Natural Cooling
	M.T.B.F.	100K hours
	Dimension	103x46x24mm ( LWH ) K-023
	Packing	N.W.:70g/1pc; 15pcs/1.05kg CUFT/1 CTN
