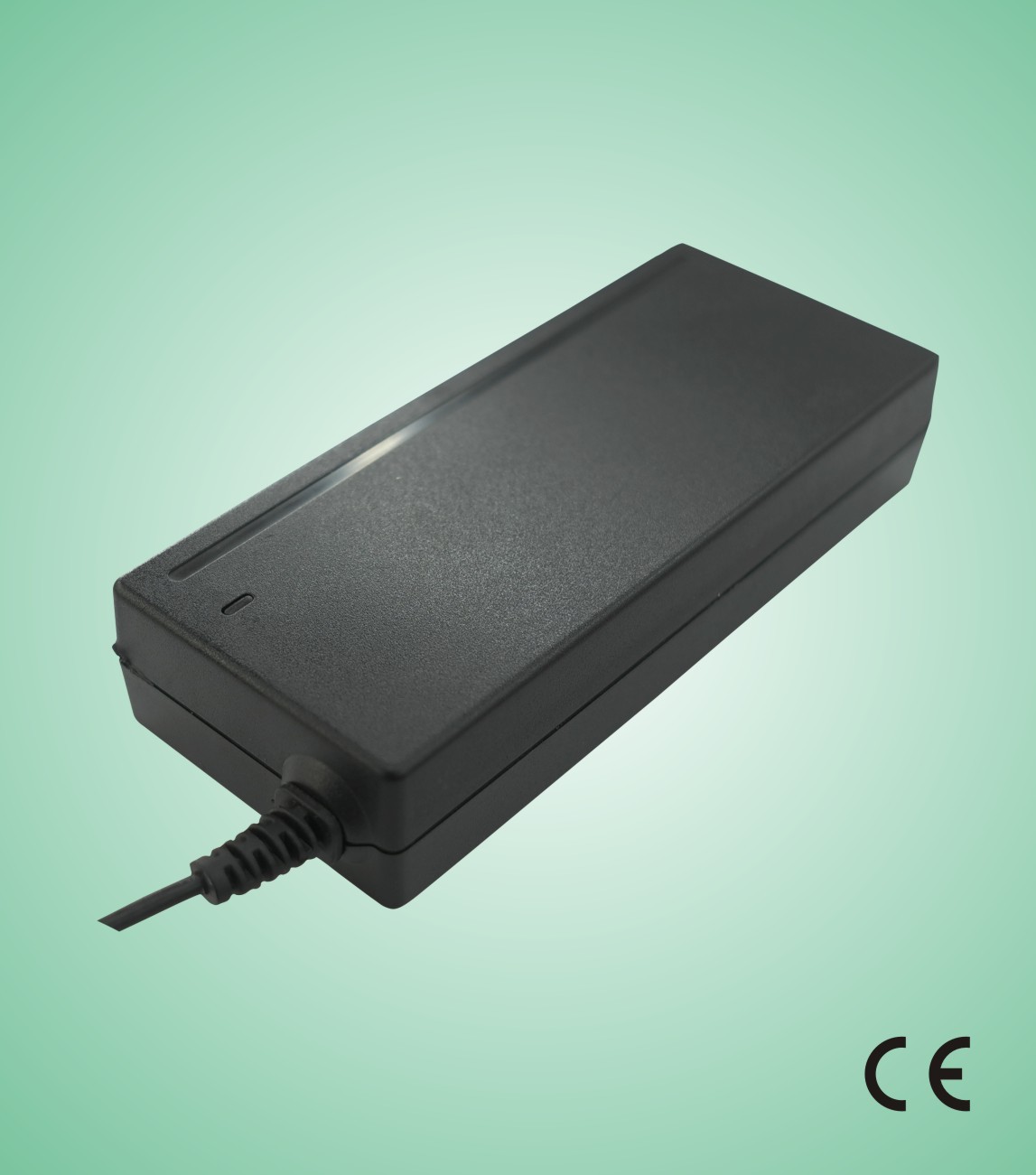

45W Desttop Switching Adapter Power

45W Desttop Switching Adapter Power

  • 45W Desttop Switching Adapter Power
45W Desttop Switching Adapter Power
Product Details:
Place of Origin: Guangdong, China (Mainland)
Certification: UL,CCC,GS,TUV,C-Tick
Model Number: KSAP0451900240M2
Output Type: DC
Usage: Laptop
Connection: Desktop
Payment & Shipping Terms:
Minimum Order Quantity: 1000 Piece/Pieces
Price: Negotiable
Packaging Details: PE bag+ white box
Payment Terms: T/T
Supply Ability: 300000 Piece/Pieces per Day
FOB: Shenzhen HK
Contact Now
Detailed Product Description
Highlight:

switching power supply adapter

Key Features of KSAP0451900240M2

●Light, extra slim, sleek, compact design

●High power density

●Extra safe design, have got their respective safety approvals

●Completed protect function



Key Applications of KSAP0451900240M2

It’s suitable for an extremely wide range of applications, including:

●Laptop

●Set-top-box

●ADSL

●Hard disk drive

●Audio & Video product

●Household appliance

Input

●Input Voltage:       90 to 264 VAC

●Frequency :          47-50/60-63hz

●Input   current :    1.2A(Max) 100 /240VAC

●Inrush current :   100AMax 120VAC at max Load

                                 100AMax 240VAC at max Load

●Leakage current: 0.25 mA Max

Output

●Over voltage protection

●Over current protection

   at 110-200% of lo and Auto-recovery

●Over temperature protection

●Electronic short circuit protection

●Average efficiency 80% Measured at 25℃

●Operatingtemperature 0~35℃Free convection

●Operating humidity 10-90% RH Non Condensing

●Sea level Non-operating temperature -20~80℃

Safety standards

●Information technology equipment

●IEC/EN 60950-1

Certificates and approvals

●CE

EMI Emission

●Radiation Test&Conduction Test:EN 55022

●Harmonic Test : EN 61000-3-2

●Flicker       Test : EN 61000-3-3.

EMS immunity

●ESD    Test:EN 61000-4-2



●RS      Test:EN 61000-4-3

●EFT    Test:EN 61000-4-4

●Surge Test:EN 61000-4-5

●CS      Test:EN 61000-4-6

●DIP     Test:EN 61000-4-11

Mechanical SPEC

Dimension L*W*H (mm) : 125.5*52.5*30

45W Desttop Switching Adapter Power 0

Product tables for 45W

45W Desttop Switching Adapter Power 1

Packing & shipping

45W Desttop Switching Adapter Power 2

Down Load
45W Desttop Switching Adapter Power 3
