Dual LAN Small Low Power PC Dual Network Ports with Office Enterprise Government N390B



Dual LAN Small Low Power PC dual network ports with Office Enterprise Government​





Quick Details:



Celeron 1037U MINI PC



Model	Parameter Description	RAM	SSD/HDD	Package
N390B	audio input / output, support HDD, BluetoothIntel Celeron 1037U, dual-core 1.86Ghz, high quality iron shell, dual network ports, VGA, HDMI, USB2.0 * 6,1 * COM, RJ45 Lan port, DC 12V port	Dual Channel SO-DIMM DDR3 204PIN Max.16G RAM (1G, 2G, 4G,8G,16G)	Support 1* Msata SSD+ 1*2.5 Inch HDD	335*240*75 (mm) & 1.5kg



Partaker N390B mini pc adopts CELERON 1037U processor,dual core CPU 1.8GHZ,which has exquisite workmanship motherboard,  Max.16GB RAM and All sizes of SSD supported,as for graphics card,we added Intel HD Graphics HD2500-3000 discrete Graphics,support 3G users.This model added COM port and it is built for industrial users,which could fully competent in the industrial application,all solid and muting design,the whole motherboard design had taken the demand of the industrial users into account.





System:



Barebone PC

Can add RAM SSD or HDD for customer choice, please contact us for it!



If customer buy the configuration with RAM, SSD, HDD, We can install as belows, XP/windows 7/Ubuntu Linux optional (if not leave message, we will ship at Random.)

Charged WIN.8/8.1 add extra $5, Server 2003 add extra $5

Above is Cracked English Version.

Original Windows, please buy it locally!

For bulk orders/Bid Goverment orders, we can supply original embeded windows. (MOQ:10 Sets,inquiry our pre-sales)





Specification:



CPU type	Intle/Celeron1037U dual core 1.8GHz processor
Core/thread	Dual core dual thread
BIOS	AMI 32GB SPI Flash ROM
Chipset	Intel NM70
RAM	standard configuration 204 contact pin  DDR3/ two channel DDR3 800/1066/1333 SDRAM Max RAM 16GB
Storage	Standard configuration SSD/2.5 inch HDD
Network	Onboard Redlrik RTL8111E/8105E  Gigabit nics chip
Display core	Integration Intel HD Graphics(HD2500) graphics card fundamental frequency:350MHZ graphics card max fundamental frequency:1Ghz support DX10.1 support HDMI support full screen HD playback
3D API	support DirectX 11
Utility	Office,Enterprise,government,call center,POS,cybercafe etc
Functional parameter
temperature		-20/+85 degree centigrade
64 bit computing		Support 64 bit computing
virtualization		Support Virtualization technology
I/O
front panel ports		1*MIC 1*SPK 1* Power indicator and switch 4*USB2.0 ports
Backside ports		1* power interface 1*HDMI port 1*VGA port 1*RJ-45 port 2*USB2.0 port 2*LAN port 1*COM port
Internal ports		1*SATA  port 1*SATA HDD onboard HDD 1*mini-PCIE port(SSD) 1*mini-PCIE port(WIFI or 3G) 1*USB contact pin
Support OS		Can embedded Windows XP / Windows 7/ Windows 8/Linux OS























































































a.Mini PC N390B

N390B mini pc with small size,200*200*40mm volume,1.5KG, perfect ports, small and delicate,the size is 1/36 of the standard desktop,saving space,very convenient to move,adopt the black metal shell which looks very professional and elegant.



b.High performance

N390B mini pc adopts multi-thread INTEL 1037U dual core CPU, 1.8GHZ speed,it has strong office processing performance,standard configuration SSD could fully satisfied the modern office demand,low consumption,high performance dual core CPU and high performance VGA chipset could be absolutely competent in 3D graphic design and Artistic Design.



c.Low consumption

N390B thin client uses brand new environmental protection and energy saving design,it uses the improved cooling fan of the notebook,consumption is the 1/6 of the traditional desktop,also the heat dissipation effect is outstanding.



d.Super high definition

N390B adopts the industry leading NVIDIA ION 2 graphic processor,which has the Pure Video HD,16 core CUDA technology,it could easily set up the living room and bedroom high definition theater experience,and it will show you the HD visual exquisite.It is the best choice for the people who pursue perfect high definition visual enjoy.



Characteristics

1. Low consumption,environmental protection,adopting 17W intel Celeron Processor 1037U CPU ;

2. High Quality & Reasonable Price , fast operating speed ,designed for office users, individual users;

3. Simple design , simple dismantled .There are two brackets , can be hung back to the monitor;

4. Saving space , the volume is only one-eighth of the ordinary PC box.

Fashionable , beautiful , pure silver color shell design.









Upgrade Service:



1. WiFi Optional, if need wifi,  double antenna builtin wireless add extra $8(150Mbps), add $10(300Mbps). Choose one from 150M and 300M.

2. USB Bluray DVD add $48, Normal DVD add $28

3. 2.4G Air mini Keyboard and Mouse add $18 (choose one type)

4. More configuration about lower or higher RAM, HDD, SSD Options, please refer to our big directory or contact our pre-sales for guide.

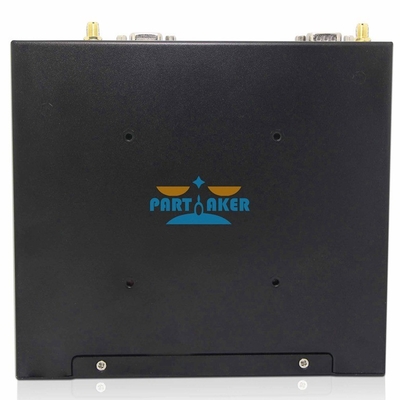

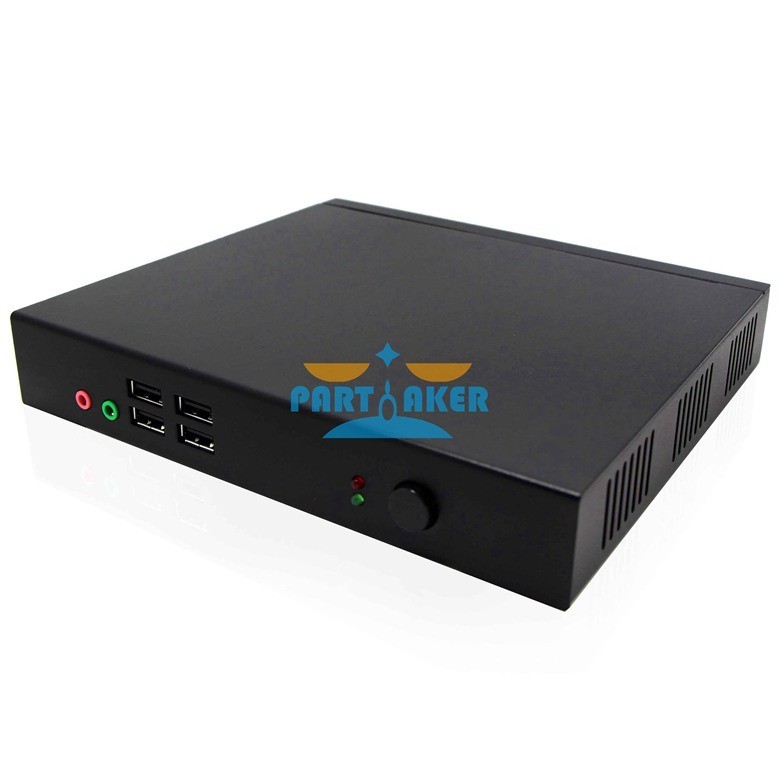

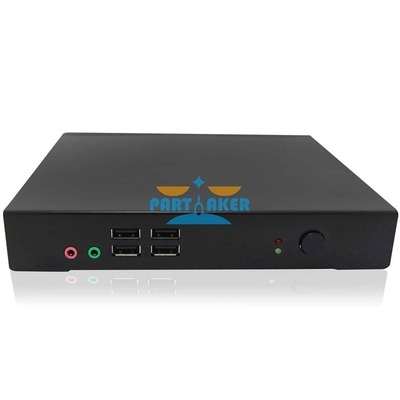

Gallery:
