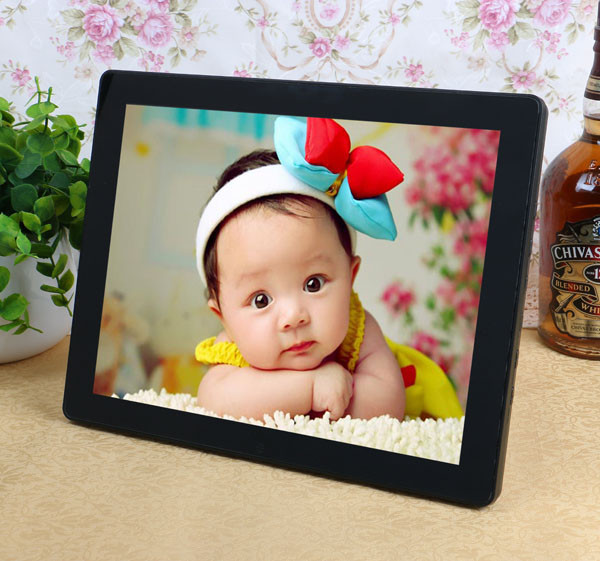

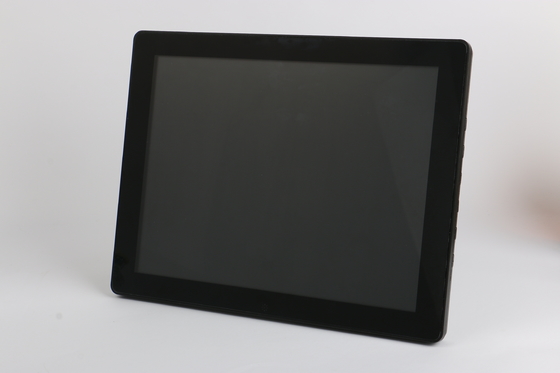

12 Inch Resistance Touch Screen Digital Photo Frame 800*600
Specifications:
|
Technical Parameter for LCD Panel
|
Panel Size
|
12 inch touch LCD screen
|
|
Aspect Ratio
|
4:3
|
|
Active Area
|
186.08mm(H) x 178.80mm(V)
|
|
Max. Resolution
|
800*600
|
|
Dot Pitch
|
0.0745mm(H) x 0.2235mm(W)
|
|
Number of Color
|
16.7M
|
|
Brightness
|
400cd/m2
|
|
Contrast Ratio
|
500:1
|
|
Responsive Time
|
8ms
|
|
Panel Life
|
above 50000 hours
|
|
Storage Medium
|
Flash memory card
|
2gb to 36gb for the capacity
|
|
Support Ad files
|
Video formats
|
MP4(AVI:DIVX/XVID),MPG2(DVD:VOB/MPG2), MPEG1 (VCD: DAT/MPG1)
|
|
Audio formats
|
MP3
|
|
Photo formats
|
JPG
|
|
OSD Language
|
English, Chinese, French, German, Italian, Spanish,Arabic
|
|
Audio output
|
stereo L/R, 5W*2, 8Ω
|
|
Power supply
|
AC 110V - 240V, 50/60HZ
|
|
Storage Temperature
|
-7 to 65 Celsius degree
|
|
Normal Working Temperature
|
-5 to 65 Celsius degree
|
Description:
Functional description:
1. Support PAD LAN or Wan in real-time monitoring and operation;
2. Real-time MMS streaming media television, RSS news feeds: Stock, The exchange rate, Cars, Women, Entertainment, Finance, Military, Sports, Science and technology news;
3. B/S structure: HTTP web browser/server architecture, all operations are based on cloud computing, the server software is powerful;
4. Layout template: provide the layout of the various areas and automatic information area, including images, video and subtitles, weather forecast, news area;
5. Programming: support program editing, Support Random,inter-cut and as per demand broadcasting;
6. Terminal management: support equipment grouping function, can be unified control according to the terminal and grouping;
7. Configuration management: according to the grouping or terminal set the configuration of the terminal, such as network connections, time of shutup or shutdown, volume, what time to upgradeupgrade, etc;
8. The system state: can record abnormal alarm information, provide the system monitoring information;
9. Playing status: can examine a file within a certain time period in a group or a terminal playing number and detailed information;
10. Safety management, can be set up a role permissions, can give a account set up multiple roles;
11. Terminal software is based on Microsoft winCE operating system 6.0, support for almost all the multimedia video and image format, support 1080p video decoding,video output 480p/720p/1080p/2160p;
12. Terminal can display abundant multimedia elements, including video, music, pictures, scrolling marquee, weather forecasting, RSS news, FLASH, PPT, WORD, EXCEL, etc.;
13. According to a server-side program, automatically set into a landscape or portrait;
14. Support time-sharing volume, period of time to set the volume;
15. Support time switch machine and the time switch panel, can be set switch machine time, and only switch screen time each day;
16. Support regular upgrade, according to the time period,can download program and system application;
17. Support infrared remote operation;
18. Material: tempered glass + wood frame + Metal plate;
19. Built-in speaker: 5w * 2;
Note: before using the machine, please ensure that the local network has covered or normal.
Applications:
|
Business Organizations
|
supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
|
|
Financial Organizations
|
Banks, negotiable securities, funds, insurance companies, pawnshops;
Non-profit Organizations: Telecommunications, post offices, hospital, schools;
|
|
Public Places
|
subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers; Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
|
|
Entertainments
|
Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course
|
Competitive Advantage:
Skyvision ,a experienced digital photo frame ;video card ;acrylic product manufacture , with acrylic Carve, LOGO print , assemble coordinated process
All digital photo frame has single color box (can customized),screen start image can be customized by your company logo, easy fixed displayer by vesa hole 75*75mm,all kind of acylic display can be customized with screen
LCD AD player
