| Place of Origin: | Shenzhen, China |
| Brand Name: | IKB-MKB |
| Certification: | CE, FCC, ROHS, IP65, IP68, ISO 9001-2015 |
| Model Number: | K-TEK-B139KP(24)-DT |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | Each keyboard to one box, several boxes to one carton. |
| Delivery Time: | ASAP Within 2 weeks upon payment confirmed |
| Payment Terms: | Full payment in advance, Western Union, T/T, Paypal |
| Supply Ability: | 3000psc/month |
| Dimension: | 139.0mm X 98.0mm (front Panel) | Interface: | USB, PS/2, RS232 |
|---|---|---|---|
| Mounting: | Desktop Movable | Material: | 304 Stainless Steel |
| Key Travel: | 0.45mm Short Stroke | Colour: | Brushed Stainless Steel Or Black |
| Custom Layout: | Yes | ||
| High Light: | vandal resistant keypad,usb numeric keypads |
||
Rugged 24 keys vandalism USB desktop brushed metal numeric keypad
Quick Details:
1. CE, FCC, RoHS, IP65, ESD
2. Plug and play USB or PS/2 or RS232 keypad
3. 24 Keys Vandal proof IP65 stand alone movable 304 stainless steel numeric keypad
4. gold-on-gold key switch technology
Descriptions:
| MECHANICAL DATA | Switch Contact Material: Gold-on-Gold key switch technology with metal dome PCB. Actuation Force: 2.0N (pressure point) Key Travel: 0.45mm Lettering: laser engraving, or raised letters. Front panel: brushed stainless steel Actuator/keys materials: stainless steel Dimensions: 139.0mm x 98.0mm G.W. 1.20KGs |
| ELECTRICAL DATA | Power supply voltage: 5V DC. Power Consumption: Under 300mW for operation, under 200mW for non-operation Electrical lifetime: > 5 years EMC Standard: It is compliance with the council IEC 61000-4-2:2008；IEC 61000-4-3:2006+AI:2007+A2:2010；IEC 61000-4-4:2004 EMI: EN 55022: 2010 EMS: EN 55024:2010 Communication interface:PS2, USB or RS232 are all available. |
| ENVIRONMENTAL ADAPTABILITY | Operating temperature:-20°C to +60°C Storage temperature: -30°C to +70°C Operating RH: 30-90% Atmospheric pressure: 60-106Kpa. RELIABILITY RoHS Compliant, CE and FCC, ESD Protection Level: IP65(front panel) Vandal resistant IK10 Key Lifespan >5 million actuations MTBF >50000H MTTR <30min |

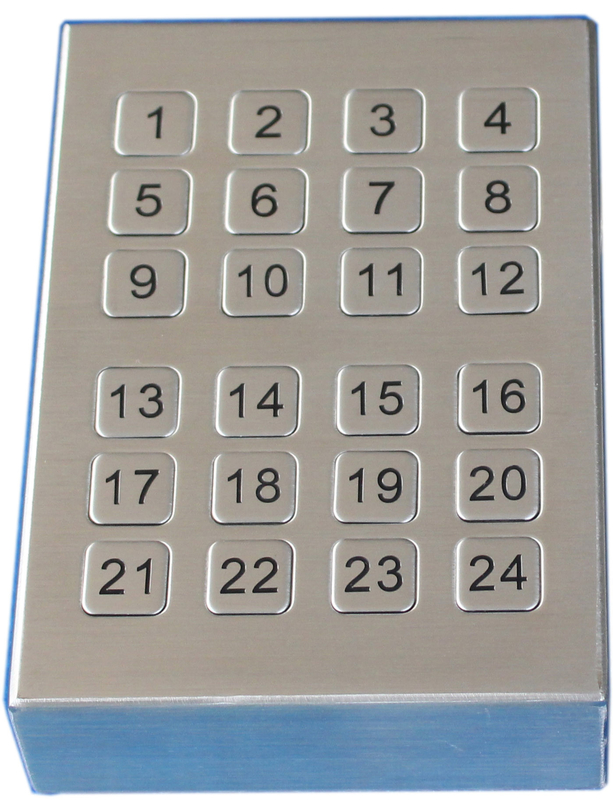

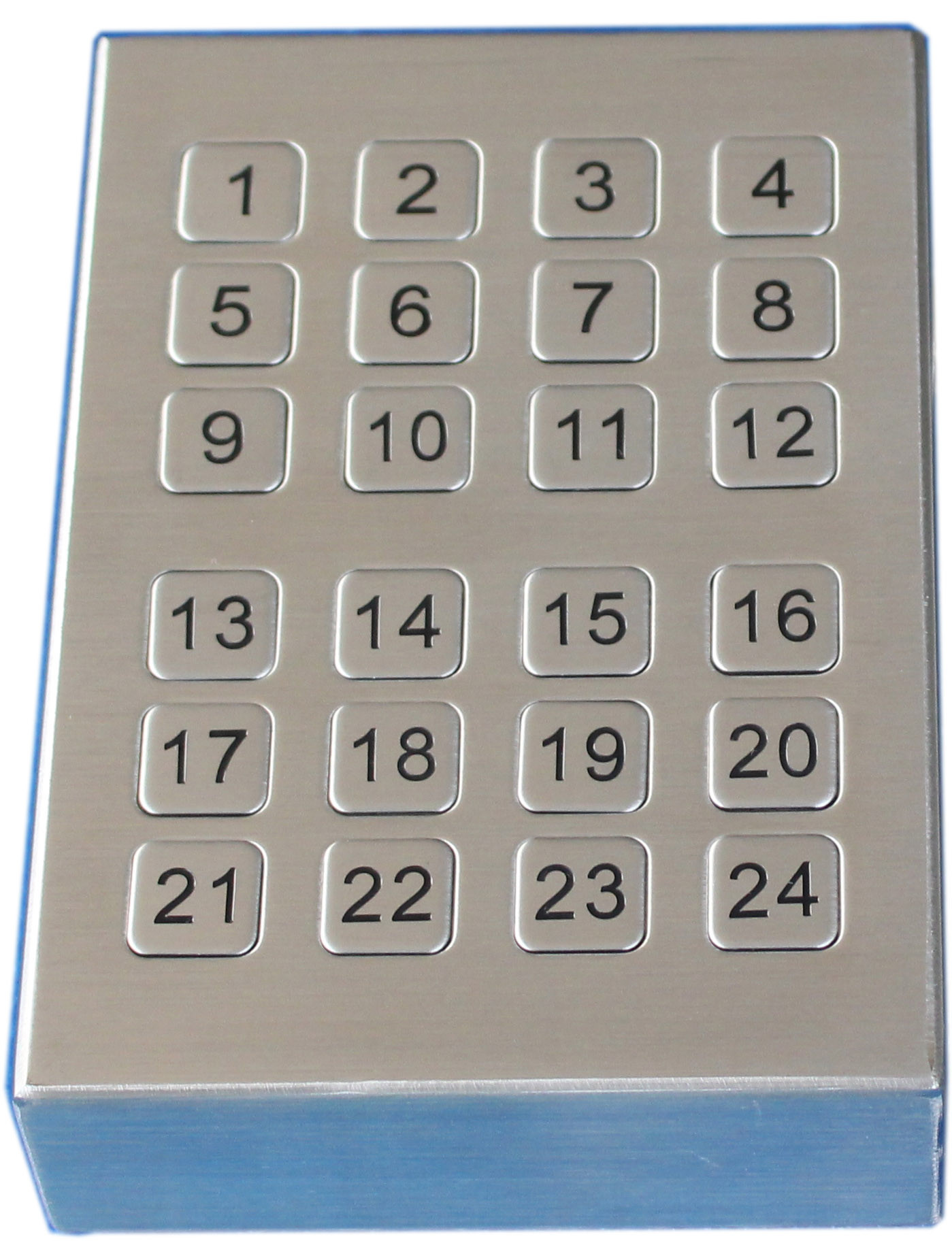

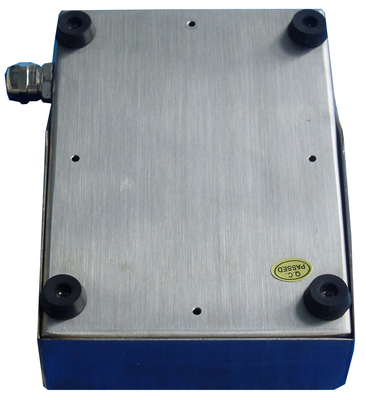

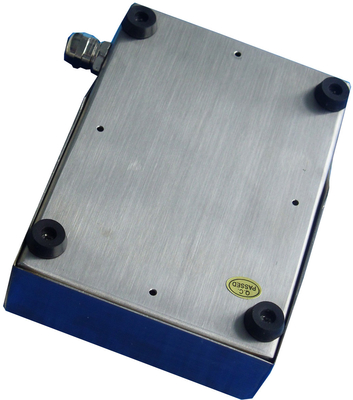

Actual Photo:
Our Exhibitions:
Our Sample room:
