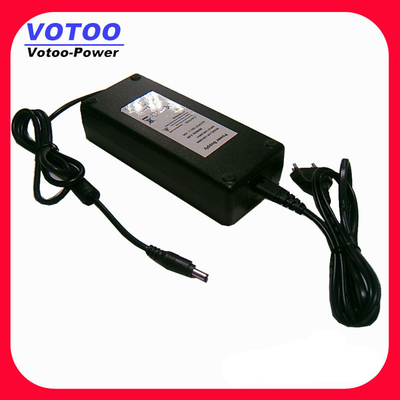

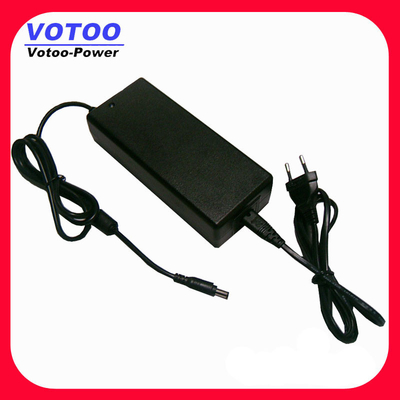

AC To DC 12V 12A Desktop Switching Power Supply / Laptop Power Adapter

Product Details:

Place of Origin:	China
Brand Name:	VOTOO
Certification:	CE,ROHS
Model Number:	VP-12012000

Contact Now

Detailed Product Description

High Light:

dc power supply adapter

external ac-dc power supplies

AC To DC 12V 12A Desktop Switching Power Supply / Laptop Power Adapter

Quick Detail:

AC To DC 12V 12A Desktop Switching Power Supply for home appliance
Type: Desktop
Material: ABS
AC plug: EU,US,AUS,UK,CN etc.
Dc plug: 5.5*2.1mm,5.5*2.5mm,3.5*1.35mm, micro/mini usb etc.
Certificate: CE & RoHS
OEM/ODM welcome
12 months warranty for after-sales-service
Lead time: 15 working days led driver/power supply

Description:

Features:

o Universal Input 100~240VAC 50/60Hz

o Small volume, light weight, high efficiency.

o Cooling by free air convection.

o 100% Full load burn-in test.

o One year warranty.

o Output Voltage: 12V

o Output Current: 12A

o Power: 144W

o Ripple & Noise: 1% of Output Voltage

o Leakage Current: 0.25mA

o No load power Consumption

o Working Temperature:0-40°C Max

o Efficiency:86%Min

o Weight: 370g

o Dimensions: 119.0 x52.0 x 32.0mm

1. Usage :AC Adapter for LED light strip CCTV

2. Input :AC 100V - 240V

3. Input Frequence :50-60Hz
4. Output :DC 12V 12A

5. Output Power :144W

6 Connecter size :5.5*2.1mm

7. Line regulation (full load): ±0.5%
8. Peak- to -peak ripple: < 100MV
9. Working temperature: 0-35°C@100%,50°C@70% load
10. Setup rise hold up time: 100ms,50ms,20ms@240VAC input
11. Strong made totally compatible part
12. Over voltage protection: 115%-135% rated output voltage
13. Withstand voltage: I/P-O/P 3Kvac,1 minute
14. Over load protection: 115%-135% fold back current limiting, Auto-recovery

Specification:

OUTPUT	DC VOLTAGE	12V
	OUTPUT POWER	144W
	CURRENT RANGE	12A
INPUT	VOLTAGE RANGE	110VAC -264V AC
	FREQUENCY RANGE	50-60Hz
	EFFICIENCY(Typ.)	86%
ENVIRONMENT	WORKING TEMP.	-0°C ~ +40°C (Refer to output load derating curve)
	STORAGE TEMP.,HUMIDITY	-10°C ~ +70°C 10~95% RH
	COOLING METHOD	BY FREE AIR CONVECTION

1.Best quality:we have the most professional and experienced engineers and strict QA and QC System
2.Best Price:Products are produced in our factory,so we are entitled to control the quality well and reduce the cost to offer more competitive price and excellent quality.
3.Strong production capacity:over 200000 pieces per months.
4.Prompt delivery time:3-5 working days.
5.Professional technological team: Your tailored/customized connectors and package are welcome.
6.Good after_sales service: 1 year warranty.
7.Leading supplier:we have more than 10 years experiences in power supply industry.

How to Install?

Before connecting check whether the power supply fullfields electrical specification (output voltage and current). Also check the socket type and its polarity.
Connect power supply to the supplied unit.
Power supply must be connected to a working electrical AC line with a voltage of 100-240V.
Do not install power supply in locations with high humidity, dust or strong direct sunlight.
The power supply should be installed in a location with good airflow.
Power supply can only be installed indoors.
AC wire should connect tight with adapter socket, in case poor contact socket.
