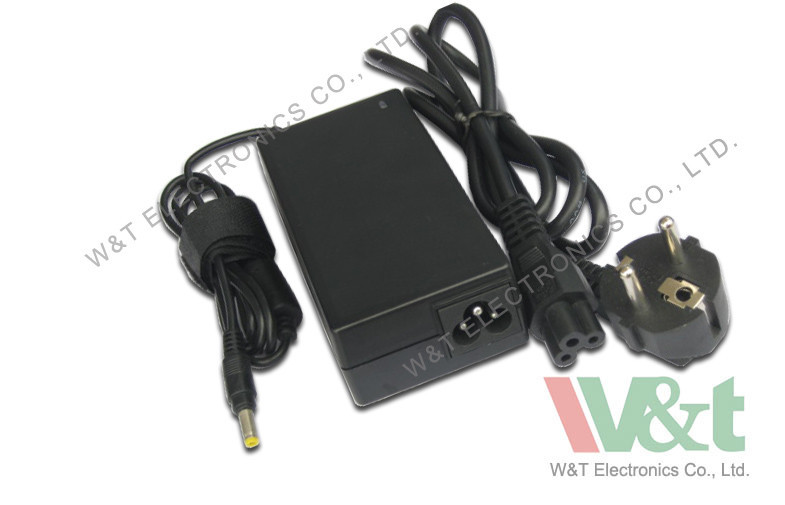

High Efficiency 18W 30W 24V Desktop Switching Power Supply LED For LED Driver
15W/18W/24W/30W/60 desktop type LED Driver for Projection light,24V/12V Output,worldwide use 100-240VAC input CC+CV Mode
Quick Detail:
15W/18W/24W/30W W&T Wall mounted Series, LED POWER SUPPLY,
Input voltage: 100V-240V AC, 50/60Hz
Range voltage: 86V-265V AC, 47-63Hz
Output power: 15-60W
Output voltage: DC 3.0V ~ 24.0V
Output current range: 500MA~4000MA
Output Voltage Ripple&Noise : Output Voltage 1% MAX
Efficiency: 76% MIN
M.T.B.F.: 50000H
Plug in: UK ,US, EU, AUS, JP and KC,CCC plug
High efficiency power, High Reliability (Ultra low no-load /standby power consumption)
Ultrasonic Lamination
Natural Cooling
Meets "ENERGY STAR" program requirement
Over voltage protection
Over load & short circuit protection
100% full load burn-in test
Energy Efficiency: Efficiency level V
Meet CEC, Reach and MEPS standard
Rohs compliant
Safety:
PSE UL CUL CE GS KC FCC TUV CB BS CCC
Application:
It’s suitable for an extremely wide range of applications, including:
Suitable for LED lighting and moving sign applications
CC mode for LED driver
LED Stage lamp ,
LED lighting lamp and advertisement lamp
Equipment LED and daily LED products
LED street lamp and industry LED lighting products
Furniture LED products
Specification:
|
INPUT |
Voltage |
90-264VAC universal full range |
||||
|
Frequency |
47-63Hz |
|||||
|
Current |
＜0.5A@100V AC input, full load condition |
|||||
|
Inrush Current |
＜40A@115V , ＜60A@230V AC input.Cold start at 25℃ ambient |
|||||
|
Leakage Current |
＜0.5A@ 264V AC input |
|||||
|
OUTPUT |
PART NO. |
AD04WX03 |
AD04WX42 |
AD04WX05 |
AD04WX07 |
AD04WX9 |
|
Voltage |
3V |
4.2V |
5V |
7V |
9V |
|
|
Max Load |
0-0.8A |
0-0.8A |
0-0.8A |
0-0.6A |
0-0.4A |
|
|
Output Tolerance |
±5% |
±5% |
±5% |
±5% |
±5% |
|
|
Ripple Noise(MAX) |
50mV |
50mV |
50mV |
70mV |
90mV |
|
|
Efficiency(MIN) |
≥65% |
≥65% |
≥65% |
≥65% |
≥75% |
|
|
Output MAX |
0-4W |
0-4W |
0-4W |
0-4W |
0-4W |
|
|
PROTECTION |
Over Voltage |
4.8～5.8V |
6.8～7.8V |
6.8～7.8V |
9.0～10V |
10～11.8V |
|
Shutdown and latch off, recover after re-start up |
||||||
|
Over Load & Short Circuit |
When power supply over 105%～150 max load or short circuit acted,powr supply will be shutdown and recover automatically after the fault is removed |
|||||
|
Over Temperature |
Over 95℃,the power supply will shutdown. |
|||||
|
ENIRONMENT |
Temperature |
Operating:-20～70℃;De-rating:45～70℃:2.5%/℃;Storage:-40～+85℃ |
||||
|
Humidity |
Operating: 20%～90% RH(non condensing);Storage:10%～95% RH(non condensing) |
|||||
|
SAFETY |
Withstand voltage |
I/P-O/P:3KVAC,I/P-PE:1.5KVAC,O/P-PE:0.5KVAC,1 minute |
||||
|
Isolation resistance |
I/P-O/P,I/P-FG,O/P-FG>100MΩ/500VDC at 25℃/70% RH |
|||||
|
Safety standard |
UL 60950-1 2nd,CSA C22.2 No.60950-1-07 2nd,TU EN 60950-1:2006, IEC 60950-1:25005,standard, EN60335, EN61558, EN61010. |
|||||
|
EMC |
EMI |
EN 55022 CLASS B,FCC CFR 47 PART 15 CLASS B,CNS 13438 CLASS B |
||||
|
Compliance to EN61000-3-2 CLASS D,EN61000-3-3 |
||||||
|
EMS |
EN55024:EN61000-4-2,3,4,5,6,8,11 |
|||||
|
OTHERS |
Cooling |
Natural Cooling |
||||
|
M.T.B.F. |
100K hours |
|||||
|
Dimension |
58x26x42mm ( L*W*H ) |
|||||
|
Packing |
N.W.:50g/1pc; 200pcs/10.5kg CUFT/1 CTN |
|||||
|
|
Packing Size |
510*470*200MM |
||||
Mechanical spec:
