| Place of Origin: | China |
| Brand Name: | AXNEW |
| Certification: | CE/FCC/ROHS |
| Model Number: | AXD-10OPN1P1-TV3 (VGA/DVI) |
| Minimum Order Quantity: | 10 Pieces |
|---|---|
| Price: | Depends on product and order quantity |
| Packaging Details: | 5 Pcs /Carton with firm foam |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T, Paypal, Western Union |
| Supply Ability: | 2000 pieces/month |
| Screen Size: | 10.4 Inch | Pixel: | 800x600 |
|---|---|---|---|
| Contrast Ratio: | 500:1 | Brightness: | 400cd/m^2 |
| Input Signal: | VGA/DVI | Viewing Angle: | 160(H)/140(V) |
| Monitor Type: | Backlight | Application: | Gaming|Medical|outdoor|CCTV |
| High Light: | high definition LCD Monitor,industrial lcd touch screen monitor |
||

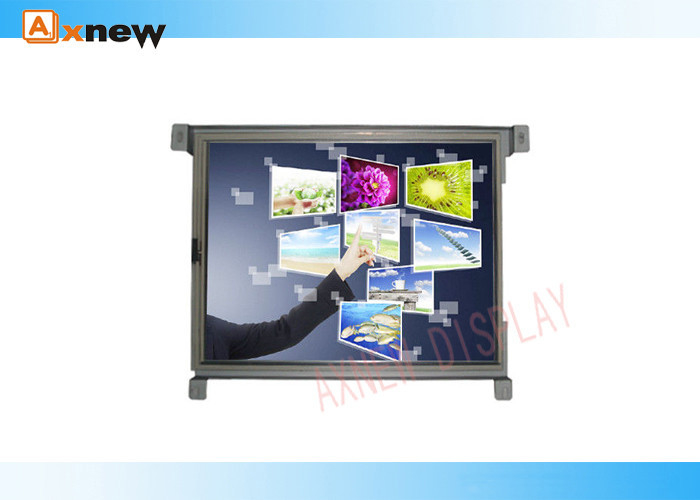

Open Frame LED Backlight LCD Monitor 4:3 Resistive TFT Touch Screen
10.4 inch 400nits open frame monitor with LED backlight , long use life with low consumption. 10.4 4:3 format industrial monitor with resistive touch screen is used for Automatic equipments, Gas Station ,Advertising , vending embedded system, ATM application etc.
Quick Details:
|
Model:AXD-10OPN1P3-TV3 |
Screen Size:10.4’’ |
|
Screen format: 4:3 |
Display Resolution(pixel):800x600 |
|
Contrast Ratio:500:1 |
Brightness:400cd/m^2 |
|
Storage temperature : -30℃~80℃ |
Input signal: VGA DVI |
|
Power Input: AC100~240 V /DC 12V |
Product status: In production |
|
Features and Advantages |
|
1.New and Industrial A grade perfect panels with wide temperature |
|
2. industrial control board supports the displays working 24 hours |
|
3. Professional and industrial hardware and parts to guarantee its working normally in rough environment |
|
4.Open frame design to protect the LCD screen, 400nits with LED backlight |
|
5. VGA DVI interfaces ; industrial resistive touch panel USB interfaces |
|
6. 10.4 inch open frame led monitor with touch screen for application control , advertising player ,campus and industrial terminals etc |
|
Display Specifications |
|
|
Display |
10.4" Color TFT Touch LCD monitor |
|
Model Name |
AXD-10OPN1P3-TV3 |
|
Active Display Area (mm) |
211.2 (H)x158.4(V) |
|
Pixel Pitch (mm) |
0.264(H)x0.264(V) |
|
Resolution (Pixel) |
SVGA (800X600) 16.2M Color |
|
Brightness (CD/m^2) |
400cd/m^2 |
|
Contrast Ratio |
500:1 |
|
Viewing Angle (CR >=10) |
160/140 |
|
Power consumption |
4.52W typical, normal operation |
|
Touch Screen |
Resistive;RS232/USB(Optional) |
|
OSD Control |
On the back side |
|
I/O Connectors |
1x12v,1XVGA,DVI-D |
|
Power Input |
DC 12V,4A 48W |
|
Mechanical Specifications |
|
|
Construction |
rugged open frame with edge fixings |
|
Dimensions |
260 x 215x30 (mm) |
|
Mounting |
Embedded, edge fixing |
|
Power source |
AC 100~240V/ 12V DC |
|
Environment Specifications |
|
|
Operating Temperature |
-20~70℃ |
|
Storage Temperature |
-30~80℃ |
|
Rating |
Facilitate installation of the demolition,solid portfolio |
Packaging & Delivery
|
Packing details |
1x 10.4 inch Touch Screen Monitor; Packed in 5 pieces/carton with protection foam
Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter |
|
Delivery terms |
7- working days for stock products after receiving payments; 15 working days for order production |
