| Place of Origin: | Shenzhen China |
| Brand Name: | DongDaHua |
| Certification: | CE & ROSH |
| Model Number: | S-25-12L |
| Minimum Order Quantity: | 10 |
|---|---|
| Packaging Details: | As for your requirement |
| Delivery Time: | As per your order quantity |
| Payment Terms: | T/T & L/C |
| Supply Ability: | 8000 Pieces/Day |
| High Light: | LED Power Supply Driver,Power Supply for LED |
||
|---|---|---|---|

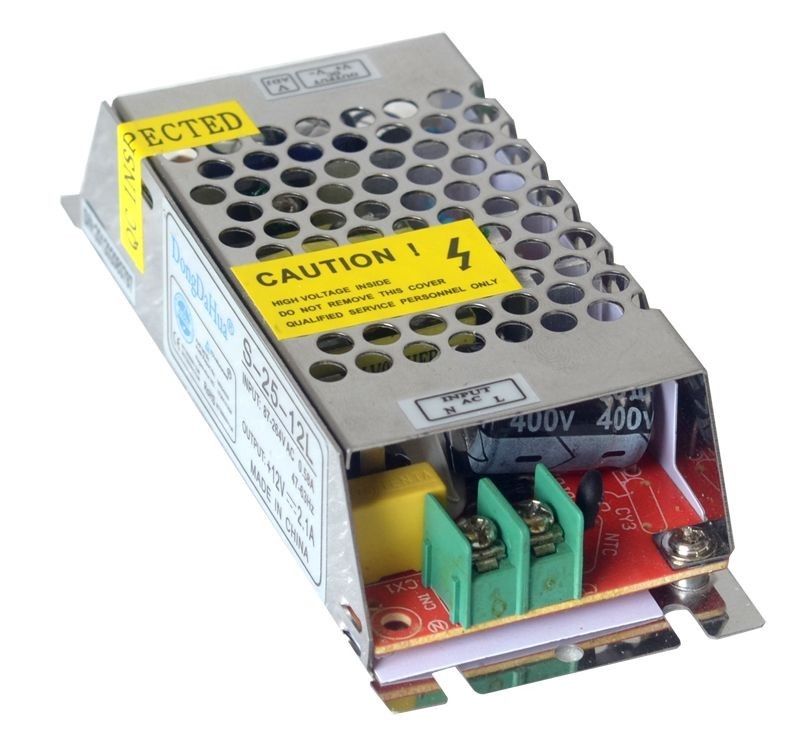

Low Ripple Open Frame Built-in 12 Volt LED Power Supply 25W
Competitive Advantage:
· The most thiner structure , built-in EMI filter
· 100% load test
· Full range of input voltage
· output voltage accurate and stable
· Output over-voltage, over-current and short-circuit protection
· Output low ripple and noise
· Two year warranty
· Average working no trouble ＞50, 000 hours
Specifications:
|
Product Electric Parameters |
|||
|
Input specification |
Input voltage |
AC90V---264V |
|
|
Input frequency |
47-63Hz |
||
|
Input surge |
20A@120VAC 40A@230VAC |
||
|
Output specification |
Start-up time |
≦1S (230V Input, Io=100%) |
|
|
keep time |
≧20mS (230V Input, Io=100%) |
||
|
Voltage regulation |
(full)≦0.5% |
||
|
Protection function |
Overload protection |
105% - 150% rated power, automatic recovery |
|
|
Over-voltage protection |
105% - 150% of the rated voltage |
||
|
Insulation intensity |
Input---output |
1500VAC/1min |
|
|
Input--ground |
1500VAC/1min |
||
|
Output---ground |
500VAC/1min |
||
|
Safety standards |
According with GB4943, EN60950-1 ; EPA3050B:1996; EN1122:2001 ; EPA3052:1996; EPA3060A; EPA7196; EPA3540C;EPA8270C standards. |
||
|
E M C standards |
According with EN55022 class A EN61347-2-13:2008 standards |
||
|
Environmental |
working temperature |
- 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost) |
|
|
Storage temperature |
- 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost) |
||
|
height above sea level |
≦2000M |
||
|
Structure |
Size (mm) |
115(L)*28(W)*27(H) |
|
|
Cooling method |
Cooling method |
Natural cooling air convection |
|
|
Weight |
0.15KG/PCS |
||
