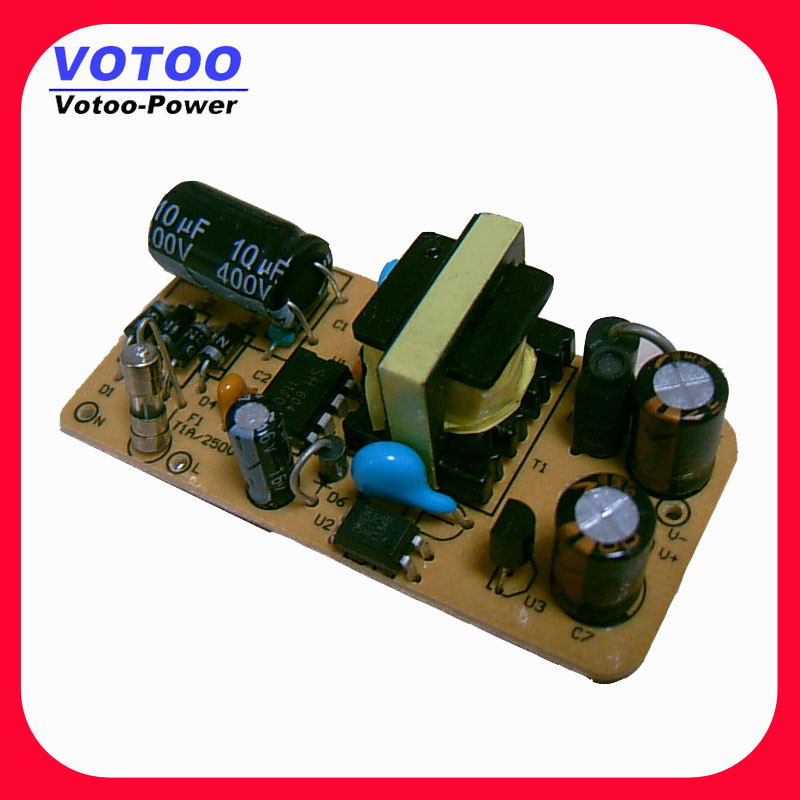

AC / DC 12W 12V 1A Open Frame Power Supply , 1000mA Electronic Power Supply
Quick Detail:
-
50,000 hours MTBF
-
Full range input for all units
-
100% burn-in before shipping
-
Ripple & Noise: 1% of output voltage
-
Material:plastic materials
-
OEM/ODM welcome
-
Certificate: CE & RoHS
Features:
o Universal Input 100~240VAC 50/60Hz
o Small volume, light weight, high efficiency.
o Cooling by free air convection.
o 100% Full load burn-in test.
o One year warranty.
o Output Voltage: 12V
o Output Current: 1000mA
o Power:12Watt
o Ripple & Noise: 1% of Output Voltage
o Leakage Current: 0.25mA
o No load power Consumption
o Working Temperature:0-40°C Max
o Efficiency:78%Min
o High Efficiency
o Short Circuit Protection
o Over Voltage Protection
o Over Current Protection
o Green Circuit Design
Weight: 75g
o Dimensions: 70.0 x40.0 x 29.0mm
o Accurate information and descriptions.
o All orders are shipped on time.
o All items are fully inspected prior to shipping to meet international standards by our QC staffs.
o All items are with CE RoHS approval to ensure the products quality.
Specification:
|
OUTPUT
|
DC VOLTAGE
|
12V
|
|
OUTPUT POWER
|
12W
|
|
CURRENT RANGE
|
1000mA
|
|
INPUT
|
VOLTAGE RANGE
|
110VAC -264V AC
|
|
FREQUENCY RANGE
|
50-60Hz
|
|
EFFICIENCY(Typ.)
|
78%
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-0°C ~ +40°C (Refer to output load derating curve)
|
|
STORAGE TEMP.,HUMIDITY
|
-10°C ~ +70°C 10~95% RH
|
|
COOLING METHOD
|
BY FREE AIR CONVECTION
|
How to Install?
-
Connect power supply to the supplied unit.
-
Power supply must be connected to a working electrical AC line with a voltage of 100-240V.
-
Do not install power supply in locations with high humidity, dust or strong direct sunlight.
-
The power supply should be installed in a location with good airflow.
-
Power supply can only be installed indoors.
Applications:
1. CCTV security, door access, digital camera, etc.
2. POS machine, mini printing machine, etc.
3. Electronic scale, flowerpot etc.
4. LED strip, LED lighting etc.
