| Place of Origin: | China |
| Brand Name: | Merrytek |
| Certification: | CE |
| Model Number: | ML75V-T |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Packed in bubble bag firstly, and then reinforced with carton for outer packing |
| Delivery Time: | 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit. |
| Supply Ability: | 10,000pcs per month |
| Output Current: | 6.25A Max | Product Name: | 75W/12Vdc Traic Dimmable Led Driver |
|---|---|---|---|
| Input Voltage: | 220-240Vac | Output Voltage: | 12Vdc |
| Dimming Mode: | RC Traic | Output Load: | 75W Max |
| Working Temperature: | -25℃-50℃ | Isolation Class: | Class II, SELV |
| Approvals: | CE | Protection Class: | IP20 |
| High Light: | 24v constant voltage led driver,75w led driver |
||

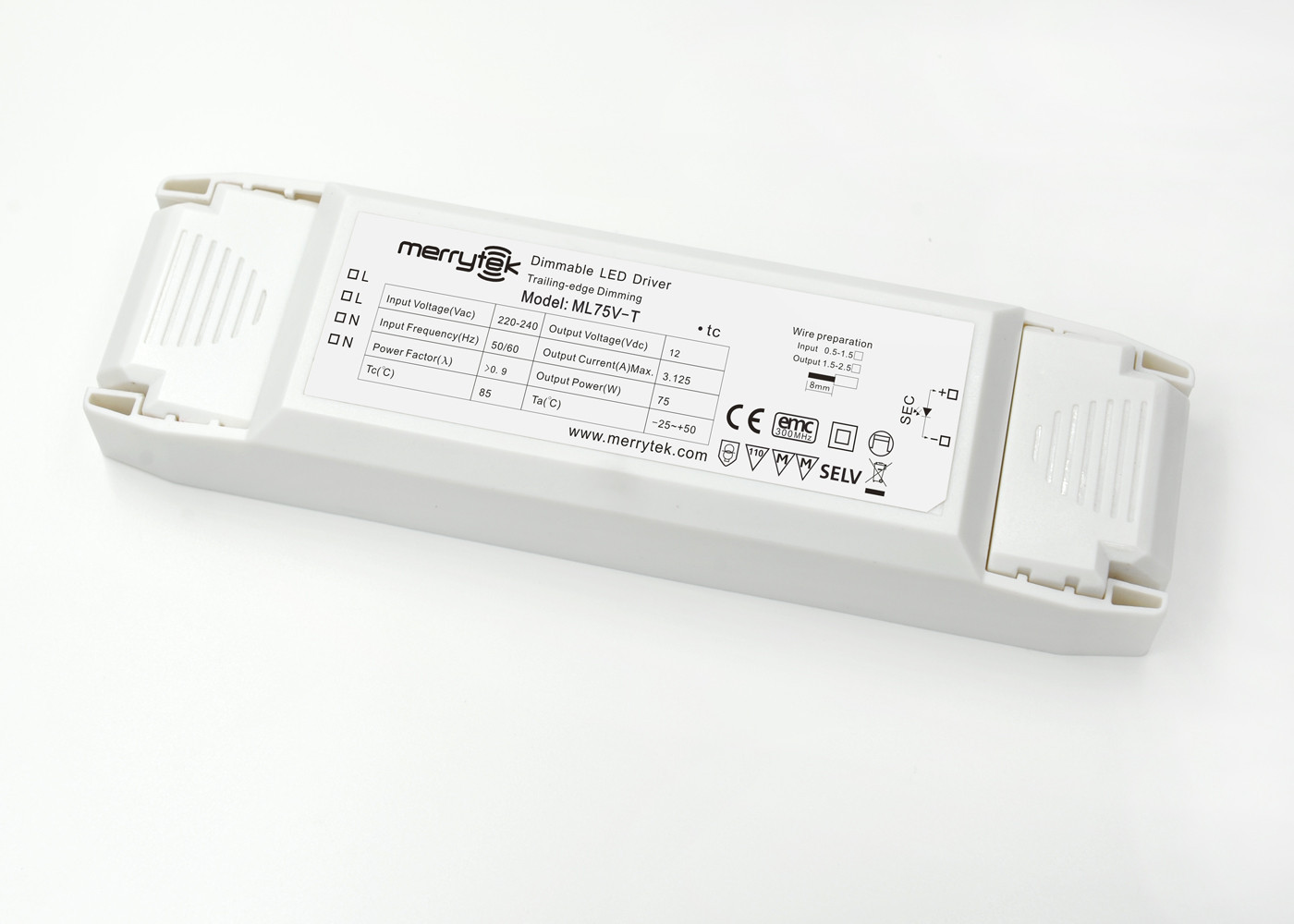

High Power 12V Constant Voltage Dimmable LED Driver Non Flickering
Description:
1, Constant voltage 12Vdc
2.The output load is 75W max
3. The triac dimmable led driber mainly works for led strip
4. The trailing -edge dimming , cpmpatible with popular dimmer in Euro.
5. Compatible with dimmer: Scandinavia market- Schneider SBD615RC; Deutsch market- JUNG 225 T; DEBERKE 2874; BUSCH 6513 U-102; GIRA 0307 00
6. Protection: Short circuit / Over voltage / Over temperature.
7. Dimming range: 10%-100%
8. without flickering
Specifications
|
Input |
Input voltage |
220-240Vac, 50/60Hz |
|
Power factor (PF) |
≥0.9(@ 240Vac input, full load and without dimmer) |
|
|
Efficiency |
≥82%(@ 240Vac input, full load and without dimmer) |
|
|
No-load power |
≤1.5W |
|
|
Output |
Output Voltage |
12V DC |
|
Output Current |
6.25A max. |
|
|
Voltage accuracy |
±5% |
|
|
Rated power |
75W Max. |
|
|
Dimming |
Dimming mode |
Trailing edge dimming |
|
Dimming range |
10%-100% |
|
|
Environment |
Working temperature |
-25℃~50℃ |
|
Storage temperature |
-40℃~80℃ |
|
|
Safety and EMC |
Insulation class |
Class II, SELV |
|
Withstand voltage |
Input-Output: 3.7kVac/5mA/1min |
|
|
EMC |
Compliance to EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61547 |
|
|
Safety |
Compliance to EN61347-1, EN61347-2-13 |
|
|
Protection |
Short circuit |
Protection mode: Auto recovery |
|
Over temperature |
Protection mode: Auto recovery |
|
|
Others |
Dimension |
220x58x40mm |
|
Enclosure |
Plastic, white |
|
|
IP rating |
IP20 |
|
|
Connection |
Input: 4-hole press-in type terminal(L, L, N, N) Output: Screw terminal block (LED +, LED -) |
|
|
Life time |
30,000h |
|
|
Certification |
CE |
