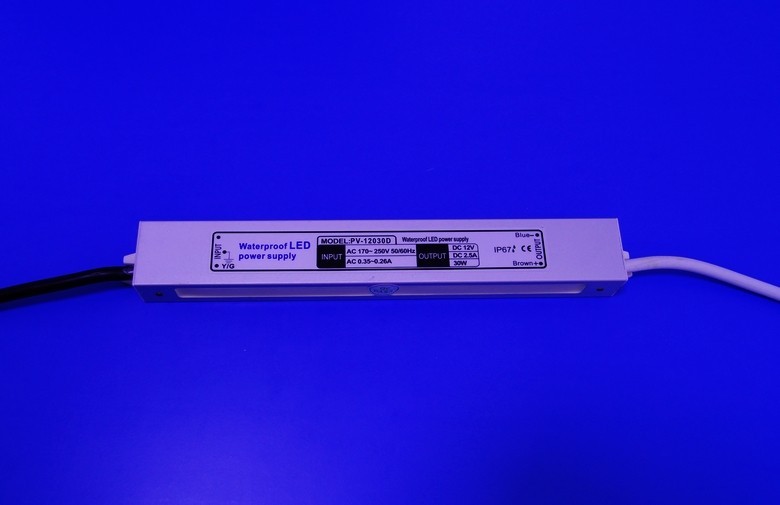

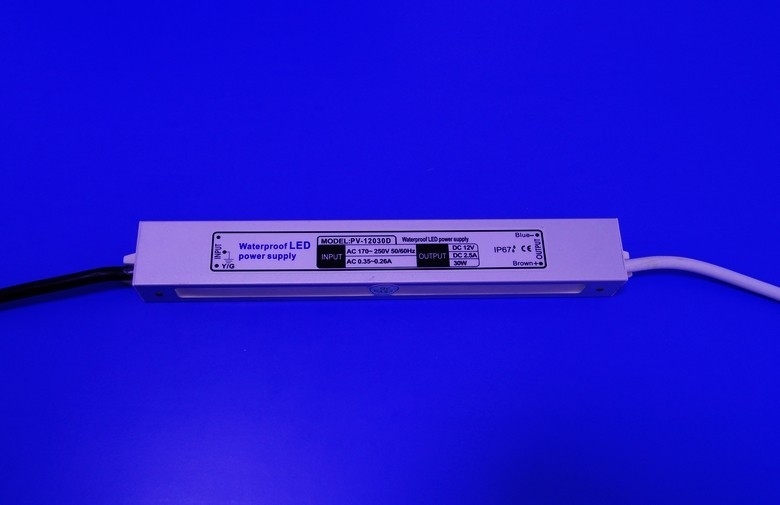

waterproof LED power supply

30W LED power supply 12V constant voltage for LED Strip , Wall washer Light

Quick Detail:

1. Model No.: S-30W-12V
2.  Appearance Dimension: 180(L)*30(W)*20(H)mm
3. N.W.:180g
4. Canning Material: Aluminum
5. Input voltage :AC110V/220V 50-60Hz
6. Output voltage :12V ±2％DC
7. Output current : 1.67A±0.5％
8. IP65 Approved

Description:

1 Environmental Conditions

1.1 Operating Temperature: -10℃～+50℃, 20%～95%RH(without condensation)

1.2 Storage Temperature: -20℃～+85℃, 20%～95%RH(without condensation)

2.3 Relative Humidity: 0.02～0.05%/℃

3.4 Heat-dissipating Method: Natural Cooling / Fan Cooling / Blower Cooling

2. Input Features

2.1 Rated Input Voltage Range:220VAC

2.2 Input Voltage Range: 110/220VAC±15%

2.3 Input Frequency Range:50～60Hz(except Dc input)

2.4 Input Under-voltage Protection:115～150% interim mode

2.5 Input Under-voltage Recovery: Automatic recovery

2.6 Input Over-voltage Protection:115～150% interim mode

2.7 Input Over-voltage Recovery: Automatic recovery

2.8 Impact Current ≤1% (the highest input voltage full load)

2.9 Overall Efficiency ≤0.5% (rated input full load)

3. Output Features

3.1 Output Voltage Range: 12V±2％(Dual Outputs)

3.2 Output Current Range: 1.67A±0.5％(Dual Outputs)

3.3 Ripple & Noise(mVp-p)≤200 mVp-p

3.4 Rise Time≤50 ms/230V AC

3.5 Output Delay≤S

3.6 Voltage Adjustment Rate≤0.5％

3.7 Load Adjustment Rate≤1%

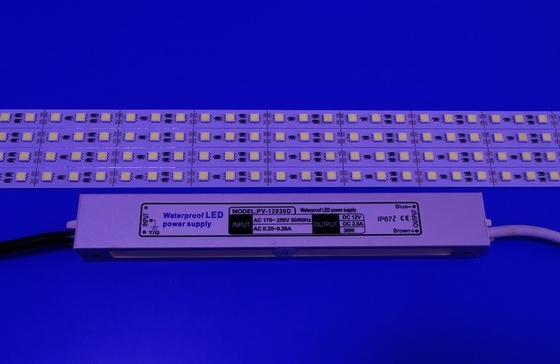

Applications:

General Illumination

- Outdoor & Indoor architectural lighting

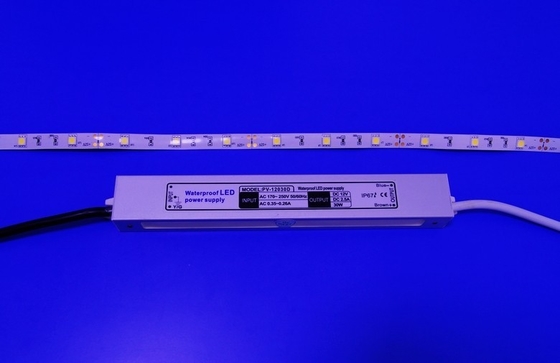

- Decorative lighting ,led strips

- Flood lighting,cast light lamps

- Street lamp,Tunnel lamp

- Replace the old equipment

Specifications:

Shipping and delivery time:

Competitive Advantage:

1 . Output Over Current Protection: Current drooping type

2. Output Short Circuit Protection: IGBT

3. Output Over-voltage Protection: Soft start protection

4. Reliability Requirements

5. MTBF:50,000 HOURS

6. Annual Repair Rate＜0.3%
