switching power supply

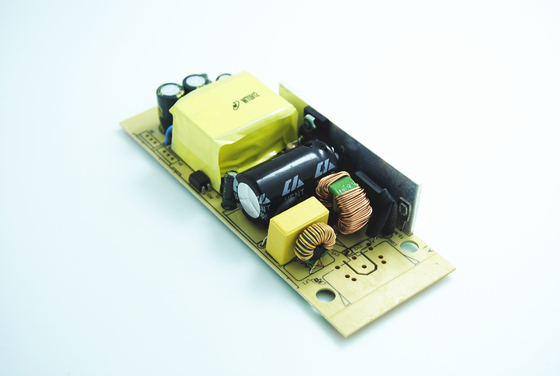

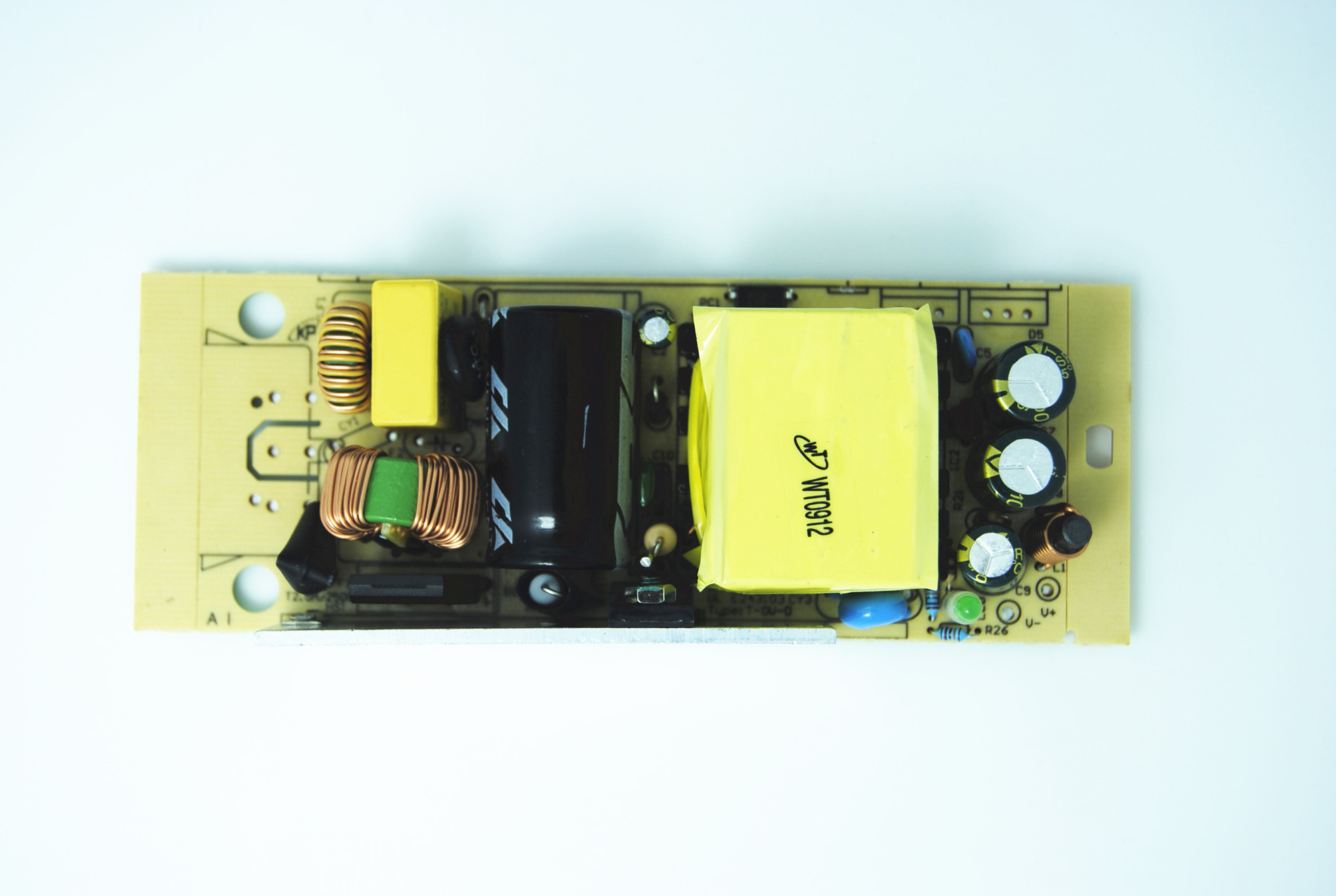

50 / 60Hz 60W 24V 2.5A Output AC - DC Universal Open Frame Power Supply

Quick details:

• Input voltage: 100 to 240V AC, 50/60Hz
• Output voltage/current: 24V 2.5A
• Output Power: 60W

Description:

1. Surface cosiness,small size and convenient carrying

2. Low cost,high reliability and all cases are covered by ultrasonic

3. Built-in OVP,OCP and SCP

4. Universal input voltage:

• a. I/P voltage 100-240VAC;50/60Hz
• b. Turn on delay time≤3s
• c. Inrush current≤30A/24V AC

5. O/P:

• a. High accuracy and low noice
• b. Hold up time ≥20mS

6. Operation model: CV

7. Environment:

• a. Operation temperature:0°C-40°C;5%-90%RH
• b. Storage temperature:-20°C-85°C;5%-95%RH

8. Cooling:Natural cooling

9. Energy standard:CEC/ERP

10. Safety standard:IEC/EN60950

11. Insulation: hi-pot, 3,000V AC 60S 10mA

12. Leakage current: 0.25mA (maximum)

13. MTBF: MIL-HDBK-217F, full load, 25, more than 50,000 hours

14. RoHS compliant

Our Advantages:

• Professional&experienced engineers
• Good quality
• Competitive price
• Intime service
• Free samples available
• About 10 years experiences
• OEM/ODM services are highly welcome
• Flexible to meet dynamic requirements
• High technology
• Short Lead time
• AC input power suitable for the world
• Soft-start current can reduce the AC input impact efficiency
• With short-circuit and overload protection
• Compact size ,light weight
• 100%full-load burning test
• Installed with EMI filter ,minimum wave

Some Using Details:

• Do not install power supply in locations with high humidity, dust or strong direct sunlight.
• Connect power supply to the supplied unit.
• Power supply must be connected to a working electrical AC line with a voltage of 100-240V.
• Power supply can only be installed indoors.
• The power supply should be installed in a location with good airflow.
