1.Features of waterproof led driver LPS-24E100:
Universal AC input/Full range;
Constant voltage output led driver
Protections:Short citcuit/Open circuit/Over current/Over load/Over voltage/Over temperature;
IP67 led driver designed for outdoor signage, decoration,lighting applications;
Compliance to worldwide safety regulations for lighting;
Aluminum housing led driver
Suitable for dry/damp/wet locations;
Two year warranty.
2.Specifications of waterproof led driver LPS-24E100:
| Model no. | LPS-24E100 |
| Output type | Constant voltage |
| Input voltage | 170-250VAC 50/60Hz |
| Built-in active PFC | No |
| Power factor | Low |
| Power | 100W max |
| Output voltage | 24V DC ±5% |
| Output current | 4.17A max |
| Over load protection | 105%-120% hiccup mode, auto-recovery |
| Over voltage protection | 120% rated output voltage |
| Short circuit protection | Hiccup mode, recovers automatically after fault condition is removed |
| Operating temperature | -25~40℃ |
| Installation | outdoor |
| IP rating | IP67 |
| Cooling | Free air convection |
| Certificates/standards | CE,SAA |
| Dimensions(L*W*H) | 243*67*50mm |
| Weight(kg) | 1.04 |
| Packing information | 10pcs/carton, 11.5kg |
3. Deatails of led power supply：100W 24V

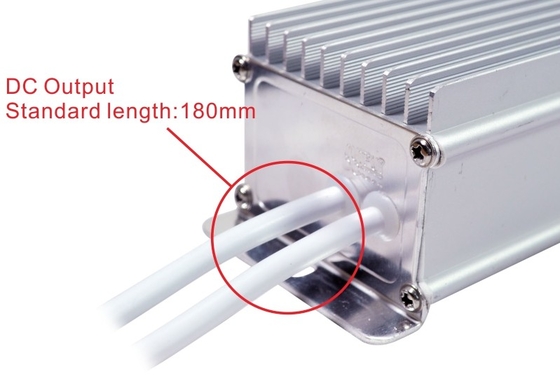

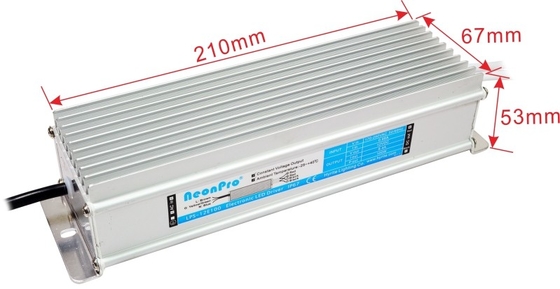

Including sizes, output wires and packings.
4. Packing detailsled power supply：100W 24V 10pcs/carton
5.Projects around the world:
our projects covering banks, shops and buildings all over the world.
6.Our factory and production line:
Hyrite is a professional manufacturer of led power supply and led module. We have more than 20 years experience in design, development and manufacturing of electronic power supplies. Including waterproof /rainproof/indoor led power supply for led module, strip, flex ribbon, bar light, spot light, down light, wall washer, panel light, etc……
(1) Office show
We have more then 300 staffs in our company and cover an area of 15000㎡ in Guangdong ,China with additional office in the USA
(2)Professionnal testing machine: SMT, Burn-in test machine......
(3) Production lines:
There are 12 production lines in our factory.
7. Certifications and standards:
CE, UL for North America , SAA for Australia, TUV, Rohs, ISO, SASO forSaudi Arabia,EMC, PF
8.Our Exhibitions:
Sign China; LED China;Guangzhou International Lighting Exhibition; Shanghai Int'l Lighting Expo;Light India;Hong Kong International Lighting Fair.......
Contact us any time!
Hyrite lighting Co.
Tel:+86-0757-81200188-315
Fax:+86-0757-81200369
